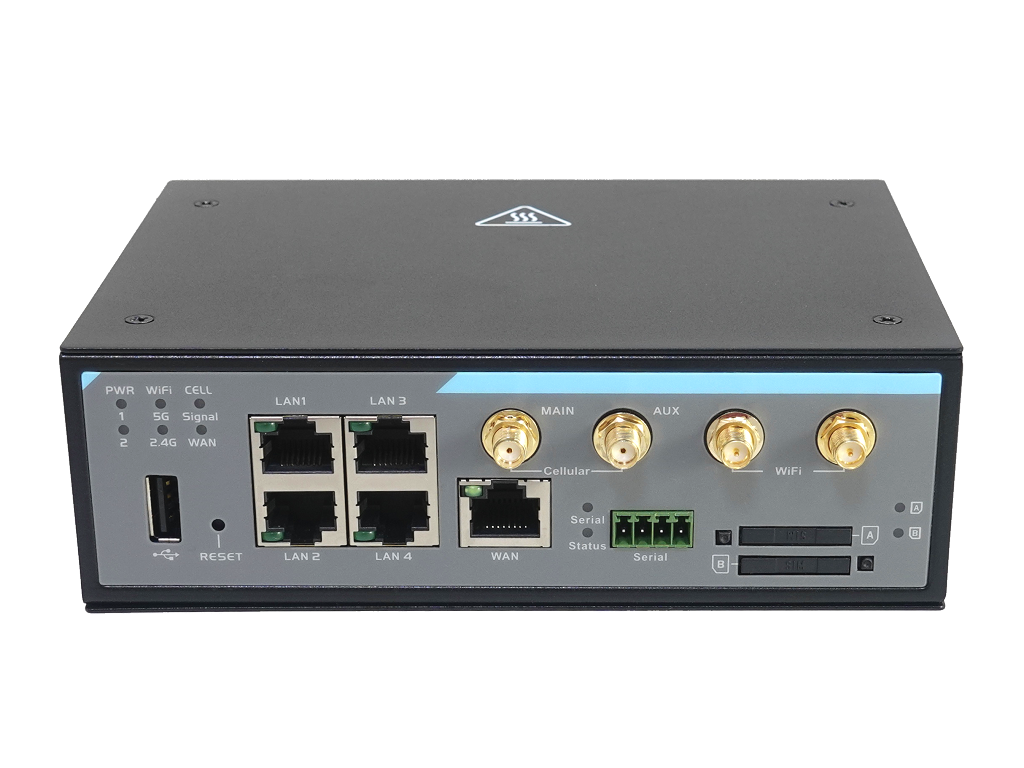

IOG851-0T041


IOG851-0T041

  • Dual SIM LTE Cat.4, 1*RJ45 GE WAN
  •  4(5)*Gigabit Ethernet, 1*WiFi 11n/ac 2T2R
  •  1*RS232/485, 1*DI+1*DO
  •  1*USB
  •  Metal Housing, DIN-Rail / Bracket
  •  Dual DC 12~48V TB, -30°C ~ 70°C

Datasheet

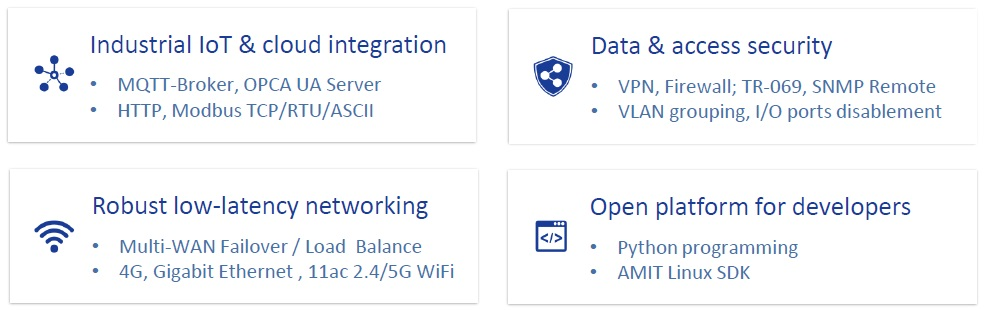

Overview

The IOG851 is optimized to acquire, process and filter large amount of real-time data.
It creates secure IIoT system and enables cloud integration providing full operational
control over field devices from any place in the world. The cost-effective industrial network
solution is easy to scale connecting wide range of assets as systems, logic controllers, actuators, and sensors.

Applications:

Industrial IoT and networking
System cloud integration
Smart City and ITS
Remote monitoring

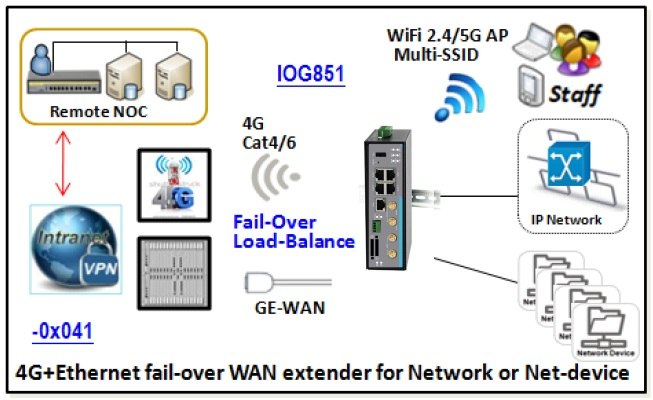

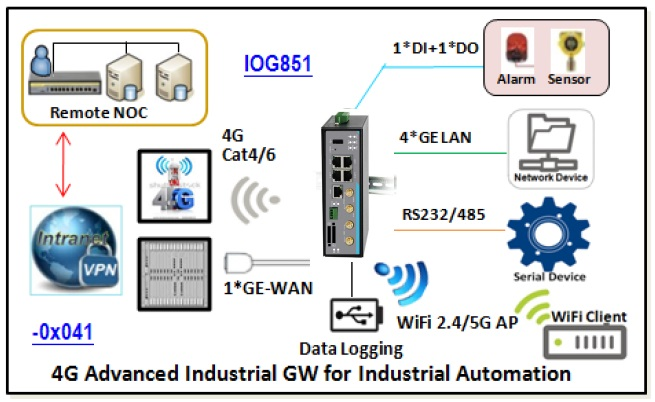

Diagram

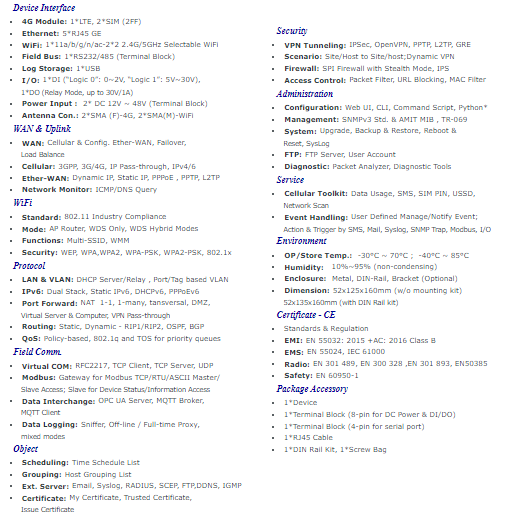

Specifications
