IOG761-0G2B3

• 1*4G/5G (2*SIM)
• 3(4)*RJ45 GbE
• WiFi 5 2T2R DBDC
• 1*RS232 Full + 1*RS232 Lite/485, 1*DI+1*DO
• 1*USB 2.0
• 1*DC 9~36V(TB)

Datasheet

Overview

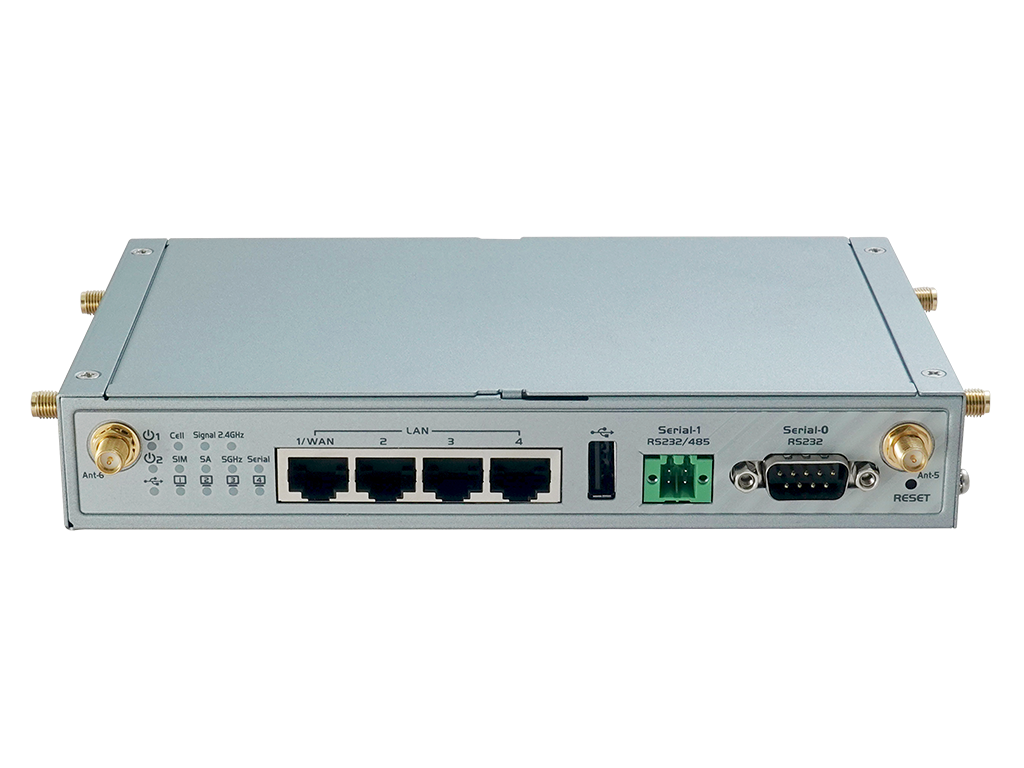

IOG761-0G2B3

As 5G technology growing up, the next generation cellular 5G makes new features of the network with higher bandwidth and lower latency. IOG761-0G2B3 is an IIoT gateway for 5G network. It has gigabit level via 5G and fixed ether-net. The IOG761 is optimized to acquire, process and filter large amount of real-time data. It creates secure IIoT system and enables cloud integration providing full operational control over field devices from any place in the world. The cost-effective industrial network solution is easy to scale connecting wide range of assets as systems, logic controllers, actuators, and sensors.

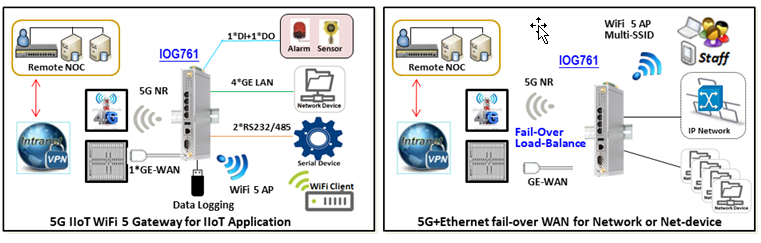

Diagram

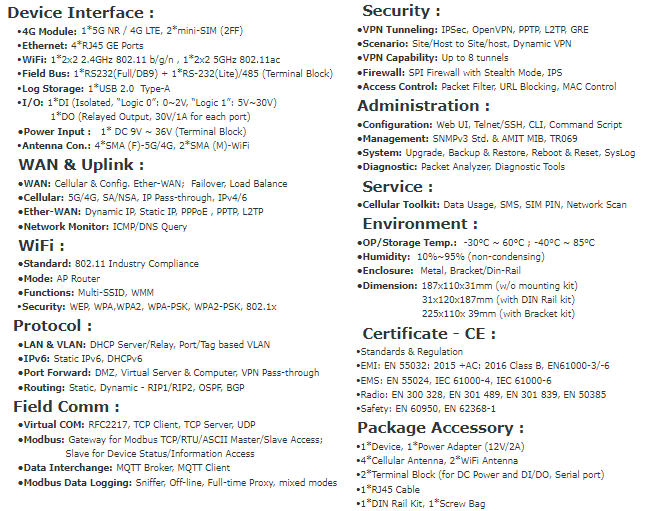

Specifications
