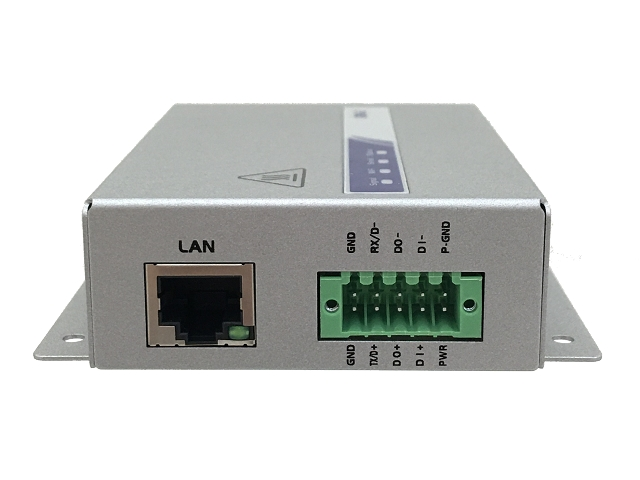

IOG500-0T112

IOG500-0T112

•  4G (2*SIM)
•  1*RJ45 FE
•  WiFi 1T1R 2.4GHz
•  1*RS232/485, 1*DI+1*DO
•  Metal Housing, Wall Mount
•  DC 9~36V (TB)
• -30°C ~ 70°C

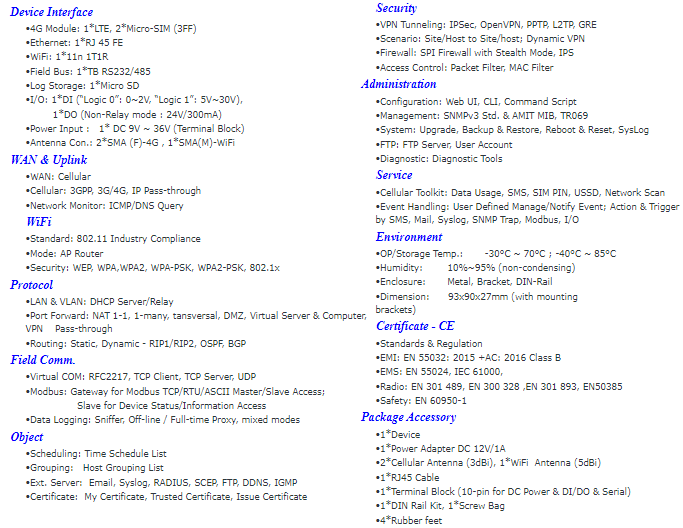

Datasheet

Location Free Telemetry at Instant

IOG500-0T112 is 4G based remote terminal unit (RTU) for machine telemetry of SCADA system. With both Ethernet and serial interfaces, It can connect to both IP based network equipment and legacy serial device. With Cellular WAN, it is non-geographic limit and can install at instant. Three are rich functions capable of performing Intelligent protocol conversion and secure data transfer. Data logging function can store field devices data for non-broken or scheduling transfer. Smart event handling allow administrator to manage system or initiate event to trigger action remotely. It can also action and notify staff when system status change.

Secure Transfer

To achieve secure transfer inside SCADA system, there  are rich protocol inside RTU. Built in both IPv4/IPv6 and routing  protocol are compatible with most ISP network. Cellular toolkit simplifies setting, utilizes ISP service and monitoring data usage. Capable of various VPN technologies, it can build tunnel with famous VPN server for scenario requirement. Friendly setting with Web UI for basic, CLI and Script window for advance requirement. Built-inTR-069 can work with AMIT-NMS  and SNMP work with popular network tools for multi-site management.

Intelligent Protocol Conversion

Built-in multiple interface, it connect to not only modern IP based equipment but also acquired legacy serial devices. It can performs intelligent protocol conversion between Modbus/TCP and Modbus/RTU/ASCII among RT/OT/IT sides. Besides to be Modbus gateway, it can also be slave for configuration or Modbus master to access device when perform data logging function.

Multi-Mode Data Logging

There is Micro SD of storage expansion for Data Logging and configuration recovery. Multi-mode data logging function can record real time data transaction of serial and I/O devices.  It can be downloaded by FTP or Web UI. It enables non-broken data transfer and data history for  Administrator’s further data analysis and statistics.

Smart Event Handling

According to pre-defined rule lists, Administrator can change gateway setting or trigger event action remotely by SMS, SNMP trap. When there is new input or behavior change of RTU, it will be new event to trigger action, and also can notify administrator or related devices by SMS or SNMP traps. It will be useful function to work as automatic process when setting one event to trigger consecutive events for special purpose  within gateway or more remote devices.

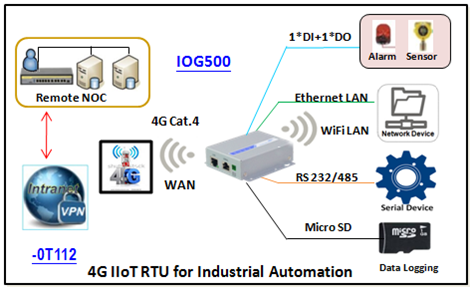

Application:
