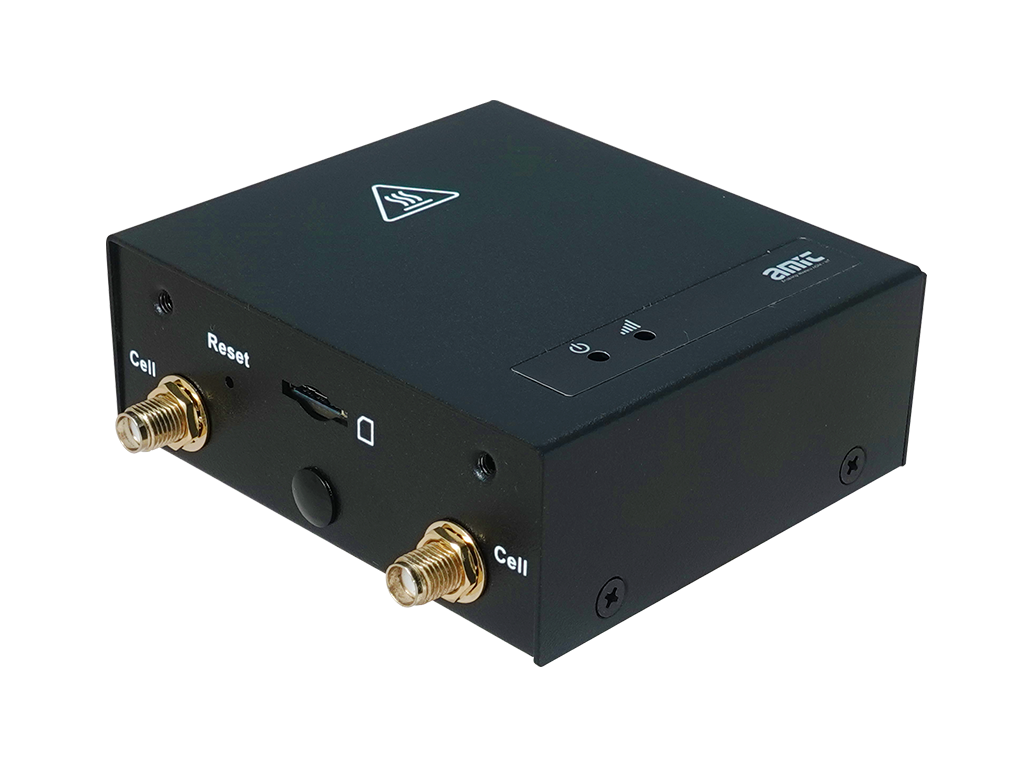

IOG400-0T301

Overview

INTRODUCTION

The IOG400 is 4G module-based remote terminal unit (RTU) for IIoT telemetry connectivity in one device. With its serial interface and DI/O connections, it supports a variety of legacy serial devices and sensors to transmit data to the remote server. It works in different deployments and meets the requirement for multi-device IIoT telemetry use scenarios.

BENEFITS

1. RS232/485 interface for serial data transmission

2. Ethernet port for IP-based device connection

3. Designed Multiple DI/O for sensor data transmission

4. DIN-Rail for easy deployment

5. Wide power input range and wide working temperature to meet site environments

6. Support AMIT device management platform- a-NMS

Diagram

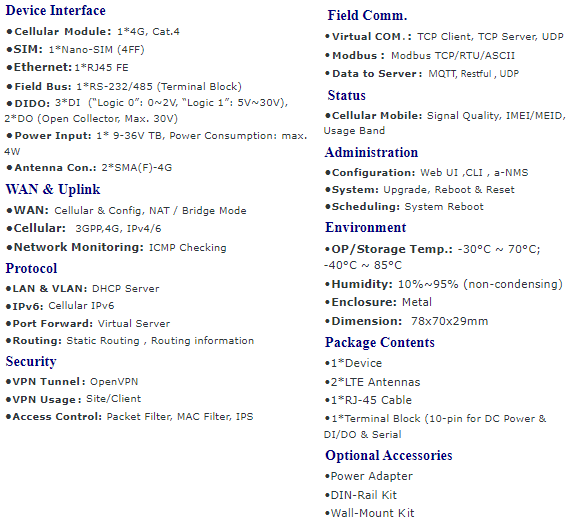

Specifications
