Industrial SLC SD Card

SD Card & MicroSD Card

128MB ~ 32GB

Features

Support static and global wear leveling
S.M.A.R.T. monitoring compatibility
Intelligent error recovery system
High-speed data transfer capabilities
Enhanced power cycling for improved reliability
30?” gold-plated contacts (gold finger)

BORN FOR SUPERIOR PERFORMANCE

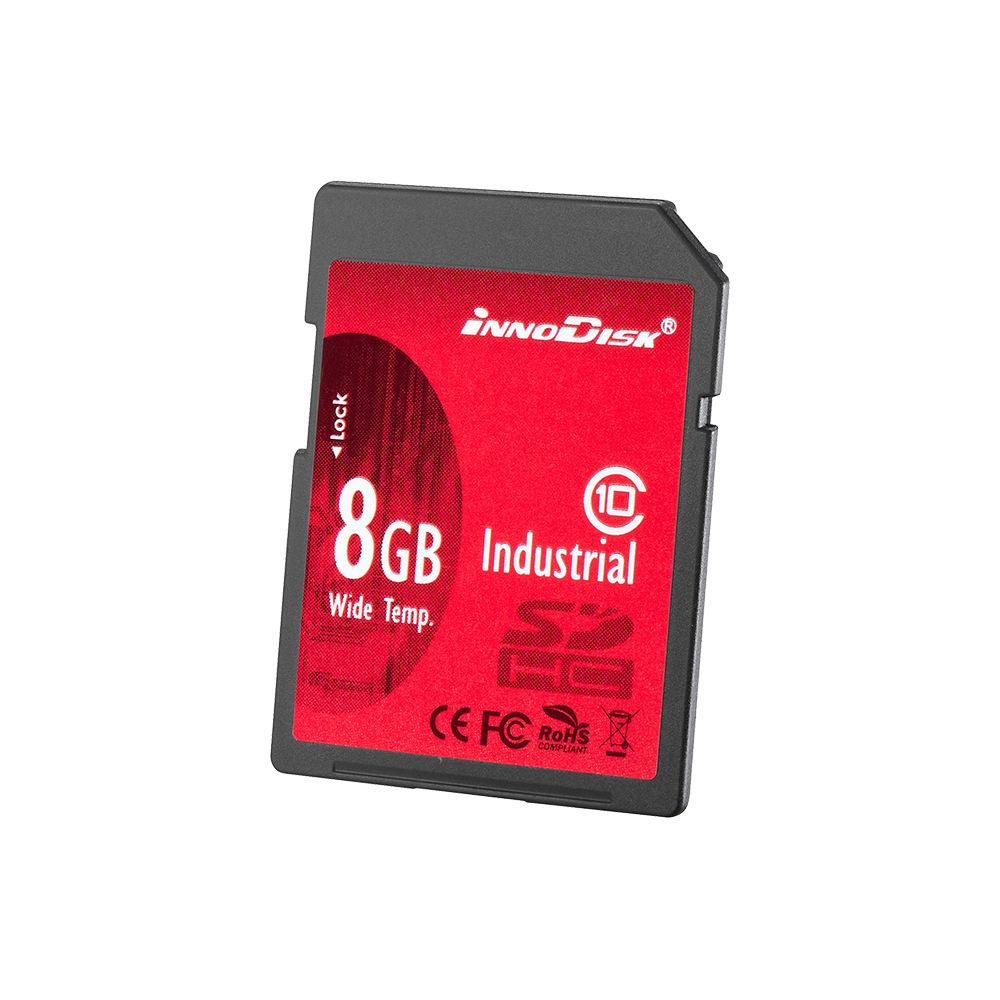

The Innodisk Industrial SD card is a slim, SLC-based storage solution designed for portable devices. A built-in ECC function can help detect and correct errors during data transfer. It is also compatible with SD 1.1 and SD 2.0 standards and supports SDHC Class 10 and SPI modes. Innodisk’s Industrial SD card consumes little power and has capacities ranging from 128MB to 32GB.

SPECIFICATIONS

Model Name	Industrial SLC SD Card
Interface	SD 1.01 / 2.00
Flash Type	SLC
Form Factor	SD Card
Capacity	128MB ~ 32GB
Sequential R / W (MB/sec, max.)	20 / 16
P/E Cycle	60,000
TBW (Max.)	--
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.2W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	24.0 x 32.0 x 2.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128MB (24nm)	DS2A-128I81C1B	DS2A-128I81W1B
256MB (24nm)	DS2A-256I81C1B	DS2A-256I81W1B
512MB (32nm)	DS2A-512I81C1B	DS2A-512I81W1B
512MB (24nm)	DESDC-512I81AC1SB	DESDC-512I81AW1SB
1GB (32nm)	DS2A-01GI81C1B	DS2A-01GI81W1B
1GB (24nm)	DESDC-01GI81AC1SB	DESDC-01GI81AW1SB
2GB (32nm)	DS2A-02GI81C1B	DS2A-02GI81W1B
2GB (24nm)	DESDC-02GI81AC1SB	DESDC-02GI81AW1SB
4GB (24nm)	DS2A-04GI81C1B	DS2A-04GI81W1B
8GB (24nm)	DS2A-08GI81C1B	DS2A-08GI81W1B
16GB (24nm)	DS2A-16GI81C1B	DS2A-16GI81W1B
32GB (24nm)	DS2A-32GI81C1B	DS2A-32GI81W1B

For more information, please contact our support.
