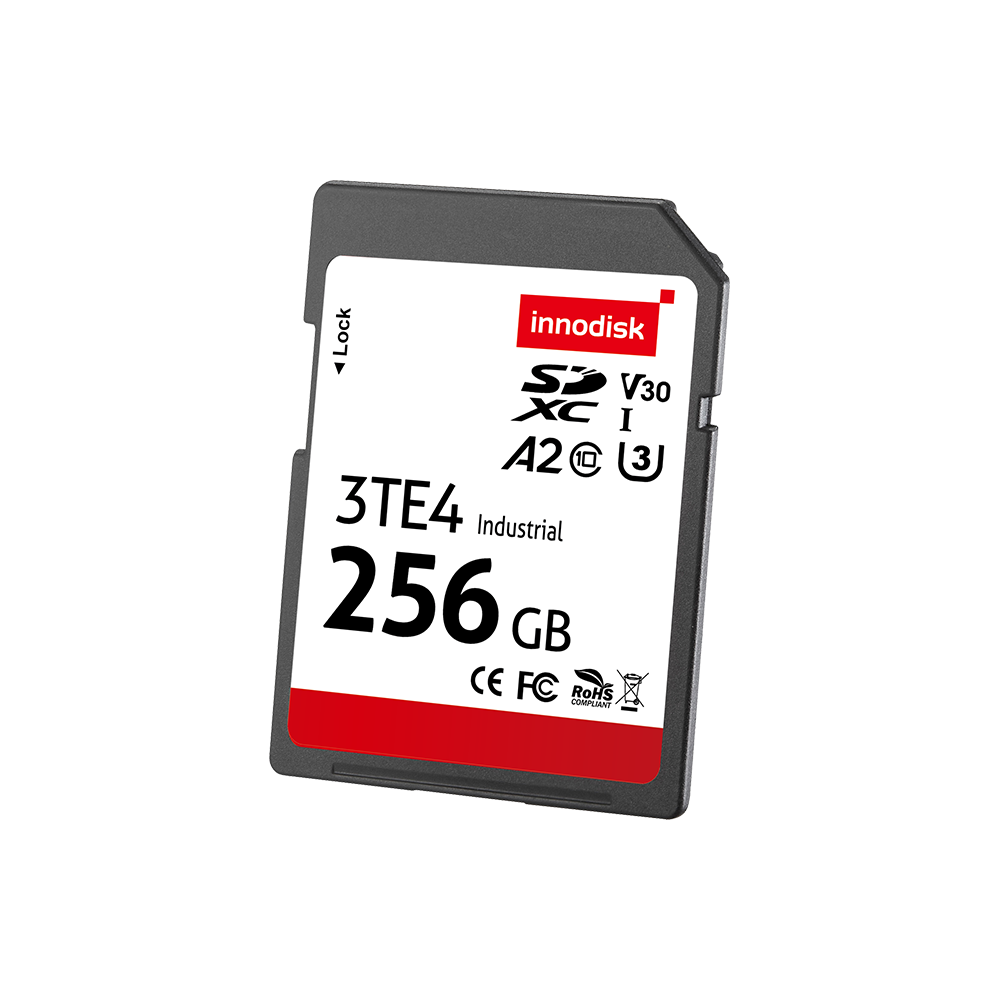

Industrial SD Card 3TE4

Card & MicroSD Card

32GB ~ 256GB

Features

SD 3.0 interface
High performance
Power fail management
LDPC ECC algorithm implement

BORN FOR SUPERIOR PERFORMANCE

Innodisk 3TE4 is an industrial-grade SD card solution with an integrated industrial controller that is designed for embedded applications. With enhanced Flash technologies and a powerful configurable LDPC ECC engine, SD 3TE4 can achieve high-speed data transfer rates.

Innodisk Industrial SD 3TE4 provides a wide range of capacities from 32GB to 256GB with 3D TLC NAND Flash, and is fully compliant with SD 3.0 and SD 2.0 specifications.

Innodisk industrial SD 3TE4 is specifically designed for industrial PC and embedded applications for high performance. With its low power consumption and the features mentioned above, Innodisk industrial SD 3TE4 can be used for industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	Industrial SD Card 3TE4
Flash Type	3D TLC
Interface	SD 3.0, SD 6.1
Form Factor	SD Card
Capacity	32GB ~ 256GB
Sequential R / W (MB/sec, max.)	90 / 80
P/E Cycle	3,000
TBW (Max.)	681
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.7W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	24.0 x 32.0 x 2.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	3 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
32GB	DESDC-32GS06EE1SL	DESDC-32GS06EW1SL
64GB	DESDC-64GS06%E1SL	DESDC-64GS06%W1SL
128GB	DESDC-A28S06%E1SL	DESDC-A28S06%W1SL
256GB	DESDC-B56S06%E1SL	DESDC-B56S06%W1SL

%. G : 96 layers 3D TLC / K : 112 layers 3D TLC
32GB is only supported by 64 layers 3D TLC

For more information, please contact our support.
