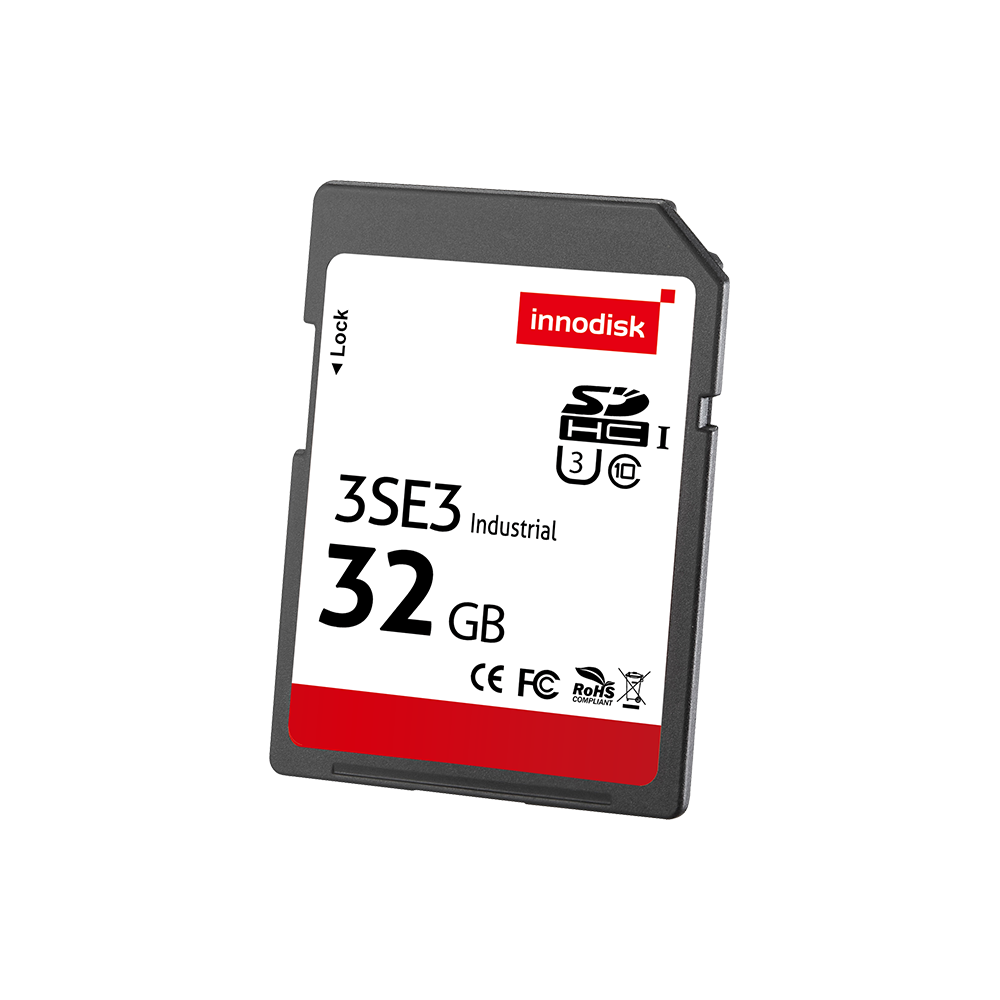

Industrial SD Card 3SE3

SD Card & MicroSD Card

4GB ~ 32GB

Features

SD 3.0 interface
High performance
Power fail management
BCH ECC algorithm implement

BORN FOR SUPERIOR PERFORMANCE

Innodisk 3SE3 is an industrial-grade SD card solution with an integrated industrial controller, which is designed for embedded applications. With enhanced Flash technologies and a powerful configurable BCH ECC engine, SD 3SE3 can achieve high-speed data transfer rates.

Innodisk Industrial SD 3SE3 provides a wide range of capacities from 4GB to 32GB with SLC NAND Flash and is fully compliant with SD 3.0 and SD 2.0 specifications.

Innodisk industrial SD 3SE3 is specifically designed for industrial PC and embedded applications for high performance. With its low power consumption and the features mentioned above, Innodisk industrial SD 3SE3 can be used for industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	Industrial SD Card 3SE3
Flash Type	SLC
Interface	SD 3.0
Form Factor	SD Card
Capacity	4GB ~ 32GB
Sequential R / W (MB/sec, max.)	37 / 31
P/E Cycle	60,000
TBW (Max.)	1,704
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.4W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	24.0 x 32.0 x 2.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DESDC-04GS02AE1SB	DESDC-04GS02AW1SB
8GB	DESDC-08GS02AE1SB	DESDC-08GS02AW1SB
16GB	DESDC-16GS02AE1SB	DESDC-16GS02AW1SB
32GB	DESDC-32GS02AE1SB	DESDC-32GS02AW1SB

For more information, please contact our support.
