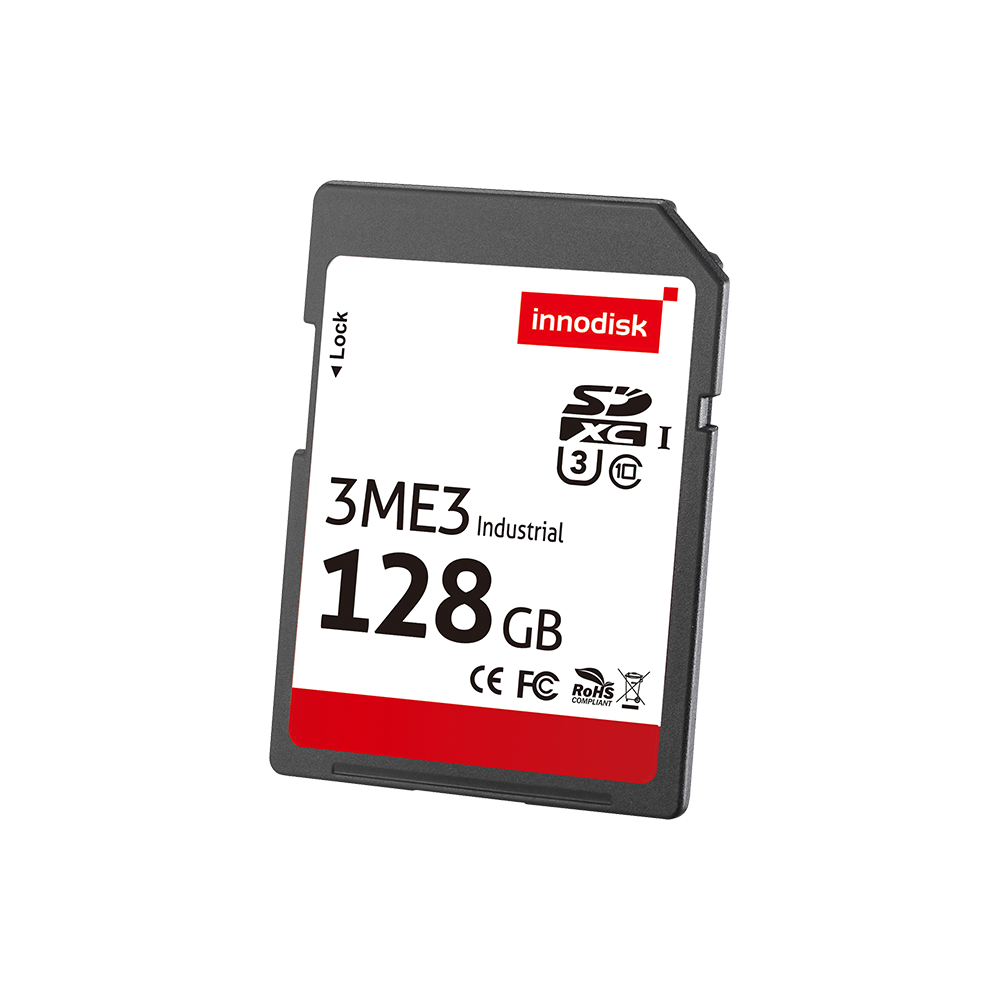

Industrial SD Card 3ME3

SD Card & MicroSD Card

8GB ~ 128GB

Features

SD 3.0 interface
High performance
Power fail management
BCH ECC algorithm implement

BORN FOR SUPERIOR PERFORMANCE

Innodisk 3ME3 is an industrial-grade SD card solution with an integrated industrial controller that is designed for embedded applications. With enhanced Flash technologies and a powerful configurable BCH ECC engine, SD 3ME3 can achieve high-speed data transfer rates.

Innodisk industrial SD 3ME3 provides a wide range of capacities from 8GB to 128GB with MLC NAND Flash, and is fully compliant with SD 3.0 and SD 2.0 specifications.

Innodisk industrial SD 3ME3 is specifically designed for industrial PC and embedded applications for high performance. With its low power consumption and the features mentioned above, Innodisk industrial SD 3ME3 can be used for industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications..

SPECIFICATIONS

Model Name	Industrial SD Card 3ME3
Flash Type	MLC
Interface	SD 3.0
Form Factor	SD Card
Capacity	8GB ~ 128GB
Sequential R / W (MB/sec, max.)	80 / 46
P/E Cycle	3,000
TBW (Max.)	349
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.6W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	24.0 x 32.0 x 2.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DESDC-08GS02BC1SC	DESDC-08GS02BW1SC
16GB	DESDC-16GS02BC1SC	DESDC-16GS02BW1SC
32GB	DESDC-32GS02BC1SC	DESDC-32GS02BW1SC
64GB	DESDC-64GS02BC1SC	DESDC-64GS02BW1SC
128GB	DESDC-A28S02BC1SC	DESDC-A28S02BW1SC

For more information, please contact our support.
