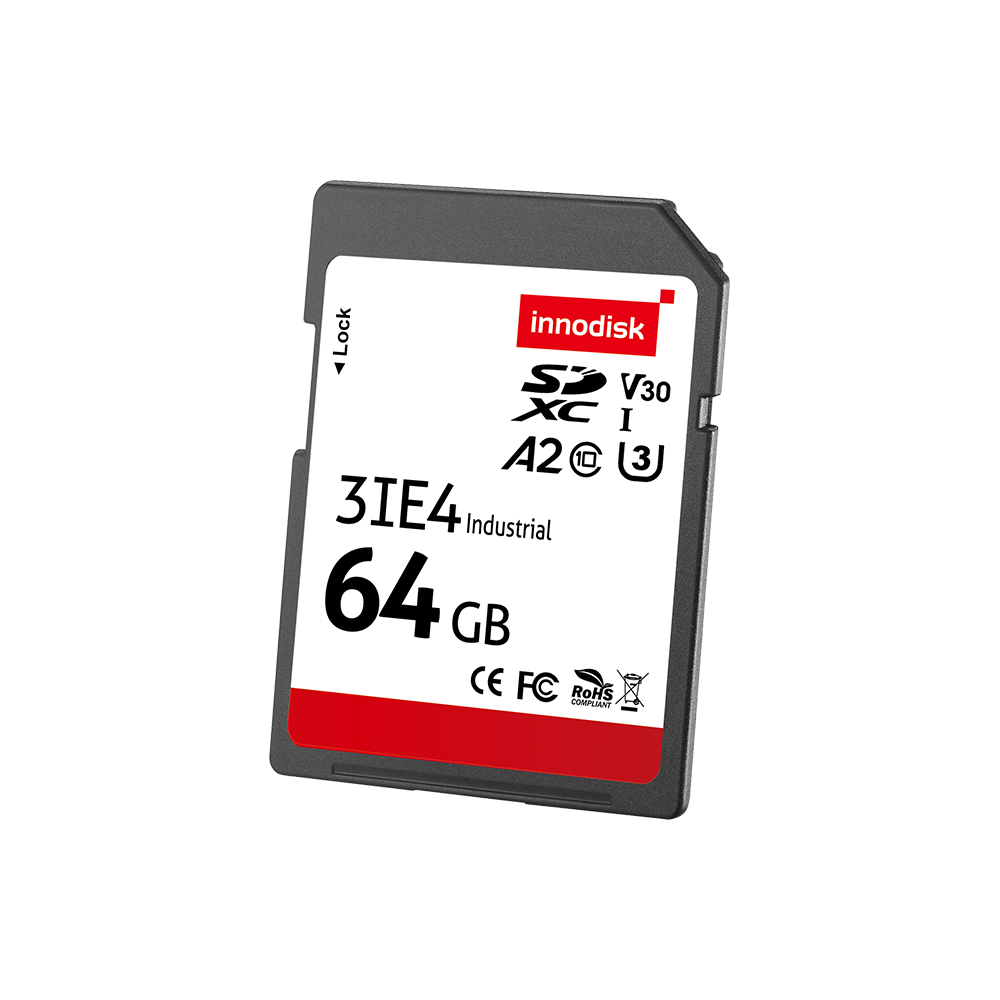

Industrial SD Card 3IE4

SD Card & MicroSD Card

Ultra iSLC Solution

Features

Compliant with SD 6.1 / SD 3.0 / SD 2.0 interface
Support Class 10 with UHS-III
High performance
Power fail management
LDPC ECC algorithm implement

BORN FOR SUPERIOR PERFORMANCE

Innodisk 3IE4 is an industrial-grade SD card solution with an integrated industrial controller that is designed for embedded applications. With enhanced Flash technologies and a powerful configurable LDPC ECC engine, SD 3IE4 can achieve high-speed data transfer rates.

Innodisk Industrial SD 3IE4 provides a wide range of capacities from 8GB to 64GB with 3D TLC NAND Flash, and is fully compliant with SD 3.0 and SD 2.0 specifications.

Innodisk Industrial SD 3IE4 is specifically designed for industrial PC and embedded applications for high performance. With its low power consumption and the features mentioned above, Innodisk industrial SD 3IE4 can be used for industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	Industrial SD Card 3IE4
Flash Type	iSLC (3D TLC)
Interface	SD 3.0, SD 6.1
Form Factor	SD Card
Capacity	8GB ~ 64GB
Sequential R / W (MB/sec, max.)	90 / 80
P/E Cycle	30,000 / 100,000
TBW (Max.)	5,680
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.5W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	24.0 x 32.0 x 2.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25°C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DHSDC-08GS06EE1SL	DHSDC-08GS06EW1SL
16GB	DHSDC-16GS06%E1SL	DHSDC-16GS06%W1SL
32GB	DHSDC-32GS06%E1SL	DHSDC-32GS06%W1SL
64GB	DHSDC-64GS06%E1SL	DHSDC-64GS06%W1SL

%. G : 96 layers 3D TLC / K : 112 layers 3D TLC
8GB is only supported by 64 layers 3D TLC.

For more information, please contact our support.
