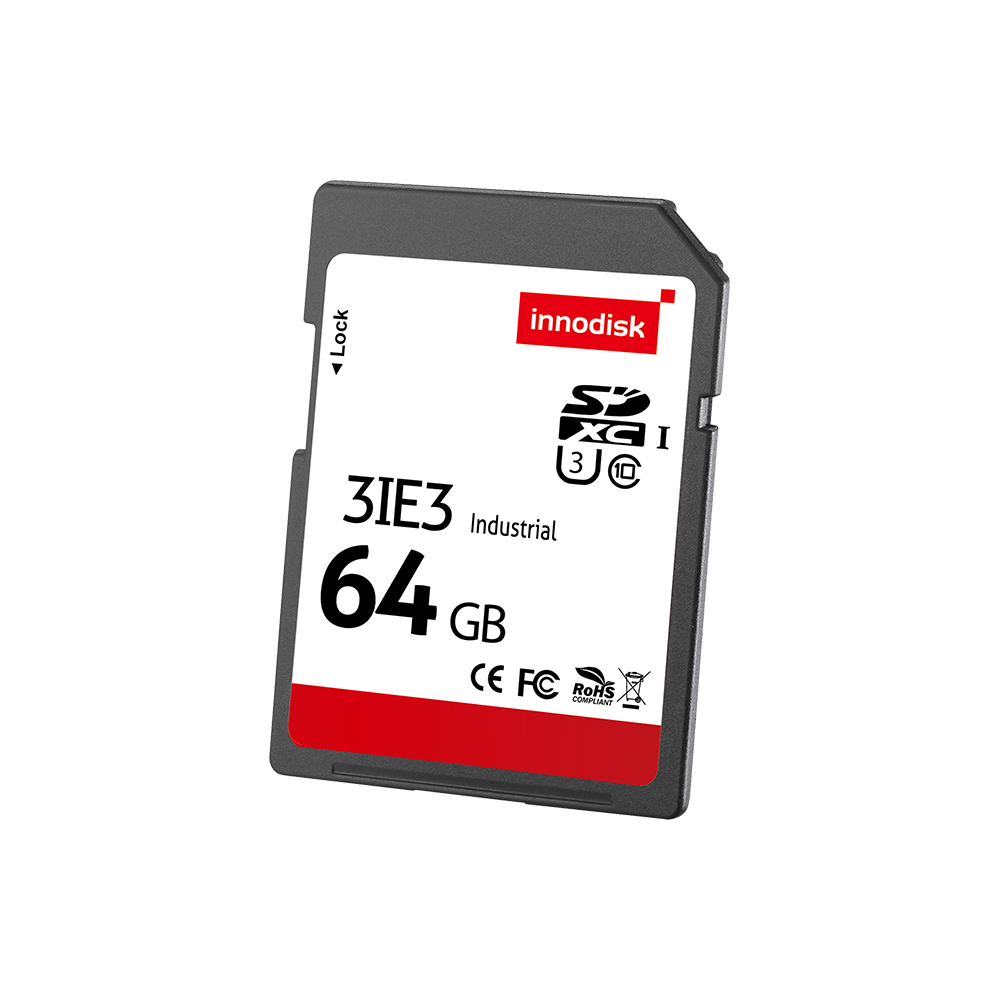

Industrial SD Card 3IE3

SD Card & MicroSD Card

4GB ~ 64GB

Features

SD 3.0 interface
High performance
Power fail management
BCH ECC algorithm implement

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

Innodisk 3IE3 is an industrial-grade SD card solution with an integrated industrial controller that is designed for embedded applications. With enhanced Flash technologies and a powerful configurable BCH ECC engine, SD 3IE3 can achieve high-speed data transfer rates.

Innodisk industrial SD 3IE3 provides a wide range of capacities from 4GB to 64GB with MLC NAND Flash, and is fully compliant with SD 3.0 and SD 2.0 specifications.

Innodisk industrial SD 3IE3 is specifically designed for industrial PC and embedded applications for high performance. With its low power consumption and the features mentioned above, Innodisk industrial SD 3IE3 can be used for industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.

SPECIFICATIONS

Model Name	Industrial SD Card 3IE3
Flash Type	iSLC (MLC)
Interface	SD 3.0
Form Factor	SD Card
Capacity	4GB ~ 64GB
Sequential R / W (MB/sec, max.)	70 / 70
P/E Cycle	20,000
TBW (Max.)	1,136
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.5W
Max. Channels	1
External DRAM Buffer	N
Features	H/W Write Protect
Dimension (W x L x H/mm)	24.0 x 32.0 x 2.1
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Extended Grade (-25C ~ 85°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DHSDC-04GS02BE1SC	DHSDC-04GS02BW1SC
8GB	DHSDC-08GS02BE1SC	DHSDC-08GS02BW1SC
16GB	DHSDC-16GS02BE1SC	DHSDC-16GS02BW1SC
32GB	DHSDC-32GS02BE1SC	DHSDC-32GS02BW1SC
64GB	DHSDC-64GS02BE1SC	DHSDC-64GS02BW1SC

For more information, please contact our support.
