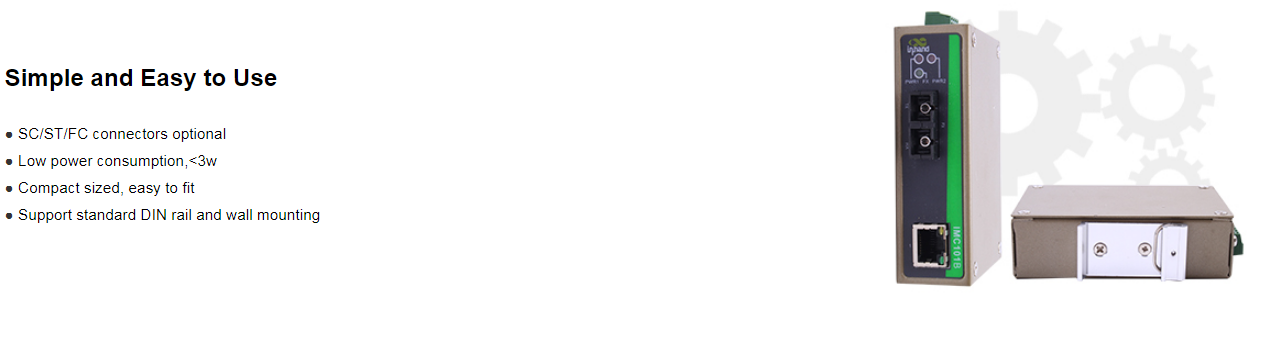

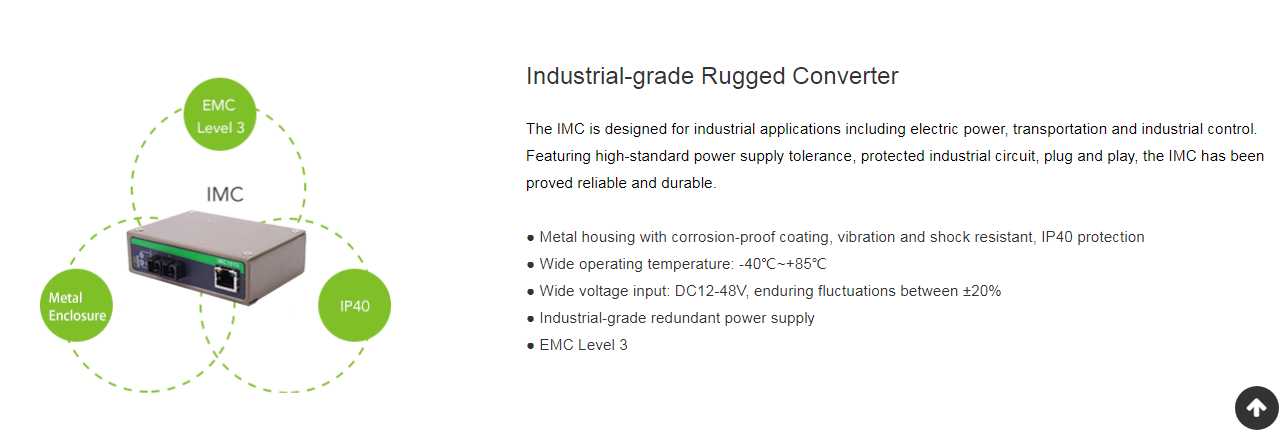

The IMC Series Industrial Fiber Media Converter converts between 10/100Base-TX and 100Base-FX, connecting copper-based cabling systems with fiber optic cabling systems. The self-designed converter is built to industrial-grade, high-reliability standards, featuring high-standard power supply tolerance, protected industrial circuit, plug and play, etc.
| Items | IMC101B | |
| Interface | ||
| RJ45 port | 100Base-T(X) RJ45, full duplex/half-duplex, MDI/MDI-X self-adaptive | |
| FX fiber port | 100Base-FX port (SC/ST/FC connector) | |
| LED | PWR1, PWR2, LINK/ACTIVE 10/100M(RJ45) | |
| Mechanical | ||
| Housing | IP40 protection class, fully enclosed and seamless type metal cabinet, PCB protection coating available | |
| Dimensions (W*H*D) | 30mmx70mmx100mm | |
| Weight | 0.3 kg | |
| Heat dissipation | No Fan | |
| Installation | DIN- rail and wall mounting (optional) | |
| MTBF | 35 years | |
| Power | ||
| Voltage input | 24VDC(12~48VDC), redundant | |
| Interface terminal | 4-pin pluggable screw connection terminal | |
| Overload protection | Available | |
| Reverse polarity protection | Available | |
| Power consumption | <3w< span=""> | |
| Working Environment | ||
| Working temp | -40 ~+85°C | |
| Storage temp | -40 ~ +85°C | |
| Relative humidity | 5%~95% (free of condensation) | |
| Industrial Standard | ||
| Electromagnetic Compatibility | IEC 61000-4-2 (Electrostatic discharge) Level 3 IEC 61000-4-3 (Radiated electric field) Level 3 IEC 61000-4-4 (Electrical fast transient/burs) Level 3 IEC 61000-4-5 (Surge) Level 3 IEC 61000-4-6 (Conducted disturbances) Level 3 IEC 61000-4-8 (Power frequency magnetic field) Level 4 | |
| Impact | IEC60068-2-27 | |
| Free fall | IEC60068-2-32 | |
| Vibration | IEC60068-2-6 | |
