| Features and Benefits- Layer 3 routing interconnects multiple LAN segments
- 24 Gigabit Ethernet ports
- Up to 24 optical fiber connections (SFP slots)
- Fanless, -40 to 75°C operating temperature range (T models)
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy
- Isolated redundant power inputs with universal 110/220 VAC power supply range
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
|
Introduction
Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6824A Series is equipped with 24 Gigabit Ethernet ports, and support Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.
The IKS-G6824A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
Additional Features and Benefits
Layer 3 switching functionality to move data and information across networks
Command line interface (CLI) for quickly configuring major managed functions
Supports advanced VLAN capability with Q-in-Q tagging
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Redundant, dual AC power inputs
Port Trunking for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Access control lists (ACL) increase the flexibility and security of network management
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Digital inputs for integrating sensors and alarms with IP networks

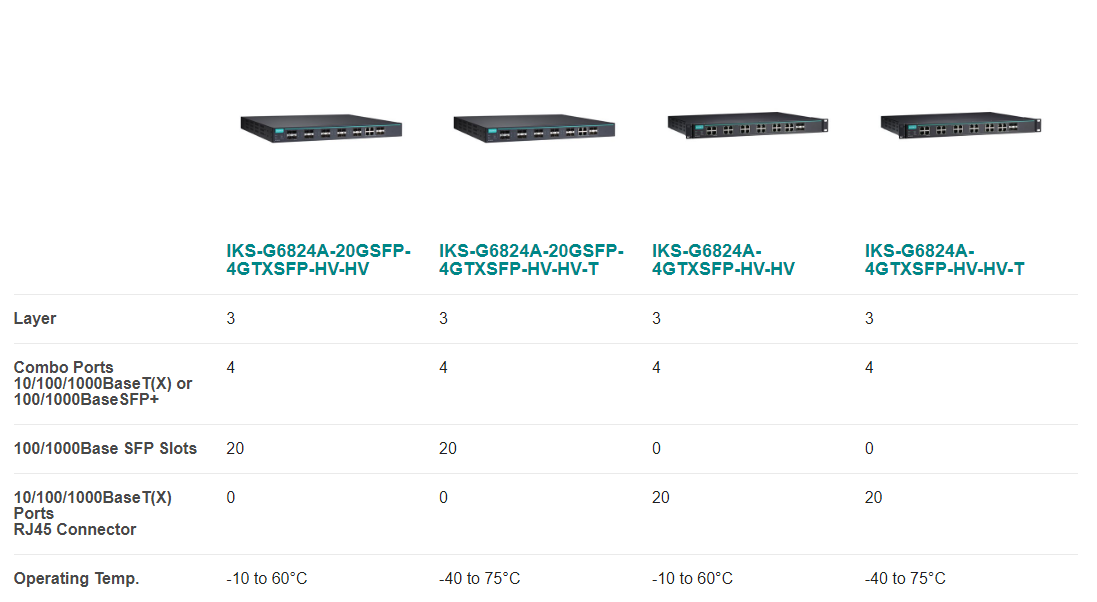

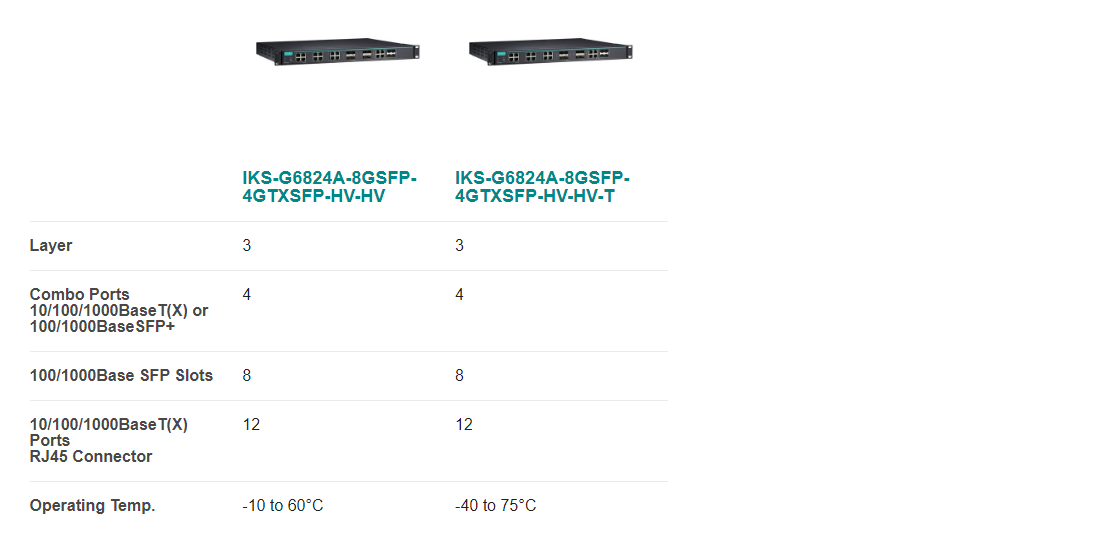

Models
