Rackmount Ethernet Switches-000106

Features and Benefits

• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• IEEE 1588 PTP (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Modbus/TCP industrial Ethernet protocol supported
• Turbo Ring and Turbo Chain, and RSTP/STP (IEEE 802.1w/D)
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• IEEE 802.1Q VLAN and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• IEEE 802.1X, HTTPS, and SSH to enhance network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management ensures stable network performance
• "Lock port" to restrict access to authorized MAC addresses
• Port mirroring for online debugging
• Automatic warning by exception through email and relay output
• Configurable by web browser, Telnet/serial console, Windows utility, and ABC-01 automatic backup configurator

Introduction

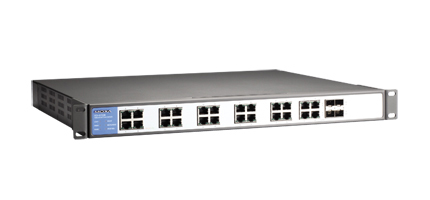

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6524 series full Gigabit backbone switches are equipped with Gigabit Ethernet ports, making them ideal for large-scale industrial networks. The IKS-G6524's full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy protocols, and are fanless and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
