| Features and Benefits- 2 Gigabit plus 24 Fast Ethernet ports for copper and fiber
- Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy
- Modular design lets you choose from a variety of media combinations
- -40 to 75°C operating temperature range
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
|
| |
Introduction
The IKS-6726A Series is designed to meet the rigorous demands of mission-critical applications for industry and business, such as traffic control systems and maritime applications. The IKS-6726A’s Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs.
The modular design of the IKS-6726A also makes network planning easy, and allows greater flexibility by letting you install up to 2 Gigabit ports and 24 fast Ethernet ports.
Additional Features and Benefits
Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
IEEE 802.3ad, LACP for optimum bandwidth utilization
Line-swap fast recovery
TACACS+, IEEE 802.1X, SNMPv3, HTTPS, and SSH to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management prevents unpredictable network status with “Lock port” to restrict access to authorized MAC addresses
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Automatic recovery of connected device’s IP addresses
Configurable by web browser, Telnet/serial console, CLI, Windows utility, and ABC-02-USB automatic backup configurator

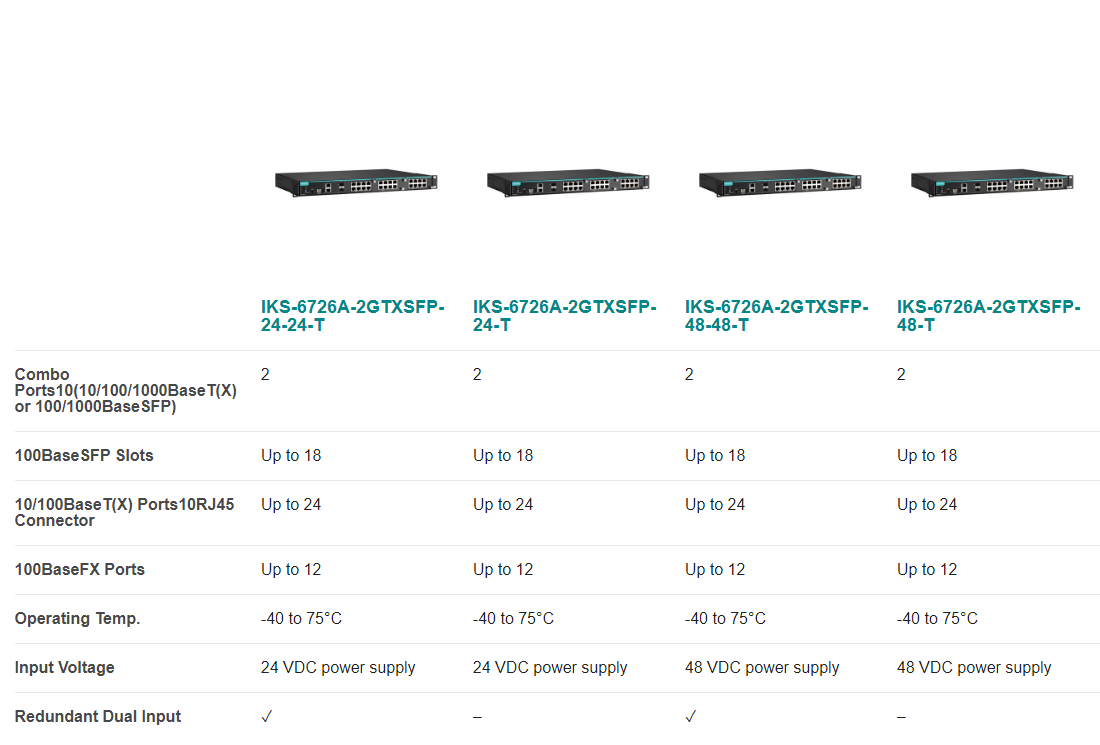

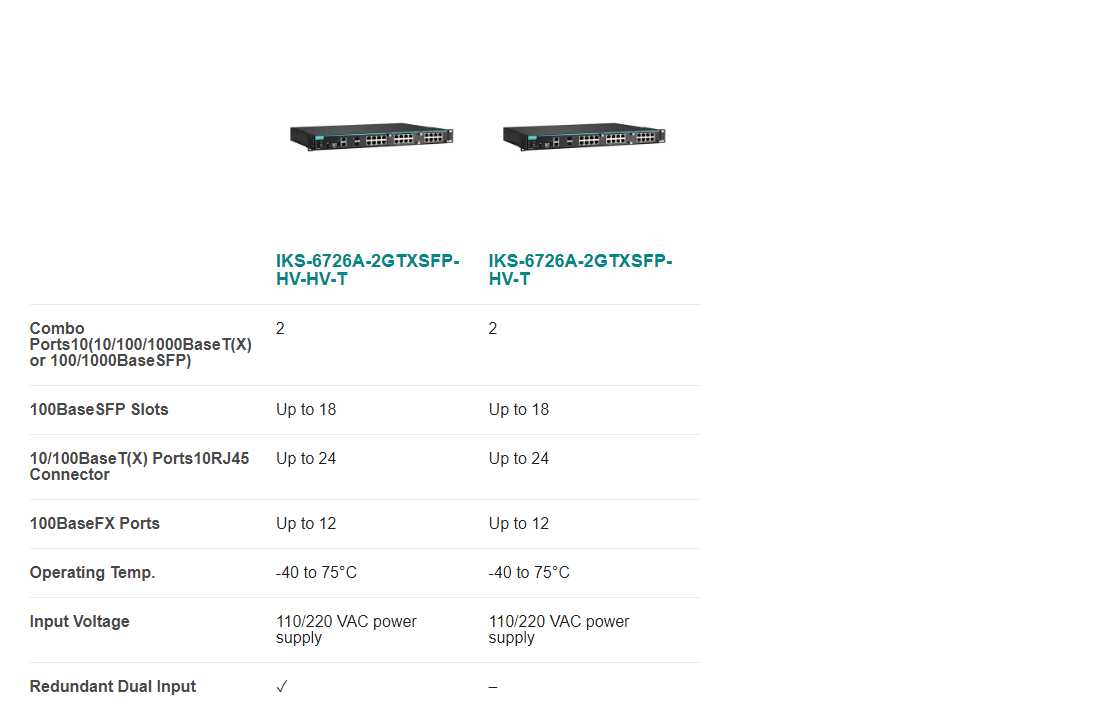

Models
