IDG500-0T012

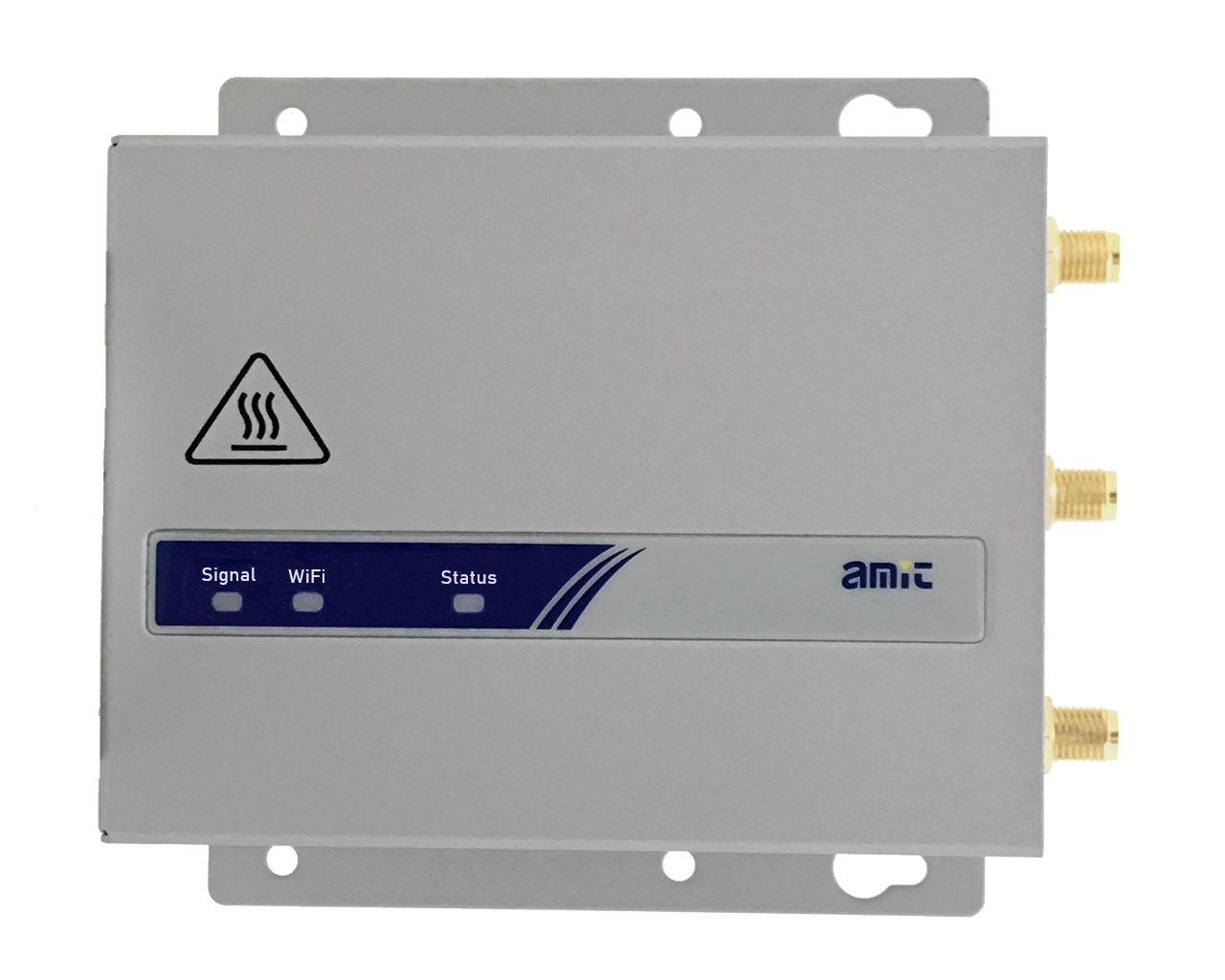

4G WAN Extender | IDG500-0T012

  • Dual SIM LTE
  • 1*RJ45 (cfg) Ether-WAN
  • 1(2)*10/100 Ether-LAN
  • 1*1x1 2.4G WiFi
  • 1*Micro SD
  • Metal Housing, Wall Mount
  • DC 5~18V, -30°C ~ 70°C

Download Datasheet

Overview


  • Expanding LTE-based WAN connection for various IP networks at instant,including enterprise, industry, surveillance, or WiFi hotspot network.

  • To be primary or backup WAN for IP network enhances connection. It can expand fail-over for network at single WAN between LTE and Ether-WAN. There are dual SIMs for single LTE to achieve ISP fail-over when primarily fail(*).

  • Compact and easy to be integrated into a legacy solution. High speed device built with LTE Cat-4 which its download speed can be up to 150Mbps and two Fast Ethernet ports. Micro-SD is used for data logging.

  • Capable of rich VPN tunnel technologies and it can build VPN tunnel between IP network/network device with remote center or allow clients to connect in for secure data transmission.

  • Cellular toolkit simplifies setting and utilizes ISP service. Mobile data usage monitoring for budget control. Self-defined SMS commands for easy and quick management.

  • Both IPv4/IPv6 protocol stack meet ISP requirement. Gateway base on IP pass through or DHCP based NAT with Port Forwarding. Rich Routing function covers static, dynamic and OSPF compatible with most IP network.

  • Web-UI for basic setting. CLI and Command Script for advance setting. TR-069 used with AMIT-NMS for multi-site management. SNMP used for popular network tools management.

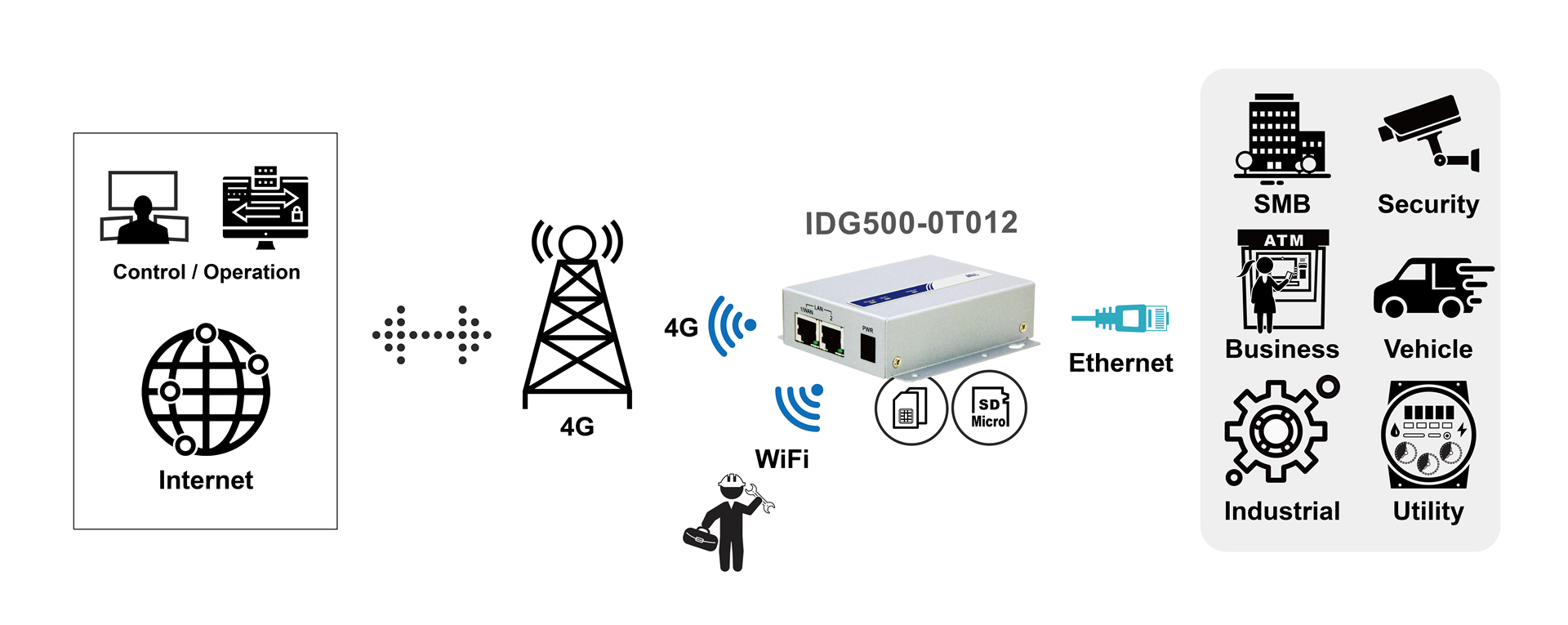

Application Diagram


Specification

Device Interface
LTE Module: 1*LTE-Cat.4
3GPP: Release 11
SIM: 2* 3FF micro-SIM slot
LTE Band: B2, B4, B5, B12, B13, B14, B66
WCDMA Band: B2, B4, B5
Ethernet:2*RJ45 Fast Ethernet
WiFi:1x1 802.11b/g/n
Log Storage:1*MicroSD slot
Power Input :1* DC 5V ~ 18V (DC Jack)
Antenna Con.:2*SMA for LTE, 1*R-SMA for WiFi WAN & Uplink
WAN & Uplink
WAN:Cellular, Ether-WAN, WiFi as WAN
Cellular:2G/3G/LTE, IP Pass-through
Ether-WAN:Dynamic IP, Static IP, PPPoE , PPTP, L2TP
Network Monitor:ICMP/DNS Query
WiFi
Standard:IEEE 802.11b/g/n
Mode:AP Router
Functions:Multi-SSID, WMM
Security:WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x
Protocol
LAN & VLAN:DHCP Server/Relay , Port/Tag based VLAN
IPv6*:Dual Stack, Static IPv6, DHCPv6, PPPoEv6
Port Forward:Virtual Server, Virtual Computer, DMZ, VPN Pass-through
Routing:Static, Dynamic - RIP1/RIP2, OSPF, BGP
Security
VPN Tunneling:IPSec,OpenVPN,PTP,L2TP,GRE
VPN Capability:IPSec: up to 3 tunnels
Firewall:SPI Firewall with Stealth Mode, IPS
Access Control:Packet Filter, URL Blocking, MAC Filter
Administration
Config & Mgmt. :Web, Telnet & SSH, Command Script, SNMPv3 Std. & Proprietary MIB , TR069
System:Upgrade, Backup & Restore, Reboot & Reset, SysLog
Diagnostic:Packet Analyzer, Diagnostic Tools
Service
Cellular Toolkit:   Data Usage, SMS, SIM PIN, USSD, Network Scan
Event Handling:User Defined Manage/Notify Event; SMS, Mail, Syslog, SNMP Trap, System HW
Environment
Operation Temperature:-22°F-158°F (-30°C-70°C)
Storage Temperature:-40°F-185°F (-40°C-85°C)
Humidity:10%~95% (non-condensing)
Enclosure:Metal, Mounting Tab
Dimension:90(L)x93(W)x27(H)mm (exclude antenna connectors)90(L)x101(W)x27(H)mm (include antenna connectors)
Certification
FCC
ISED
Carrier Approval
AT&T(*)
Verizon(*)
Package Accessory
1*IDG500-0T012
2*Cellular Antenna (3dBi)
1*WiFi Antenna (3dBi)
1*Power Adapter DC 5V/2A
