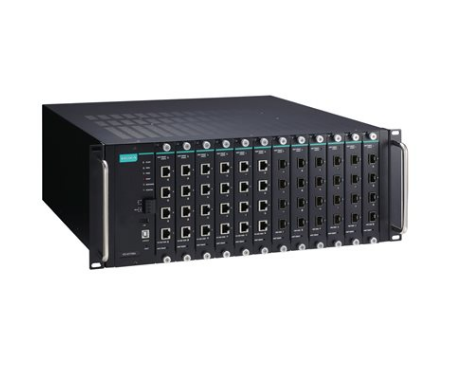

ICS-G7748A Series

Features and Benefits

Up to 48 Gigabit Ethernet ports
Up to 48 optical fiber connections (SFP slots)
Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
Fanless, -10 to 60°C operating temperature range
Modular design for maximum flexibility and hassle-free future expansion
Hot-swappable interface and power modules for continuous operation
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy
Isolated redundant power inputs with universal 110/220 VAC power supply range
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7748A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports.

The ICS-G7748A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

Advanced PoE management functions: PoE output setting, PD failure check, PoE scheduling, and PoE diagnostics (with IM-G7000A-4PoE module)
Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
Compatible with PROFINET protocol for transparent data transmission
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Redundant, dual AC power inputs
Digital inputs for integrating sensors and alarms with IP networks

IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Access control lists (ACL) increase the flexibility and security of network management
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address

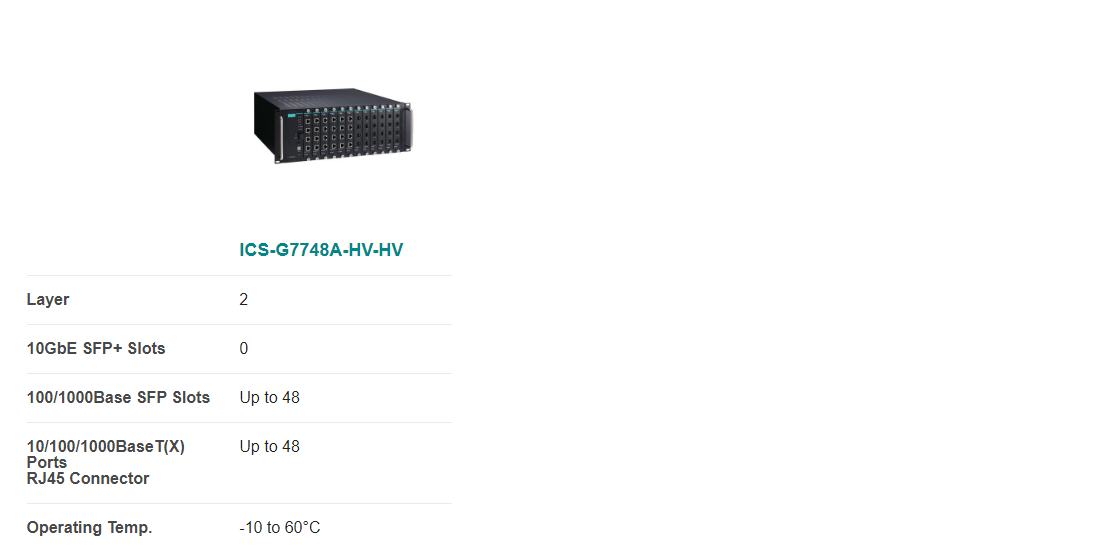

Models
