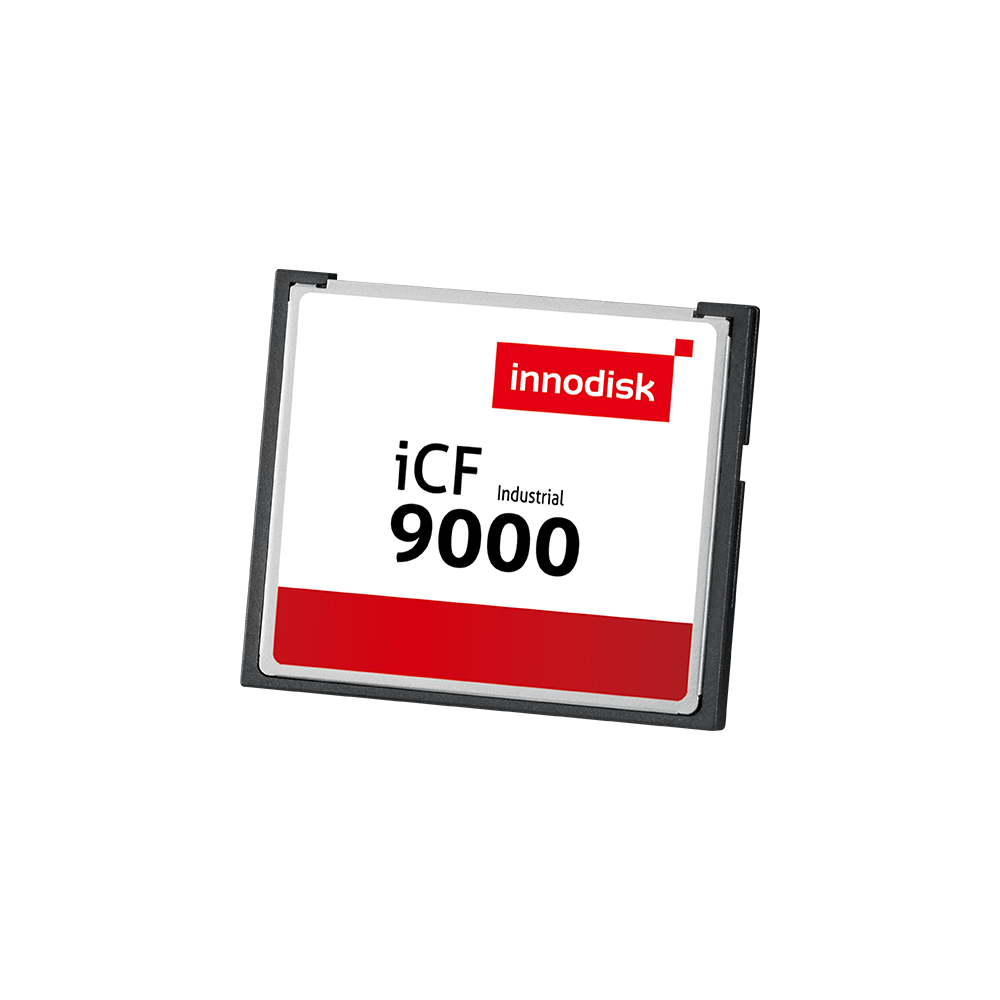

iCF 9000

Card

1GB ~ 64GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Enhanced power cycling management

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 9000 Memory Card (iCF 9000) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 9000 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 9000 (iCF 9000) supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	iCF 9000
Flash Type	SLC
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	1GB ~ 64GB
Sequential R / W (MB/sec, max.)	110 / 100
P/E Cycle	60,000
TBW (Max.)	4,166
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	1.53W
Max. Channels	4
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
1GB	DC1M-01GD71AC2DB	DC1M-01GD71AW2DB
2GB	DC1M-02GD71AC2QB	DC1M-02GD71AW2QB
4GB	DC1M-04GD71AC2QB	DC1M-04GD71AW2QB
8GB	DC1M-08GD71AC2QB	DC1M-08GD71AW2QB
16GB	DC1M-16GD71AC1QB	DC1M-16GD71AW1QB
32GB	DC1M-32GD71AC1QB	DC1M-32GD71AW1QB
64GB	DC1M-64GD71AC1QB	DC1M-64GD71AW1QB

For more information, please contact our support.
