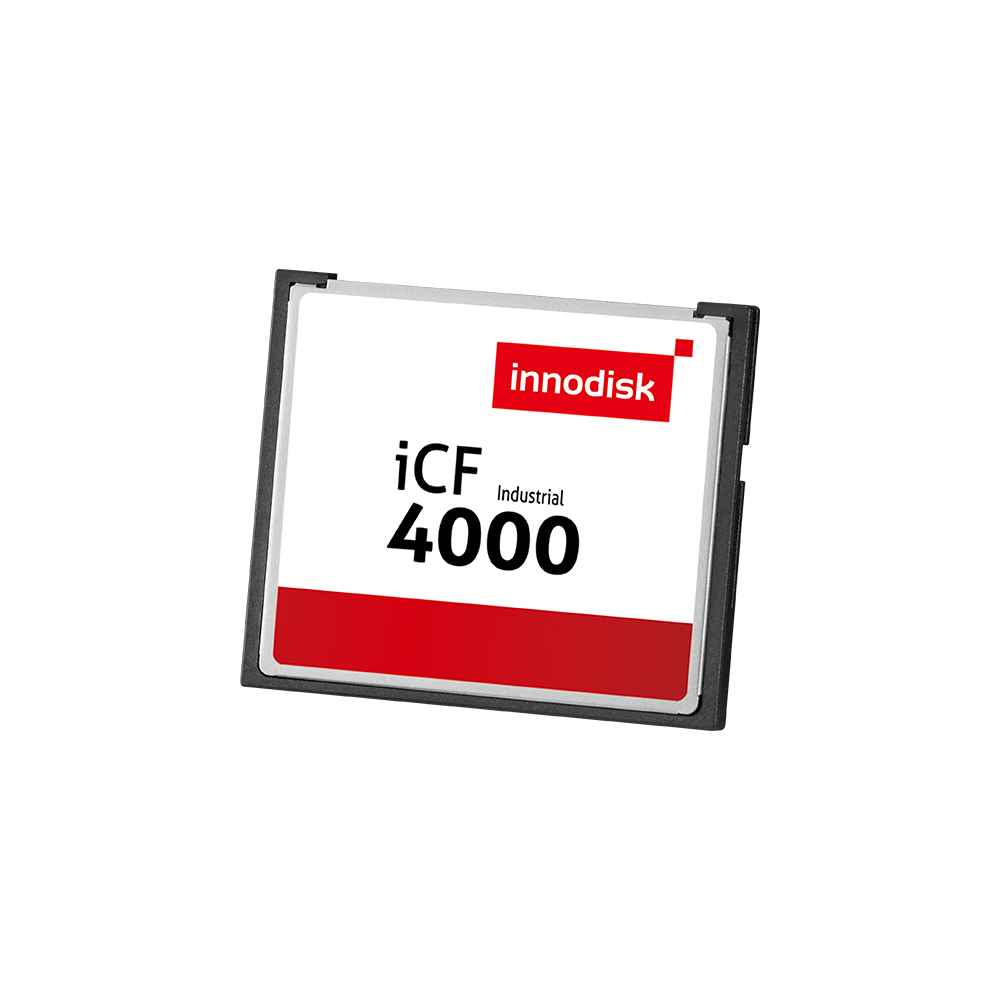

iCF 4000

CompactFlash Card

128MB ~ 8GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Mechanical design for anti-vibration

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 4000 Memory Card (iCF 4000) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash 4000 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 4000 (iCF 4000) supports advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	iCF 4000
Flash Type	SLC
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	128MB ~ 8GB
Sequential R / W (MB/sec, max.)	40 / 20
P/E Cycle	60,000
TBW (Max.)	421
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.73W (5V x 145mA) 0.42W (3.3V x 125mA)
Max. Channels	2
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
128MB	DC1M-128D31C1SB	DC1M-128D31W1SB
256MB	DC1M-256D31C1SB	DC1M-256D31W1SB
512MB	DC1M-512D31C1SB	DC1M-512D31W1SB
1GB	DC1M-01GD31C1DB	DC1M-01GD31W1DB
2GB	DC1M-02GD31C1DB	DC1M-02GD31W1DB
4GB	DC1M-04GD31C1DB	DC1M-04GD31W1DB
8GB	DC1M-08GD31C1DB	DC1M-08GD31W1DB

For more information, please contact our support.
