iCF 1SE3

CompactFlash Card 128MB ~ 64GB Features CF 6.0 standard compatible Supports PIO 4 / UDMA 5 in True-IDE mode Read disturb management Secure Erase iPower Guard iData Guard Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

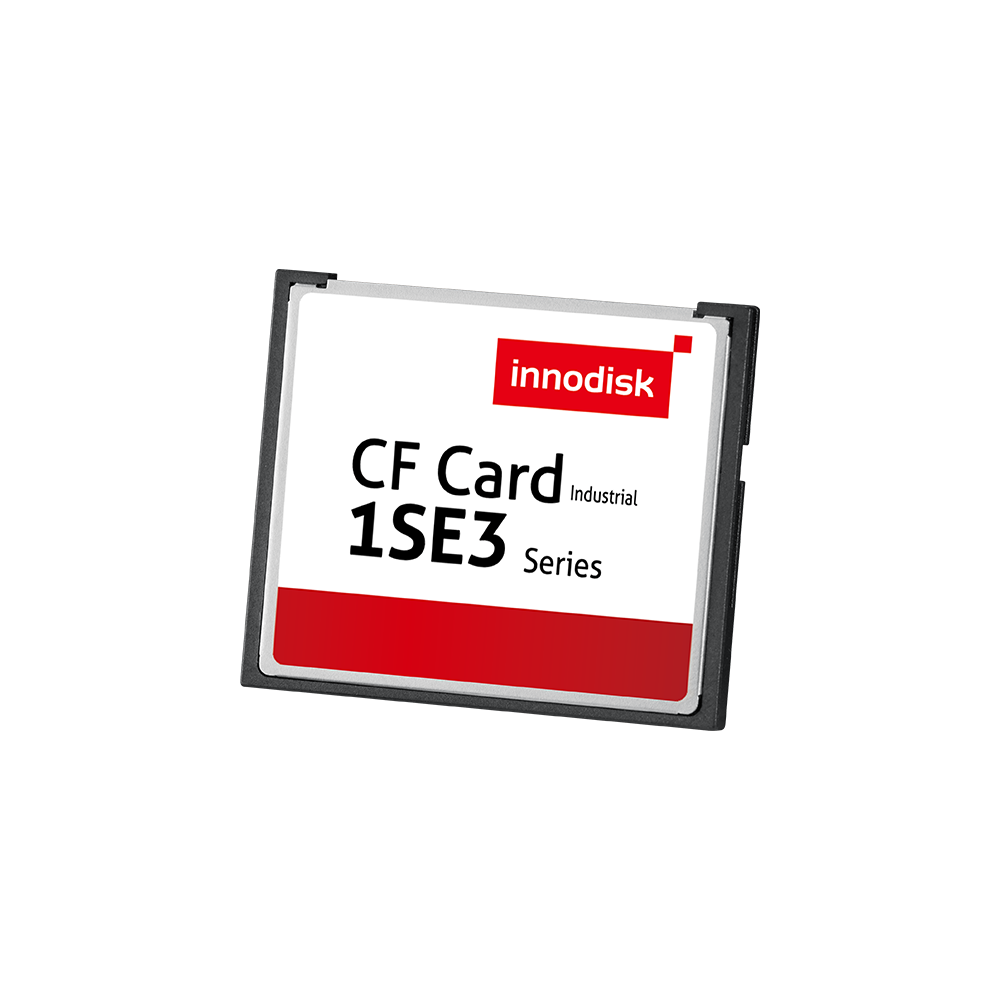

The Innodisk Industrial CompactFlash® 1SE3 Memory Card (iCF 1SE3) products provide high-capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1SE3 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1SE3 (iCF 1SE3) supports advanced PIO (0-4), Ultra DMA (0-5) transfer mode, multi-sector transfers, and LBA addressing. Furthermore, the 1SE3 series support iPower Guard with voltage power-down detection for complete power-down robustness.

SPECIFICATIONS

ORDER INFORMATION

&. S : 1 channel / D : 2 channels
