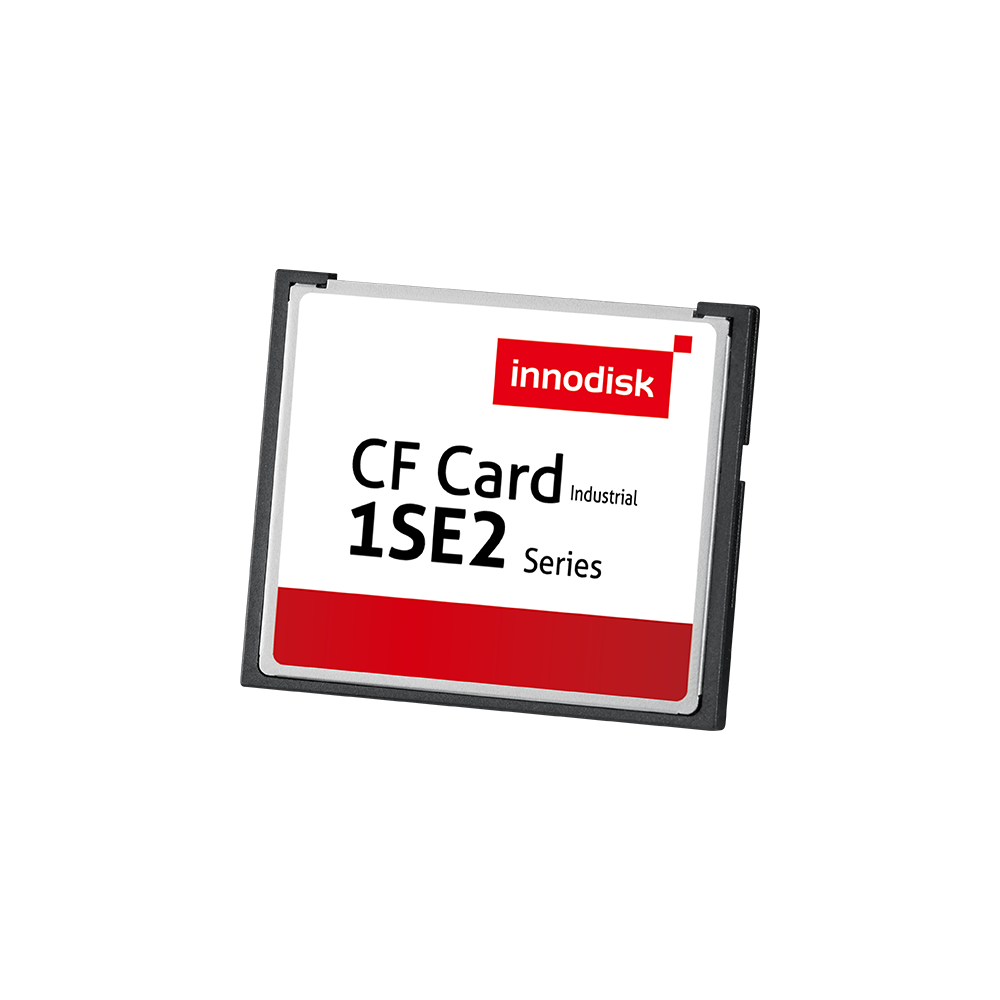

iCF 1SE2

CompactFlash Card

512MB ~ 64GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Enhanced power cycling management

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 1SE2 Memory Card (iCF 1SE2) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1SE2 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1SE2 (iCF 1SE2) supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	iCF 1SE2
Flash Type	SLC
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	512MB ~ 64GB
Sequential R / W (MB/sec, max.)	85 / 70
P/E Cycle	60,000
TBW (Max.)	3,750
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	1.4W
Max. Channels	2
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512MB	DECFC-512D53AC1SB	DECFC-512D53AW1SB
1GB	DECFC-01GD53AC*&B	DECFC-01GD53AW*&B
2GB	DECFC-02GD53AC*&B	DECFC-02GD53AW*&B
4GB	DECFC-04GD53AC*&B	DECFC-04GD53AW*&B
8GB	DECFC-08GD53AC2DB	DECFC-08GD53AW2DB
16GB	DECFC-16GD53AC2DB	DECFC-16GD53AW2DB
32GB	DECFC-32GD53AC2DB	DECFC-32GD53AW2DB
64GB	DECFC-64GD53AC2DB	DECFC-64GD53AW2DB

*. PCB version control
&. S : 1 channel / D : 2 channels
