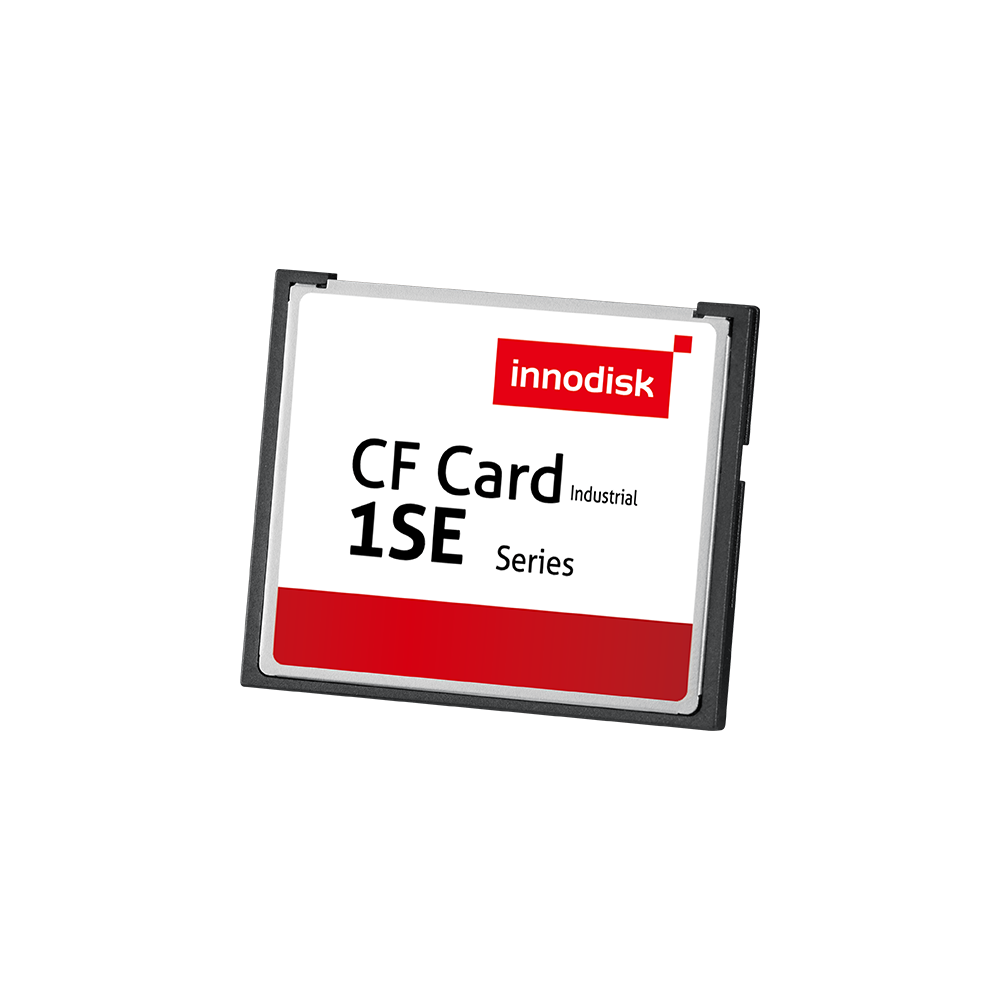

iCF 1SE

CompactFlash Card

512MB ~ 8GB

Features

iSMART disk health monitoring
Intelligent error recovery system
Excellent data transfer speed
Mechanical design for anti-vibration

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 1SE Memory Card (iCF 1SE) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1SE Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1SE (iCF 1SE) supports advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	iCF 1SE
Flash Type	SLC
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	512MB ~ 8GB
Sequential R / W (MB/sec, max.)	40 / 30
P/E Cycle	60,000
TBW (Max.)	421
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.75W
Max. Channels	2
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
512MB	DC1M-512D41AC1SB	DC1M-512D41AW1SB
1GB	DC1M-01GD41AC1DB	DC1M-01GD41AW1DB
2GB	DC1M-02GD41AC1DB	DC1M-02GD41AW1DB
4GB	DC1M-04GD41AC1DB	DC1M-04GD41AW1DB
8GB	DC1M-08GD41AC1DB	DC1M-08GD41AW1DB

For more information, please contact our support.
