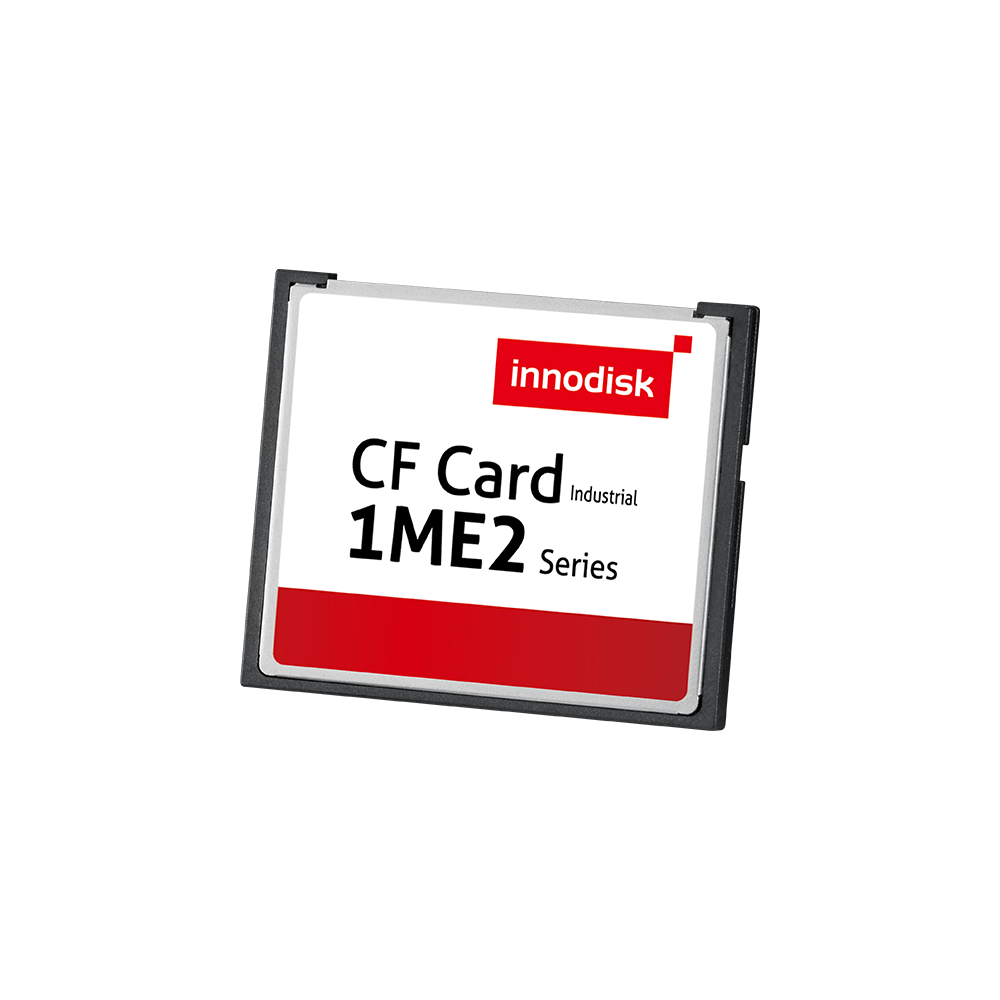

iCF 1ME2

CompactFlash Card

8GB ~ 256GB

Features

CF 6.0 standard compatible
Supporting PIO 0-6 / UDMA 0-6 in True-IDE mode
Read disturb management
Secure Erase
iPower Guard
iData Guard

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 1ME2 Memory Card (iCF 1ME2) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1ME2 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1ME2 (iCF 1ME2) supports advanced PIO (0-4), Ultra DMA (0-6) transfer mode, multi-sector transfers, and LBA addressing. Furthermore, the 1ME2 series support iPower Guard with voltage power-down detection for complete power-down robustness.

SPECIFICATIONS

Model Name	iCF 1ME2
Flash Type	MLC
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	90 / 60
P/E Cycle	3,000
TBW (Max.)	750
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.86W
Max. Channels	2
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DECFC-08GYA2BC1SC	DECFC-08GYA2BW1SC
16GB	DECFC-16GYA2BC1DC	DECFC-16GYA2BW1DC
32GB	DECFC-32GYA2BC1DC	DECFC-32GYA2BW1DC
64GB	DECFC-64GYA2BC1DC	DECFC-64GYA2BW1DC
128GB	DECFC-A28YA2BC1DC	DECFC-A28YA2BW1DC
256GB	DECFC-B56YA2BC1DC	DECFC-B56YA2BW1DC

For more information, please contact our support.
