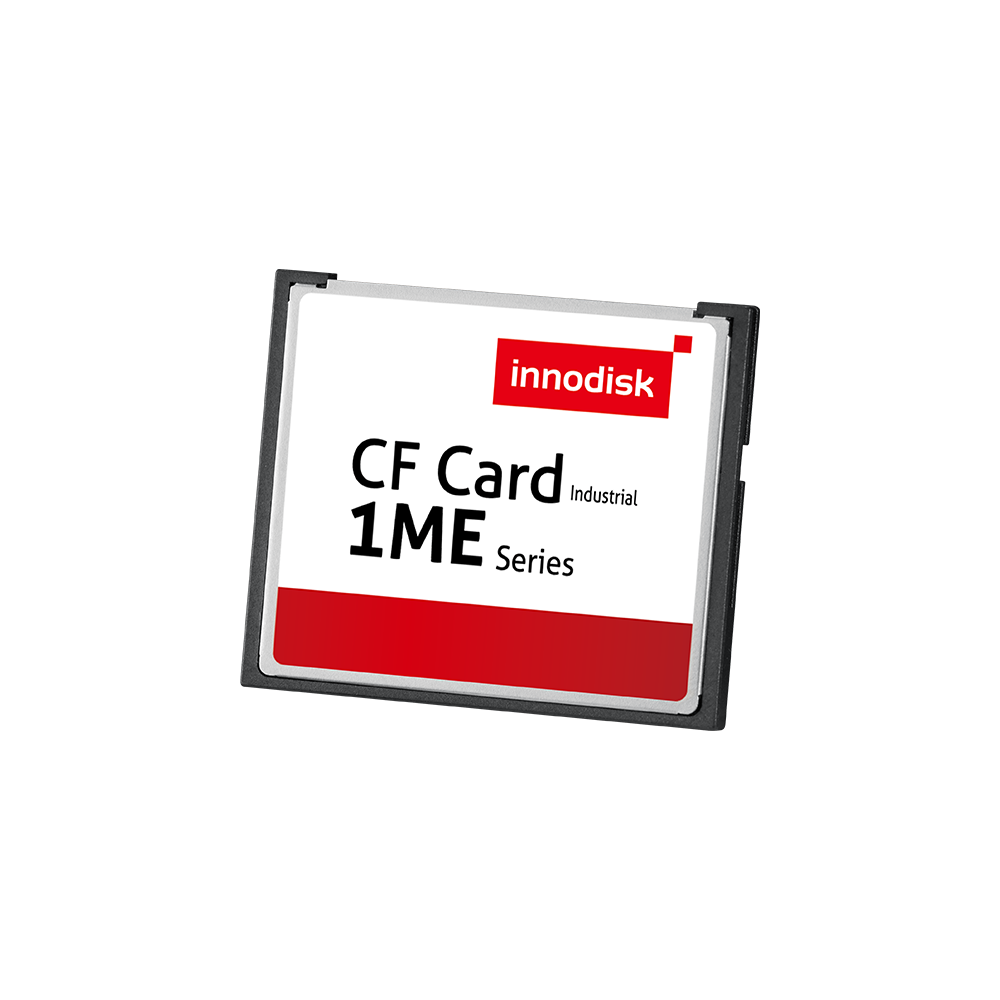

iCF 1ME

CompactFlash Card

8GB ~ 256GB

Features

iSMART disk health monitoring
Compliant with E-Mark / SAE J113 / ISO 7673-2
Intelligent error recovery system
Excellent data transfer speed
Enhanced power cycling management

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 1ME Memory Card (iCF 1ME) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1ME Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1ME (iCF 1ME) supports advanced PIO (0-6), Multiword DMA (0-4), Ultra DMA (0-7) transfer mode, multi-sector transfers, and LBA addressing.

SPECIFICATIONS

Model Name	iCF 1ME
Flash Type	MLC
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	8GB ~ 256GB
Sequential R / W (MB/sec, max.)	110 / 110
P/E Cycle	3,000
TBW (Max.)	75
Storage Temperature	-55°C ~ 95°C
Max. Power Consumption	0.76W
Max. Channels	2
External DRAM Buffer	N
Features	H/W Write Protect, S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	2 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
8GB	DECFC-08GD53BC1SC	DECFC-08GD53BW1SC
16GB	DECFC-16GD53BC1SC DECFC-16GD53BC1DC	DECFC-16GD53BW1SC DECFC-16GD53BW1DC
32GB	DECFC-32GD53BC1DC	DECFC-32GD53BW1DC
64GB	DECFC-64GD53BC1DC	ECFC-64GD53BW1DC
128GB	DECFC-A28D53BC1DC	DECFC-A28D53BW1DC
256GB	DECFC-B56D53BC1DC	DECFC-B56D53BW1DC

For more information, please contact our support.
