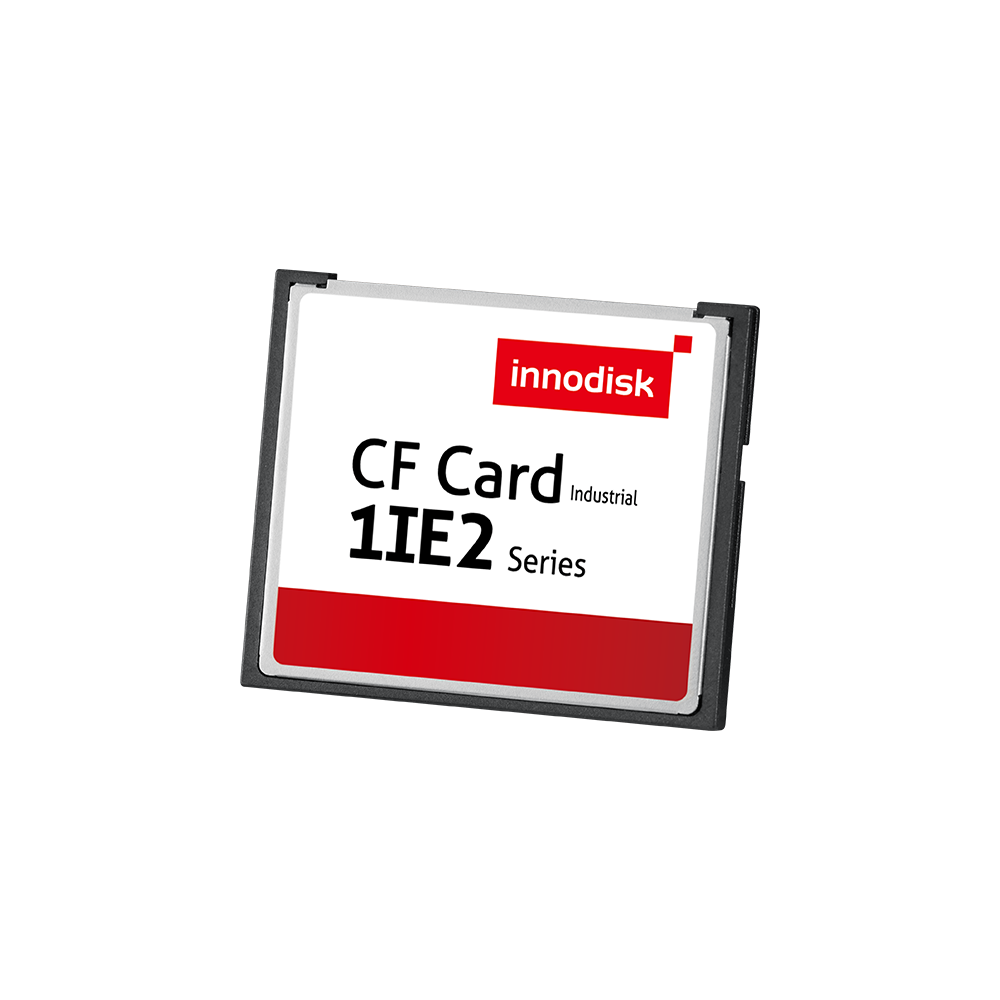

iCF 1IE2

CompactFlash Card

4GB ~ 128GB

Features

CF 6.0 standard compatible
Supporting PIO 0-6 / UDMA 0-6 in True-IDE mode
Read disturb management
Secure Erase
iPower Guard
iData Guard
Supports iSLC technology

BORN FOR SUPERIOR PERFORMANCE

The Innodisk Industrial CompactFlash® 1IE2 Memory Card (iCF 1IE2) products provide high-capacity solid-state Flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF form factor card can be used in any system that has a CF slot.

Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash® 1IE2 Memory Cards are embedded solid-state data storage systems for mobile computing and the industrial workplace. The Industrial CompactFlash® features an extremely lightweight, reliable, low-profile form factor. Industrial CompactFlash® 1IE2 (iCF 1IE2) supports advanced PIO (0-4), Ultra DMA (0-6) transfer mode, multi-sector transfers, and LBA addressing. Furthermore, the 1IE2 series support iPower Guard with voltage power-down detection for complete power-down robustness.

SPECIFICATIONS

Model Name	iCF 1IE2
Flash Type	iSLC (MLC)
Interface	PATA
Form Factor	CompactFlash (CF Card)
Capacity	4GB ~ 128GB
Sequential R / W (MB/sec, max.)	85 / 55
P/E Cycle	20,000
TBW (Max.)	2,273
Storage Temperature	-40°C ~ 85°C
Max. Power Consumption	0.6W
Max. Channels	2
External DRAM Buffer	N
Features	S.M.A.R.T.
Dimension (W x L x H/mm)	42.8 x 36.4 x 3.3
Vibration	20G@[7 ~ 2000Hz]
Shock	1500G@0.5ms
MTBF	>3 million hours
Warranty	5 Years

ORDER INFORMATION

Operating Temperature	Standard Grade (0°C ~ 70°C)	Industrial Grade (-40°C ~ 85°C)
4GB	DHCFC-04GYA2BC1SC	DHCFC-04GYA2BW1SC
8GB	DHCFC-08GYA2BC1SC	DHCFC-08GYA2BW1SC
16GB	DHCFC-16GYA2BC1DC	DHCFC-16GYA2BW1DC
32GB	DHCFC-32GYA2BC1DC	DHCFC-32GYA2BW1DC
64GB	DHCFC-64GYA2BC1DC	DHCFC-64GYA2BW1DC
128GB	DHCFC-A28YA2BC1DC	DHCFC-A28YA2BW1DC

For more information, please contact our support.
