IAGO3

Air Sensor Module

Ozone Sensor Module

Features

Rapid response and recovery time
High stability & long lifespan
Cost efficiency with high performance
Hassle-free :
- On-chip data processing
- No need for external libraries
- No impact on MCU

BORN FOR SUPERIOR PERFORMANCE

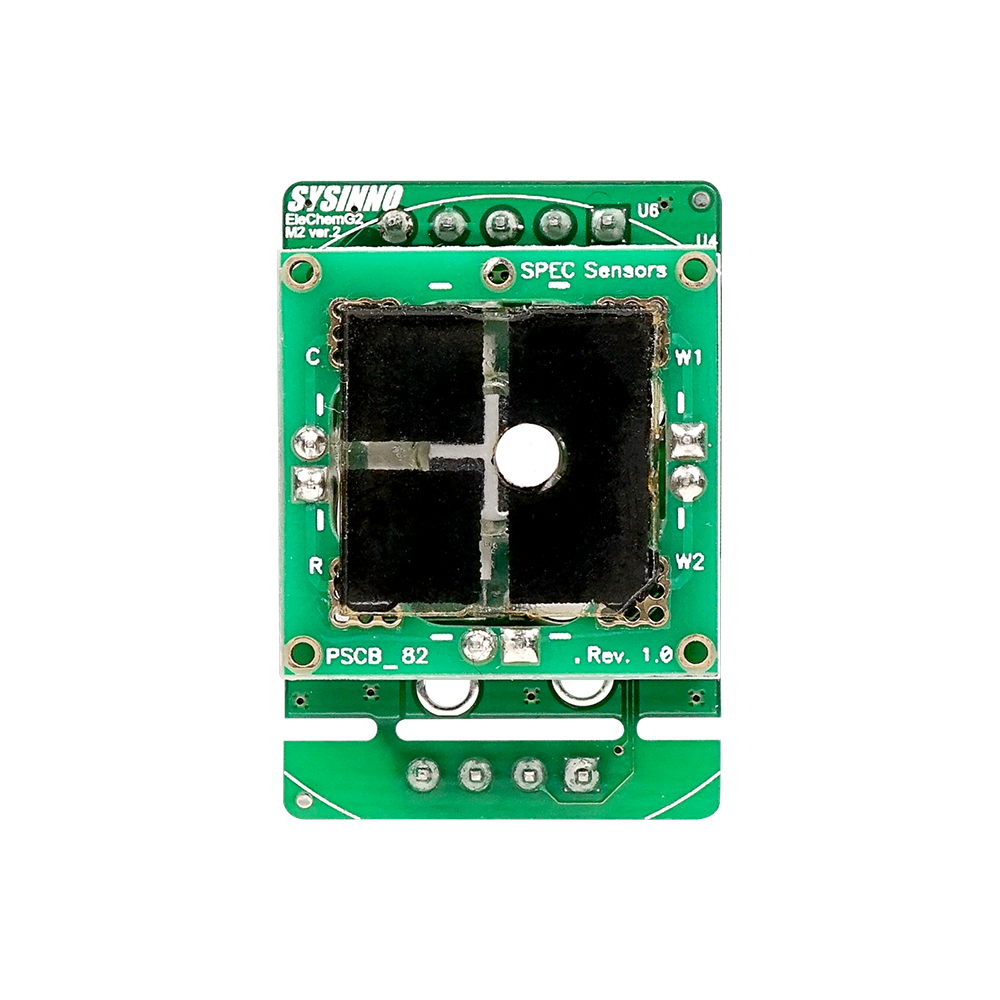

IAGO3 is a digital ozone gas sensor designed for indoor air quality monitoring, security applications, or wireless sensor networks to detect ozone concentrations near the installation site. This sensor features proven, maintenance-free technology and is engineered for high performance and reliability.

SPECIFICATIONS

Model Name	IAGO3
Detection	Ozone (O3)
Principle	Electrochemical
Measurement Range (ppm)	0 ~ 5
Resolution (ppm)	0.01
Accuracy (ppm)	±0.1±10% of Reading
Response Time (T90) (sec)	<60
Operation Temperature	-10°C ~ 50°C (Ta)
Operation Humidity (%RH)	15 ~ 90
Expected Operating Life	3 Years
Power Supply (V)	3.1 ~ 3.5
Power Consumption (mW)	<100
Interface	I²C
Dimension (L x W x H/mm)	32 x 21 x 8

ORDER INFORMATION

P/N	Description
EA3-2AASMM80I12S3	IAGO3 O3 Sensor Module
