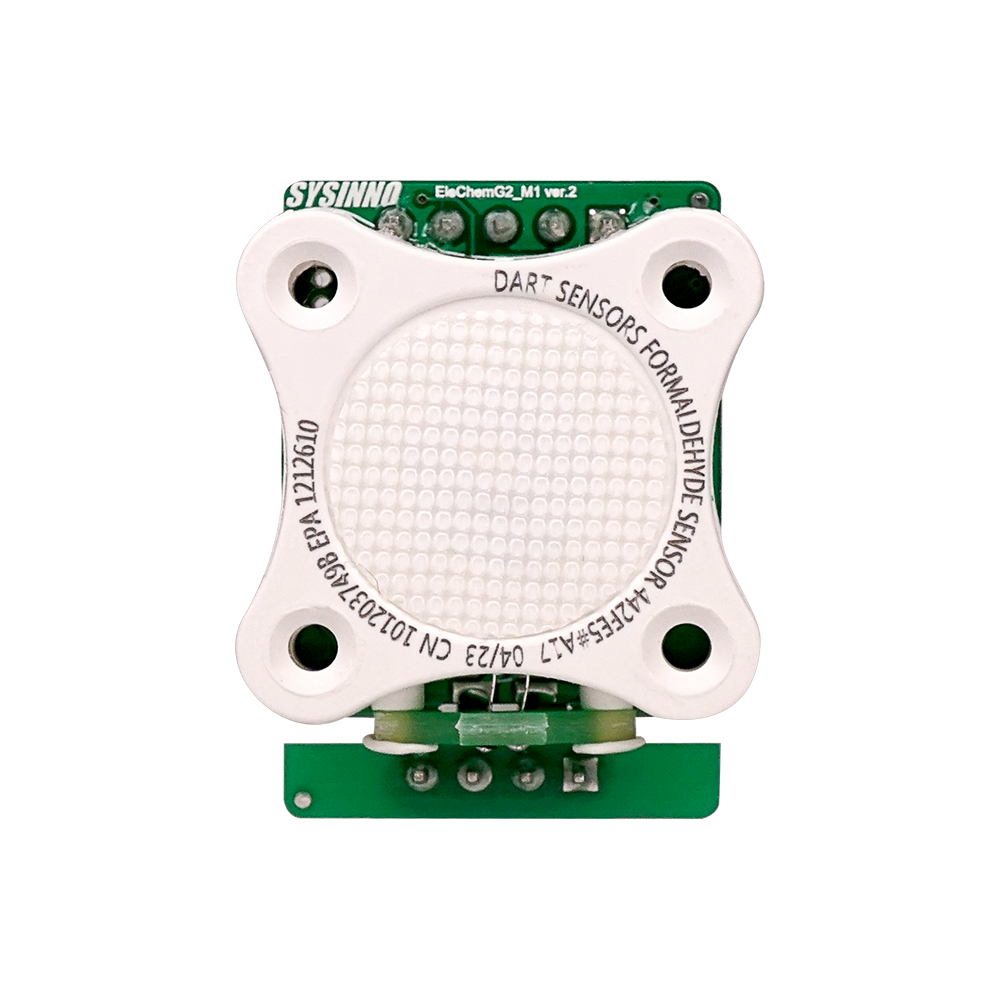

IAGM1

Air Sensor Module

Formaldehyde Gas Sensor Module

Features

Fast response and recovery time
High stability & long lifespan
Cost-effective with high performance
Wide operating ranges :
- Temperature: -10 to +50°C
- Humidity: 15% to 90%
- VDD: 3.1V to 3.5V
Hassle-free operation:
- On-chip data processing
- No external libraries required
- No impact on MCU performance

BORN FOR SUPERIOR PERFORMANCE

IAGM1 is a digital formaldehyde gas sensor. Idea for indoor air quality monitoring, security monitoring or wireless sensor networks to detect formaldehyde concentration near the installation location. This sensor is a proven and maintenance-free technology, designed for high performance and reliability.

SPECIFICATIONS

Model Name	IAGM1
Detection	Formaldehyde (HCHO)
Principle	Electrochemical
Measurement Range (ppm)	0.01 ~ 5
Resolution (ppm)	0.01
Accuracy (ppm)	±0.02±10% of Reading
Response Time (T90) (sec)	<30
Operation Temperature	-10°C ~ 50°C (Ta)
Operation Humidity (%RH)	15 ~ 90
Expected Operating Life	3 Years
Power Supply (V)	3.1 ~ 3.5
Power Consumption (mW)	<100
Interface	I²C
Dimension (L x W x H/mm)	32 x 25 x 10

ORDER INFORMATION

P/N	Description
EA3-2AASMM40I12D0	IAGM1 HCHO Sensor Module

For more information, please contact our support.
