IAGCO

Air Sensor Module

Carbon Monoxide Sensor Module

Features

Fast response and recovery time
High stability & long lifespan
Cost-effective with high performance
Wide operating ranges :
- Temperature: -10°C to +50°C
- Humidity: 15% to 90%
- VDD: 3.1V to 3.5V
Hassle-free operation:
- On-chip data processing
- No external libraries required
- No impact on MCU performance

BORN FOR SUPERIOR PERFORMANCE

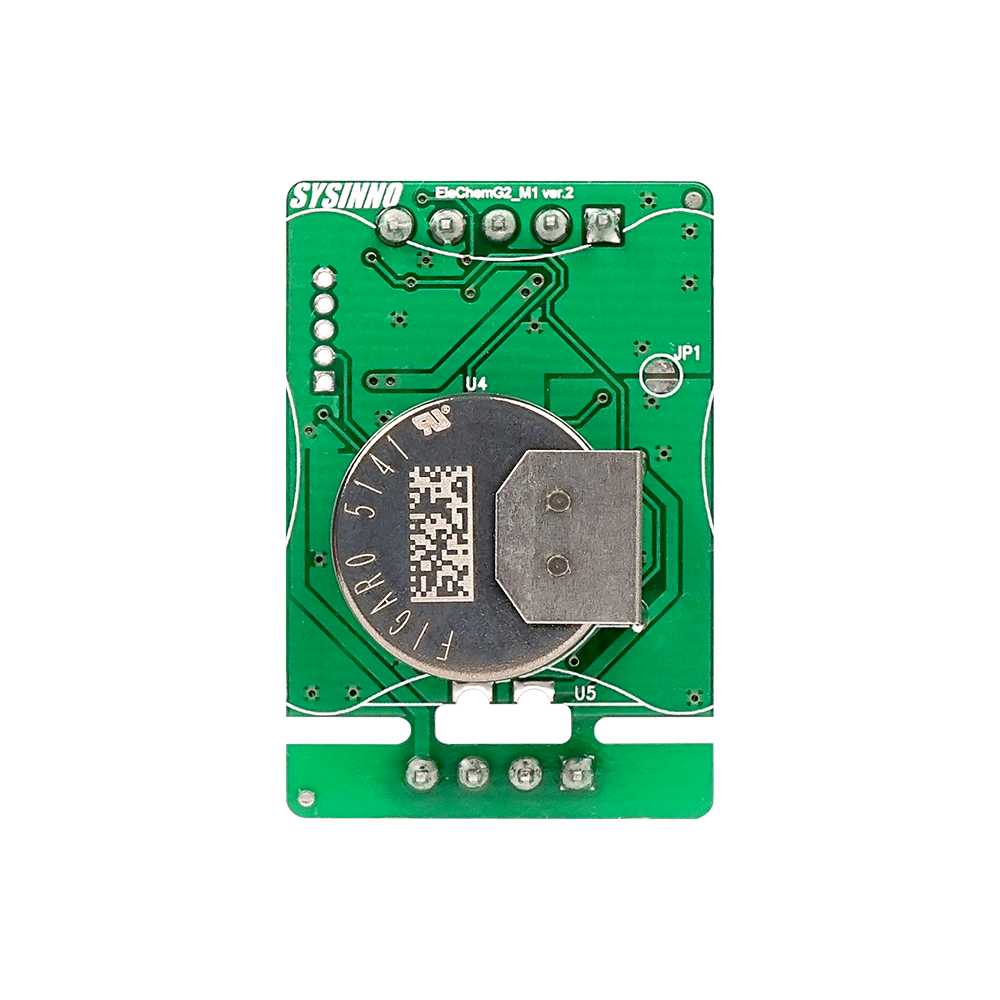

IAGCO is a digital carbon monoxide gas sensor. Idea for indoor air quality monitoring, security monitoring or wireless sensor networks to detect carbon monoxide concentration near the installation location. This sensor is a proven and maintenance-free technology, designed for high performance and reliability.

SPECIFICATIONS

Model Name	IAGCO
Detection	Carbon Monoxide (CO)
Principle	Electrochemical
Measurement Range (ppm)	0 ~ 1000
Resolution (ppm)	0.1
Accuracy (ppm)	±5±5% of Reading
Response Time (T90) (sec)	<30
Operation Temperature	-10°C ~ 50°C (Ta)
Operation Humidity (%RH)	15 ~ 90
Expected Operating Life	3 Years
Power Supply (V)	3.1 ~ 3.5
Power Consumption (mW)	<100
Interface	I²C
Dimension (L x W x H/mm)	32 x 21 x 11

ORDER INFORMATION

P/N	Description
EA3-2AASMM10I12F0	IAGCO CO Sensor Module
