I330EAC-IK3

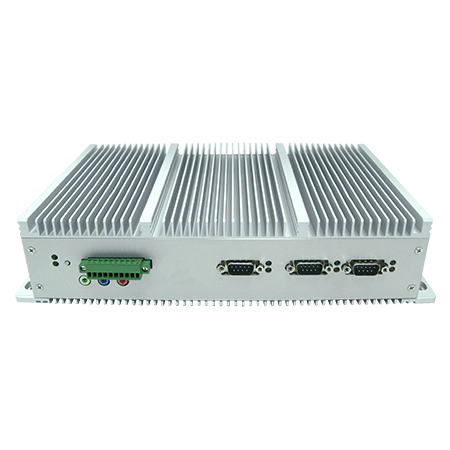

Intel® Core™ i5-7200U Marine Industrial Box pc

KEY FEATURES

• Design for Marine Industrial Box pc, M2M application
• 7th Generation (kaby Lake) Intel® Core™ i5-7200U 2.5GHz (turbo to 3.1GHz)
• 1 x SODIMM DDR4 2133 MHz (max , 16GB)
• 3x RS422/485 Serial Ports with Isolation Protection
• 1x RS232 Serial Ports
• 2x Giga LAN, 2 x USB, 1x HDMI, 1 x VGA
• Fanless, High efficiency thermal design w/ sealed construction
• 1.5KV DC power isolation resistance

Download Datasheet

Industrial IoT embedded computers

Industrial IoT embedded computers with power ignition control, 1 x M.2 2242 SSD 64GB storage.

Fanless Cooling System

We use well-defined thermal analysis procedures to verify IPC
systems to meet the harsh environment applications. Especially
in fanless cooling design, we develop a heat-sink or heat-pipe solution to conduct the heat and the airflow for the best thermal solution. In the fan cooling system, we will analyze the system's thermal profiles before designing it to ensure the most efficient heat convection.

RS422/485 Communication with Isolation Protection

Winmate's multi-port serial cards can be equipped with various high-performance peripheral devices in field devices that use RS-232/422/485 serial communication protocol. Each interface card requires only one PCI or ISA slot to provide independent serial channels.
