FM07

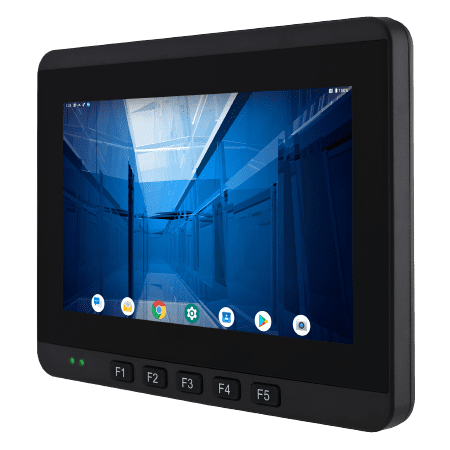

M7" ARM A53 Android vehicle mounted pc

KEY FEATURES

• 7” 1024 x 600 panel with projected capacitive Multi­Touch screen
• ARM A53 Quad Core 2.0GHz Android vehicle mounted pc
• Wide power input 9-24V DC with ignition
• M12 waterproof connectors , IP65 waterproof and dustproof
• Shock and vibration resistance according to MIL-STD-810H
• Support Android or Linux operating system

Download Datasheet

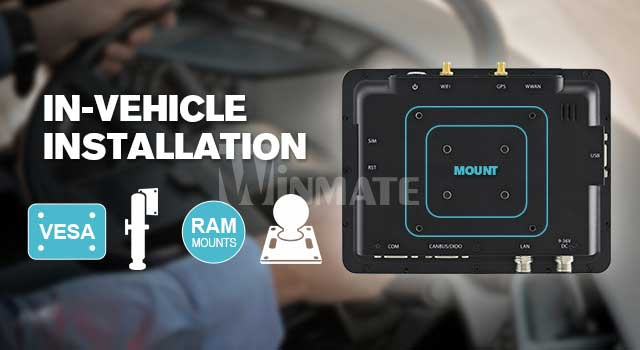

Easy In-Vehicle Installation

Winmate FM07 series supports both VESA mount and RAM mounts
to help you save the time and ease installing the vehicle-mounted
computer. The FM07 is easily mounted and fully-rugged, helps you
to have higher work efficiency.

Vehicle Power Solution

Wide power input with the ignition control feature detects the ignition signal status and allows users to control the on or off delay time setting through the customized software utility. Power input voltage varies by model.

Programmable Function Keys

Save the time on finding your favored application on the screen
by using 5 programmable function keys. Customize the function
for your unique application.

Wireless Connectivity

The FM07 series vehicle-mounted computer features wireless connectivity Wi-Fi, BT, and GPS to help you stay connected no matter where a task brings you. Add an optional WWAN feature for your in-vehicle IoT application.

Built to Survive

The FM07 is a fixed mount computer built to survive the rigors of
the road. Vibration and shock-resistant, the FM07 series is compliant
with the MIL-STD-810H standard, IP65 water and dustproof with M12 waterproof connectors. Winmate’s FM07 Series is built to survive extreme weather, operates through temperature changes from -20°C to 60°C and is suitable for cold storage applications.
