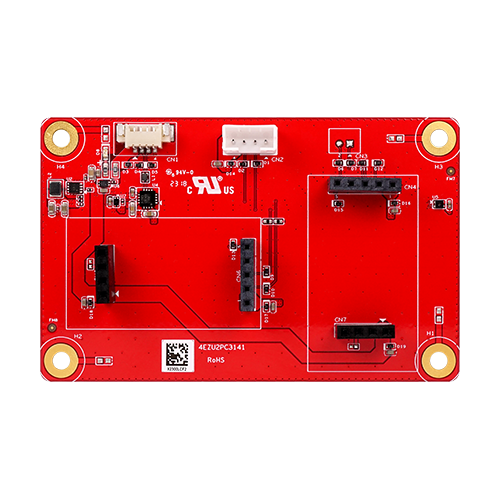

EZU2-I301

Air Sensor Module

USB to I²C Sensor Carrier Board

Supports

SYSINNO Sensor Modules, including VOC, HCHO, CO2, CO, O3, and PM sensors
Three I²C interface with power output
HID to I²C Master specification

Features

Integrated Relative Humidity and Temperature Sensor
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Supports operating temperature from -40°C to 85°C

Download Datasheet

BORN FOR SUPERIOR PERFORMANCE

The EZU2-I301 is a sensor carrier board. In addition to its existing humidity and temperature sensing, the product can seamlessly integrate with SYSINNO Sensor Modules, offering a wide range of environmental monitoring capabilities. This makes it ideal for smart cities, medical, intelligent buildings, and educational applications. Additionally, it provides a Windows / Linux SDK for comprehensive sensor data acquisition.

SPECIFICATIONS

Model Name	EZU2-I301
Module Type	USB to I²C Sensor Carrier Board
Form Factor	Other
Input I/F	USB 2.0 Full Speed
Output I/F	I²C (3.3V)
Output Port	3
Output Connector	4 x P2.54mm Pin Header (CN4 + CN5?CN6 + CN7) 1 x P2.0mm Connector (CN2)
Max. Power Consumption	0.695W (3.3V, 139mA)
Dimension (L x W x H/mm)	80 x 50 x 8.82
Temperature	Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	50G@0.5ms
Warranty	3 Years
Notes	Human Interface Device (HID) class is natively supported in almost all operating systems. No custom driver is required to be installed.

ORDER INFORMATION

P/N	Description
EZU2-I301-W1	USB to I²C Sensor Carrier Board
