EXPC-F2120W Series

Features and Benefits  12.1 inch 16:10 display  High-performance Tiger Lake Intel® Core™ i7/ Core™ i3 or Intel® Celeron® processor  Built-in light sensor for auto brightness control  1200-nit sunlight-readable anti-glare display  Optical bonding of the display for deploying in harsh environments  Fanless thermal design for efficient heat dissipation in high-temperature environments  UL C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22 compliant  Front IP66 and rear IP42 certified  -40 to 70°C operating temperature range  Options for 5G and Wi-Fi 6 connections  Designed for deploying in hazardous locations and for mission-critical applications

Introduction

The EXPC-F2120W Series consists of 12.1-inch panel computers with a 11th Gen Intel Core™ i processor that deliver a reliable, durable, and versatile platform for use in industrial, hazardous, and mission-critical environments. The EXPC-F2120W panel computers come with a rich set of communication interfaces to satisfy all your industrial-application scenarios. The panel computers are also provided with a DisplayPort and VGA video outputs for extending the display.

The EXPC-F2120W panel computers come in a fanless design for operations in the -40 to 70°C temperature range and a streamlined enclosure for efficient heat dissipation, making them the most reliable industrial platforms available for harsh, hot, outdoor environments such as oil and gas fields, drilling platforms, and power stations, as well as smart heater solutions. The panel computers are also specifically designed with sunlight-readable features such as a 1200-nit LCD panel, projected-capacitive, glove-friendly, multi-touch screen, optical bonding, and anti-glare design, to provide an excellent user experience for outdoor applications.

Appearance

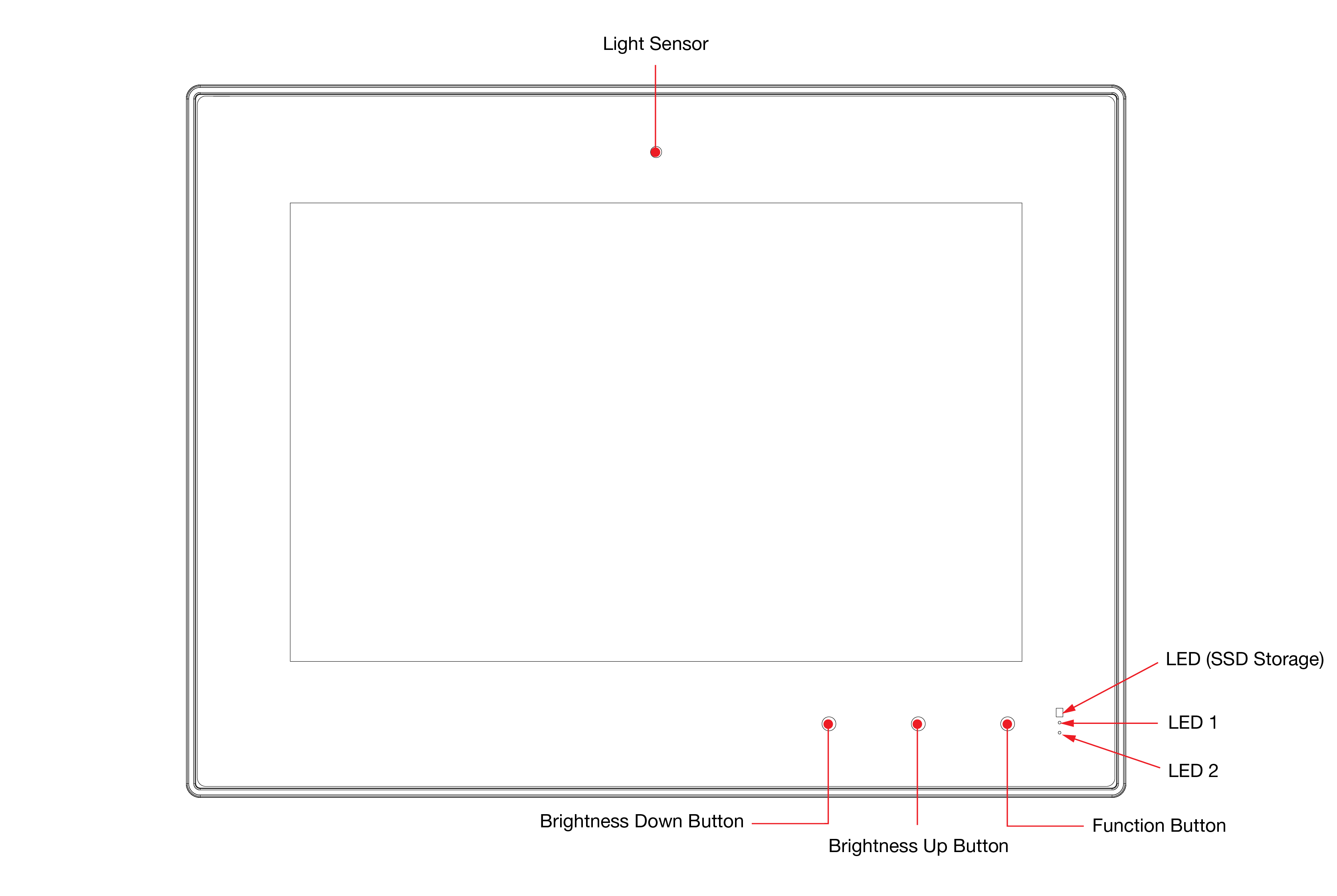

Front View

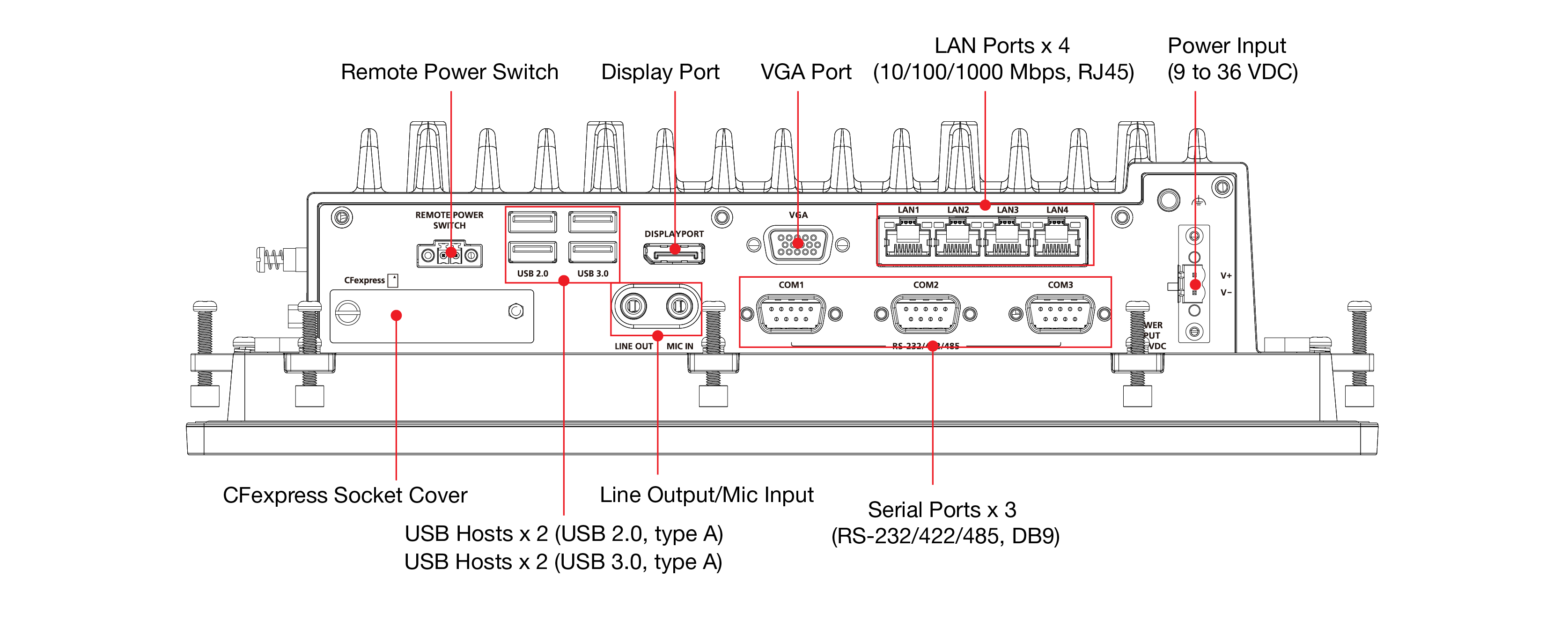

Bottom View

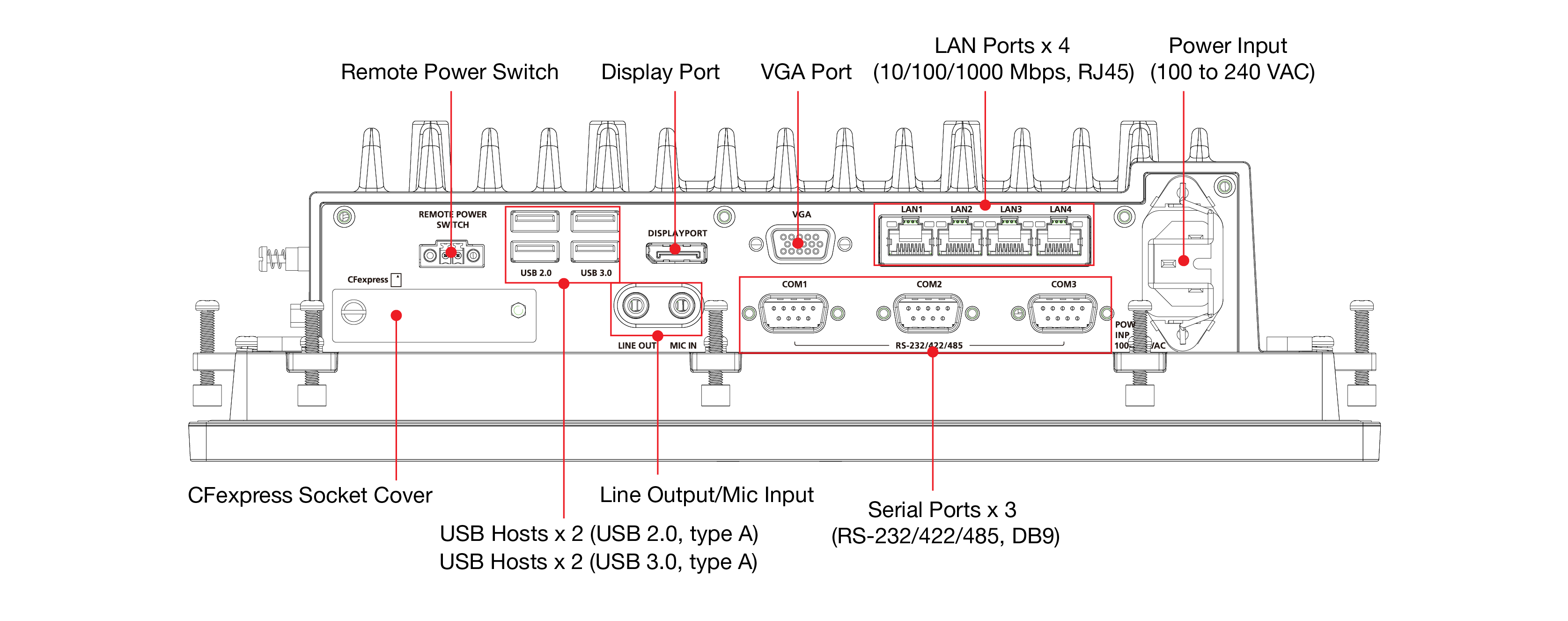

Models With AC Power Input

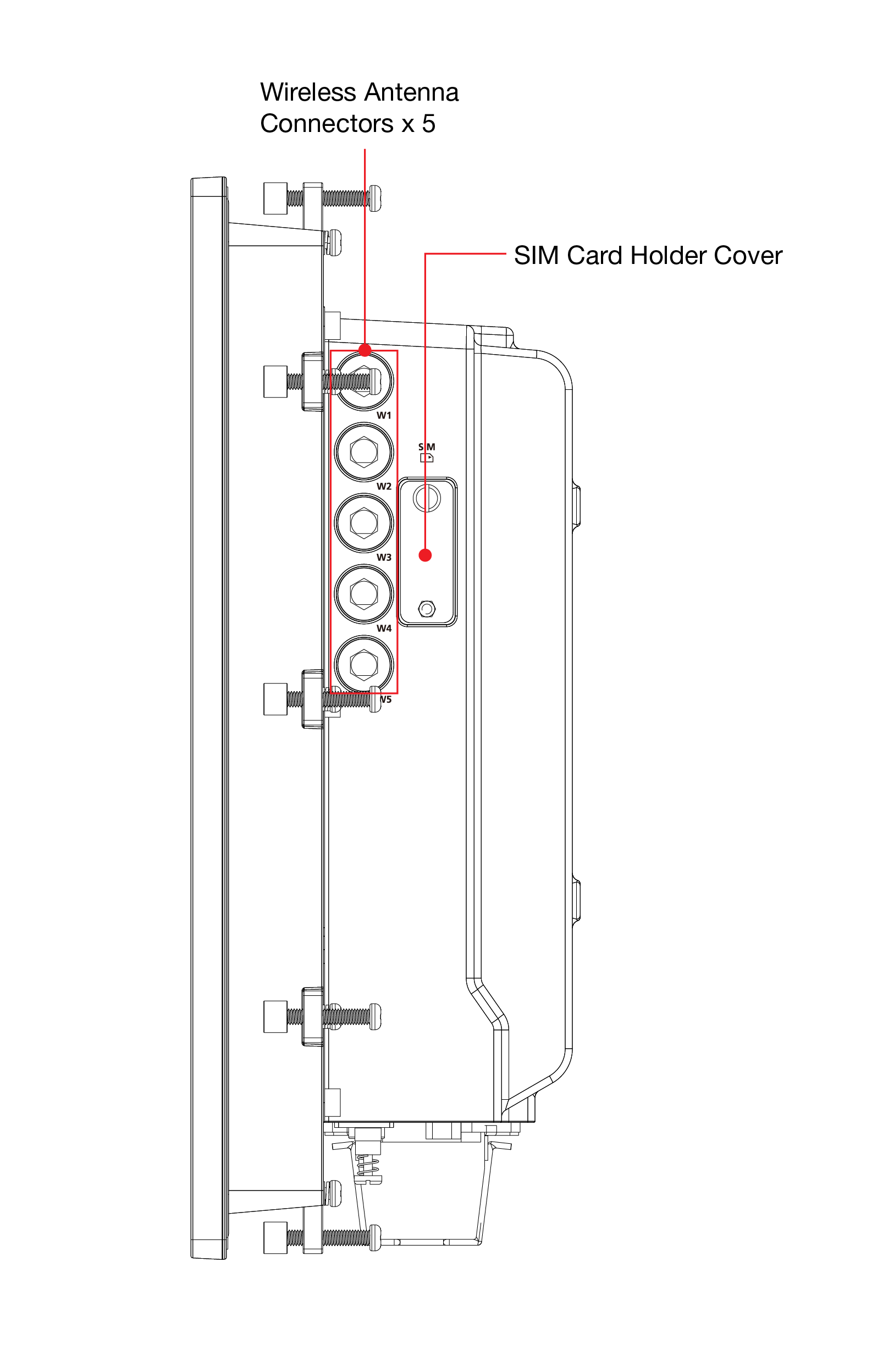

Side View

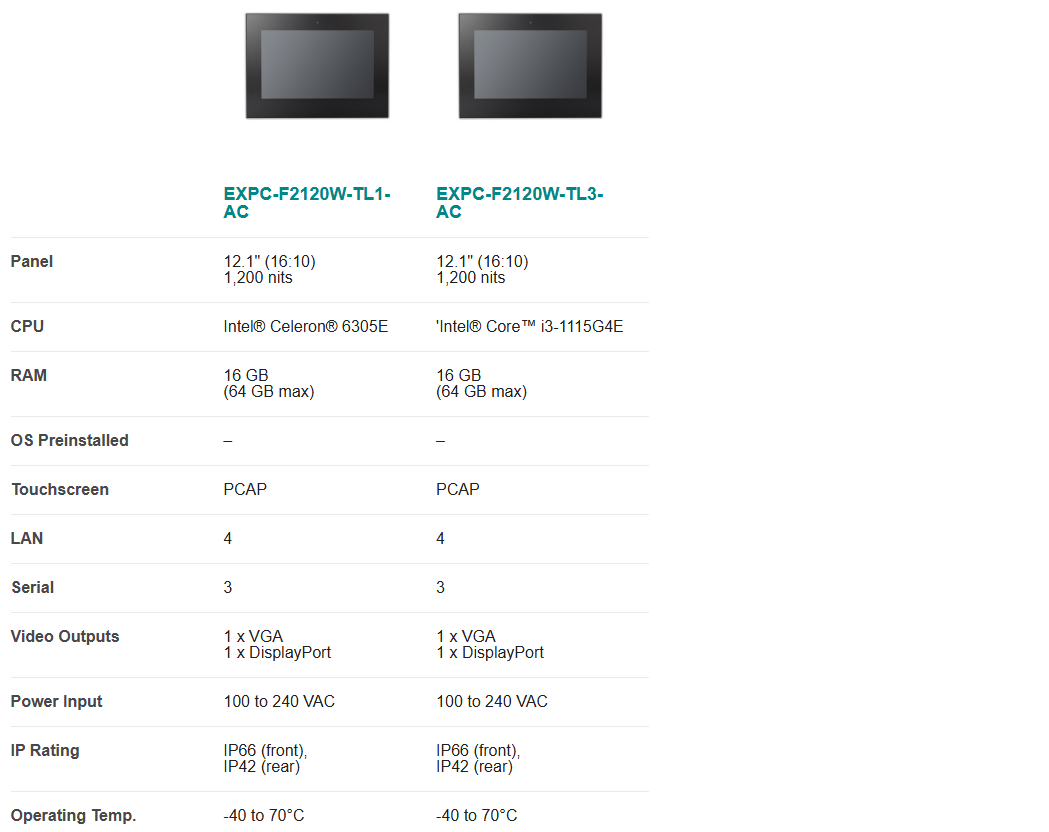

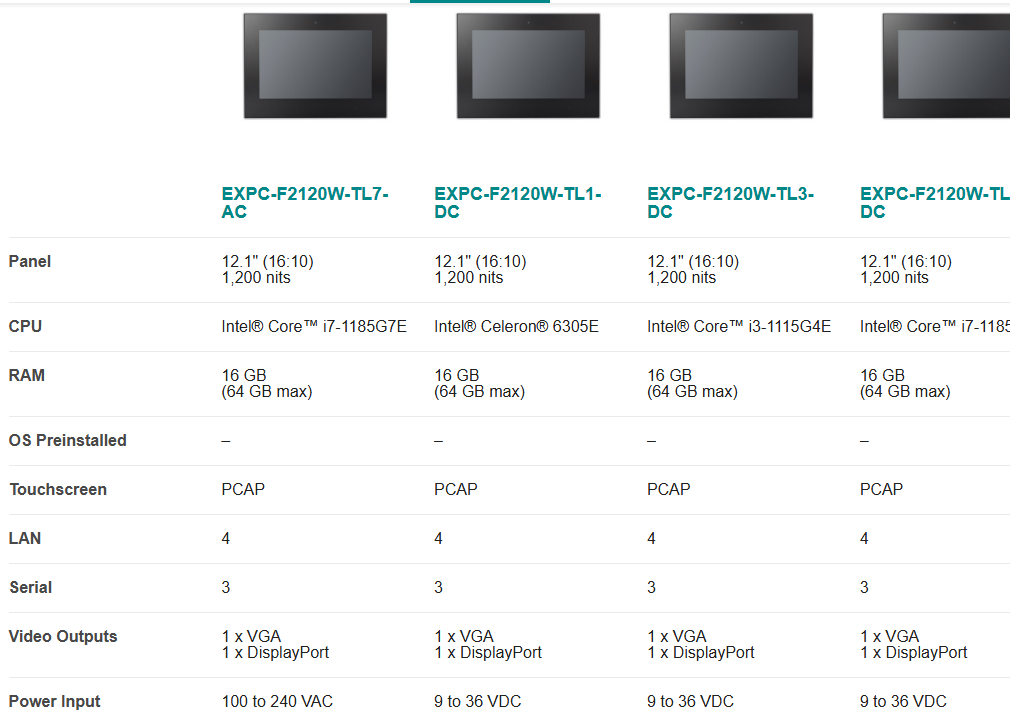

Models

Datasheet
