| Key Features - Intel® Tiger lake U Soc CPU module
- Intel® Core I7/I5/I3/Celeron
- Designed according to Intel IEN Type F specification
- Dual-channel DDR4 3200Mhz?up to 64GB
- 4*PCIe×1 or 1*PCIe×4?1*PCIe Gen3 lanes?2*PCIe×1 Gen4 lanes
- 3*GbE LAN?2*SATA?2*DDI?4*USB3.1?8*USB2.0?3*COM?1*HDA?eSPI?DIO
- DC IN 12v
Datasheet |

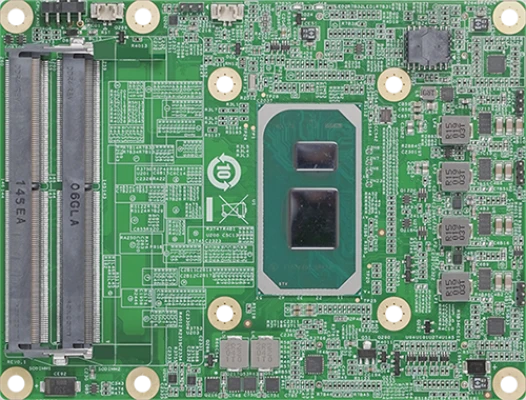

EOM-I912 | Node Module Computer
Intel® Tiger lake U Soc CPU module, designed according to Intel IEN Type F specification, supports dual-channel DDR4 3200Mhz, up to 64GB. DC IN 12V .
EOM-I912 powered by Intel® Tiger lake U Soc CPU, designed according to the INTEL industrial edge node Type F standard, supporting dual-channel DDR4 3200MHz memory, up to 64GB. EOM-I912 is a compact product with low power consumption and flexible expansion. It is suitable for medical imaging, military, rail transit and power applications.
Specification
CPU | CPU | i7-1165G7 | i5-1135G7 | i3-1115G4 | Celeron 6305E |
Cores | 4 | 4 | 2 | 2 |
Total Threads | 8 | 8 | 4 | 2 |
Frequency | 2.8~4.7 GHz | 2.4~4.2 GHz | 3.0~4.1 GHz | 1.8 GHz |
TDP-up | 28W | 28W | 28W | 15W |
Memory | Dual-channel DDR4 2*260-pin SO-DIMM, up to 3200MHz, 64GB |
LAN | 3* GbE Lanes |
Graphics | Intel UHD Graphics or Iris® X? Graphics , Supports Intel® Deep Learning Boost?DirectX12.1, OpenGL 4.6 and OpenCL 2.0 HDMI 2.0 max. res. 4096x2304@60Hz?DP 1.4 max. res. 7680x4320@60Hz? eDP max. res. 4096x2304@60Hz |
Connector 1 signal | eSPI and Fusa | |
PCIe Gen3 | 4×1 or 1×4 |
PCIe Gen3 or USB3.1 | 2 |
COM | 1 |
USB2.0 | 3 |
SATA | 1 |
DDI | 1 |
GPIO | Up to 15 channels |
F-Panel: Power SW/Reset/PW-LED/HDD-LED |
Connector 2 signal | PCIe Gen3 | 1 |
PCIe Gen3 or USB3.1 | 2 |
CPU PCIe Gen4 | 2 |
HDA | 1 |
USB2.0 | 5 |
SATA | 1 |
DDI | 1 |
COM | 2 |
GPIO | Up to 30 channels |
Power Supply | DC IN 12V |
Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
OS Support | Windows 10/Windows 11 64 bit, SUSE, Ubuntu, Wind River, Linux |
Dimension | (W*H)?133*95mm |
Operating temperature | Standard: 0 ~ 60 °C?Extend: -40 ~ 85 °C |
Storage Temperature | -40°C~85°C |
Storage Humidity | 10~90%@40°C, Non-condensing |
EMC/Certification | CE/FCC Class B |
