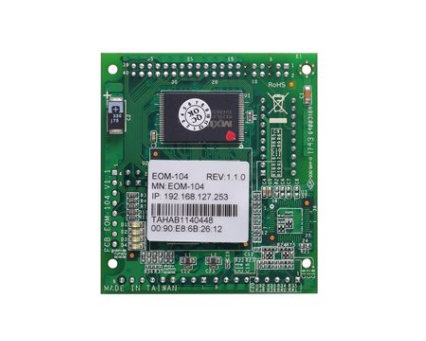

EOM-104 Series

Features and Benefits  10/100BaseT(X) and 100BaseFX Ethernet interfaces  Turbo Ring and RSTP/STP for network redundancy  SNMP and email alerts for event trapping and notifications  Two-thirds the size of a business card  Low power consumption  -40 to 75°C operating temperature range

Introduction

The EOM-104 Series is designed for device manufacturers who would like to embed Ethernet modules in their products to enhance performance and reliability. The EOM-104 Series provides an easy and cost-effective integrated solution for adding an Ethernet switch module to an existing product.

The modules support 10/100M Ethernet transmission and come with Turbo Ring’s fast recovery time of under 20 ms. The EOM-104 Series provides a rich set of peripherals, such as Turbo Ring Enable and GPIO programming pins, and is an ideal solution for embedded Ethernet applications.

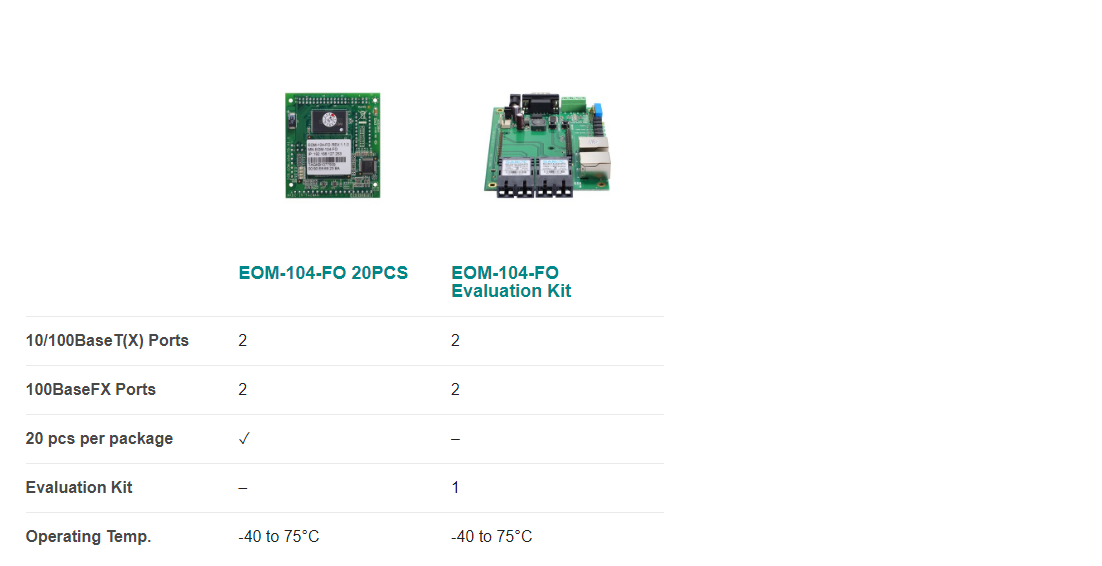

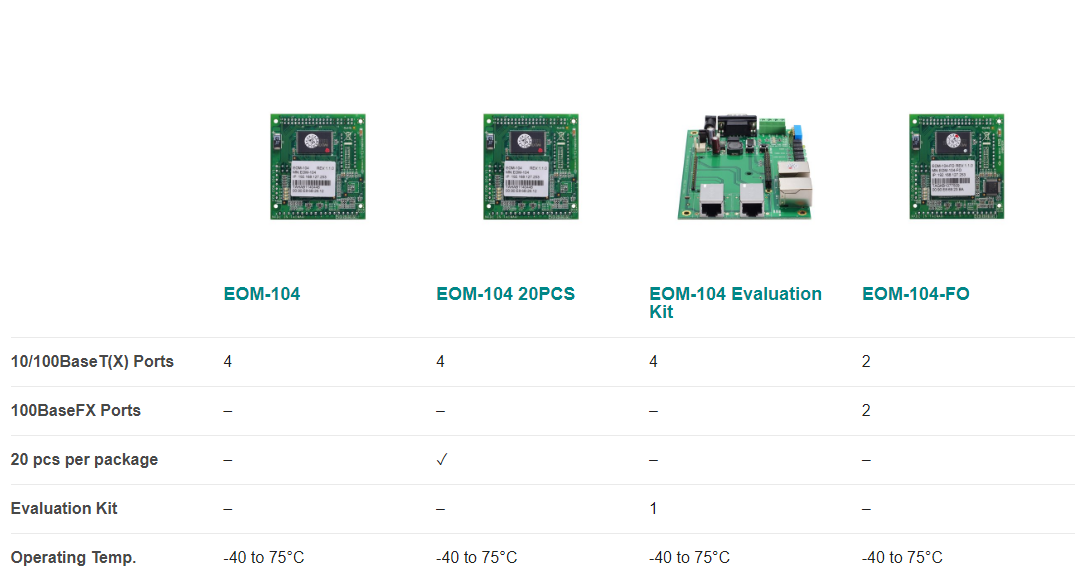

Models
