OVERVIEW

In modern industrial settings, effective control and monitoring are crucial for ensuring smooth and efficient operations. This is where Human-Machine Interface (HMI) monitors come in. HMI monitors are specialized displays that allow operators to interact with machines and systems in real-time, providing crucial feedback and control.

When it comes to EL series HMI panel PC, Winmate is a leading name in the industry. With a wide range of HMI monitors designed specifically for industrial settings, Winmate provides reliable and efficient solutions for a variety of industrial applications.

One of the key features of the Winmate EL series HMI panel PC is its rugged and durable design. Built to withstand the toughest industrial environments, these HMI are resistant to shock, vibration, and extreme temperatures. This means that they can be used in a wide range of industrial settings, including manufacturing plants, warehouses, and even outdoor locations.

Another important feature of Winmate EL series HMI panel PC is its ease of use. Designed with intuitive user interfaces and touchscreens, these monitors make it easy for operators to interact with machines and systems, reducing the risk of errors and increasing efficiency.

Winmate EL series HMI panel PC also offers a variety of connectivity options, including Ethernet, USB, and serial ports, allowing for seamless integration with existing industrial systems. This means that operators can easily access and control a wide range of machines and systems from a single EL series HMI panel PC.

In addition to their durability, ease of use, and connectivity options, Winmate EL series HMI panel PC also comes in a range of sizes and resolutions, making them suitable for a wide range of applications. From compact 5-inch monitors to large 21-inch displays, Winmate has an EL series HMI panel PC to suit every need.

Winmate EL series HMI panel PC are the ideal solution for industrial control and monitoring. With their rugged and durable design, intuitive user interfaces, and wide range of connectivity options, these monitors provide reliable and efficient solutions for a variety of industrial applications.

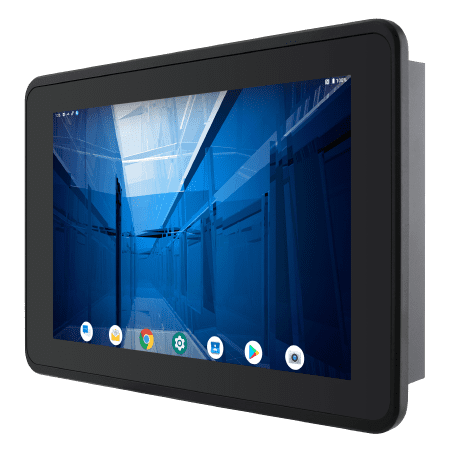

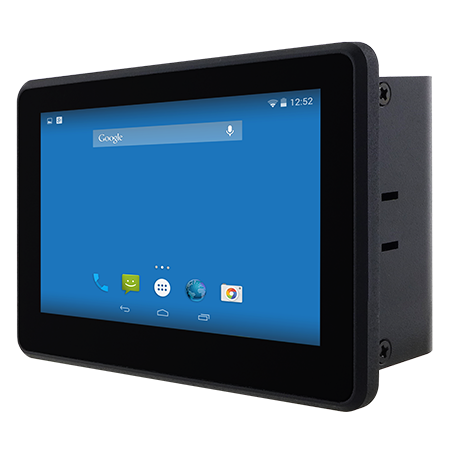

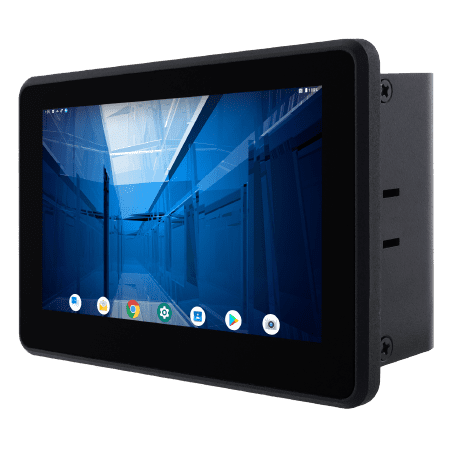

W04IM3S-ELT1 4.3" ARM A53 EL Series HMI Panel PC FEATURES 4.3” 480 x 272 Resolution with P-Cap Multi-touch screen ARM A53 Quad Core 2.0GHz CPU ARM HMI Panel PC Android 11 1 x USB , 1 x Micro USB, 1 x RS485 , 1 x RJ45 / LAN Support Android or Linux operating system Learn more...	W04FA3S-ELT1 4.3" NXP i.MX6 EL Series HMI Panel PC FEATURES 4.3” 480 x 272 Resolution with P-Cap Multi-touch screen NXP i.MX6 Dual Core 1GHz Fanless cooling system and Ultra-low power consumption Front IP65 Water and Dust Proof 1 x USB , 1 x USB OTG , 1 x RS485 , 1 x RJ45 / LAN Learn more...	W07IM3S-ELT1 7" ARM A53 EL HMI Panel PC FEATURES 7” 1024 x 600 Resolution with P-Cap Multi-touch screen ARM A53 Quad Core 2.0GHz CPU Android 11 HMI panel pc 1 x USB , 1 x Micro USB, 1 x RS485 , 1 x RJ45 / LAN Support Android or Linux operating system Learn more...

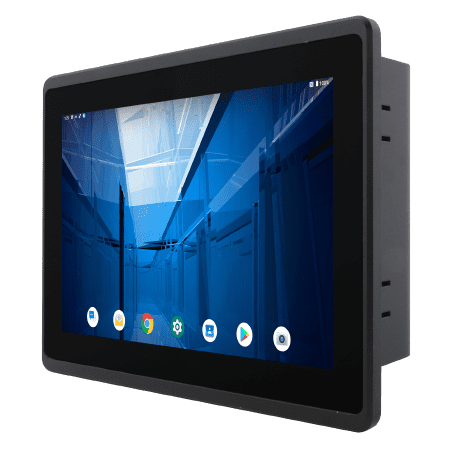

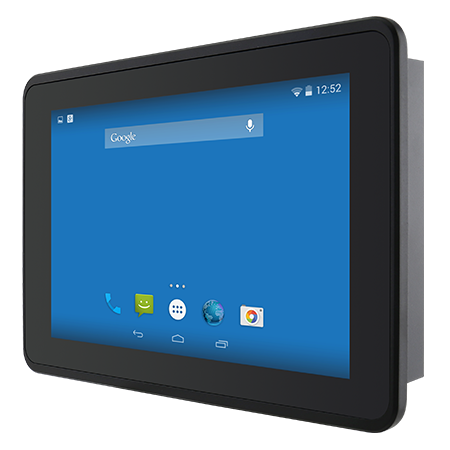

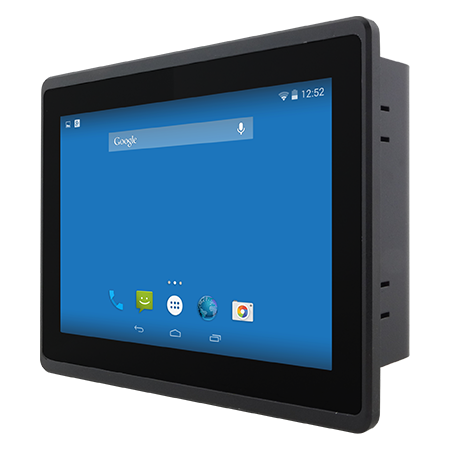

W07FA3S-ELT1 7" NXP i.MX6 EL Series HMI Panel PC FEATURES 7” 1024 x 600 Resolution with P-Cap Multi-touch screen NXP i.MX6 Dual Core 1GHz Fanless cooling system and Ultra-low power consumption Front IP65 Water and Dust Proof 1 x USB , 1 x USB OTG , 1 x RS485 , 1 x RJ45 / LAN Learn more...	W10IM3S-ELH2 10.1" ARM A53 EL Series HMI Panel PC FEATURES 10.1” 1280 x 800 Resolution with P-Cap Multi-touch screen MediaTek ARM A53 Quad Core 2.0GHz CPU Android 11 1 x USB , 1 x Micro USB, 1 x RS485 , 1 x RJ45 / LAN Support Android or Linux operating system Learn more...	W10FA3S-ELH2 10.1" NXP i.MX6 EL Series HMI Panel PC FEATURES 10.1” 1280 x 800 Resolution with P-Cap Multi-touch screen NXP i.MX6 Dual Core 1GHz Fanless cooling system and Ultra-low power consumption Front IP65 Water and Dust Proof 1 x USB , 1 x USB OTG , 1 x RS485 , 1 x RJ45 / LAN Learn more...

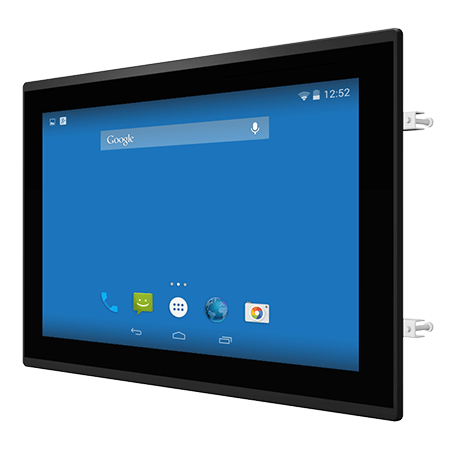

W15FA3S-ELA4 15.6" NXP i.MX6 Android HMI Panel PC FEATURES 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (P-CAP) NXP i.MX6 Dual Core 1GHz, Android HMI Panel PC Fanless cooling system and Ultra-low power consumption Front IP65 Water and Dust Proof 1 x USB; 1 x RS485; 1 x USB OTG; 1 x RJ45/LAN Learn more...
