| Features and Benefits- 8 IEEE 802.3af and IEEE 802.3at PoE+ standard ports
- 36-watt output per PoE+ port in high-power mode
- Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches),
RSTP/STP, and MSTP for network redundancy - RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC
ACL, HTTPS, SSH, and sticky MAC-addresses to enhance network security - Security features based on IEC 62443
- EtherNet/IP, PROFINET, and Modbus TCP protocols supported for device management and monitoring
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
|
Introduction
The EDS-G512E Series is equipped with 12 Gigabit Ethernet ports and up to 4 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. It also comes with 8 10/100/1000BaseT(X), 802.3af (PoE), and 802.3at (PoE+)-compliant Ethernet port options to connect high-bandwidth PoE devices. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of triple-play services across a network quickly.
Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase the reliability of your system and improve the availability of your network backbone. The EDS-G512E Series is designed specifically for communication demanding applications, such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.
Additional Features and Benefits
Command line interface (CLI) for quickly configuring major managed functions
Advanced PoE management function (PoE port setting, PD failure check, and PoE scheduling)
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring
IGMP snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
Supports the ABC-02-USB (Automatic Backup Configurator) for system configuration backup/restore and firmware upgrade
Port mirroring for online debugging
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
RADIUS, TACACS+, MAB Authentication, SNMPv3, IEEE 802.1X, MAC ACL, HTTPS, SSH, and sticky MAC address to enhance network security
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic warning by exception through email and relay output

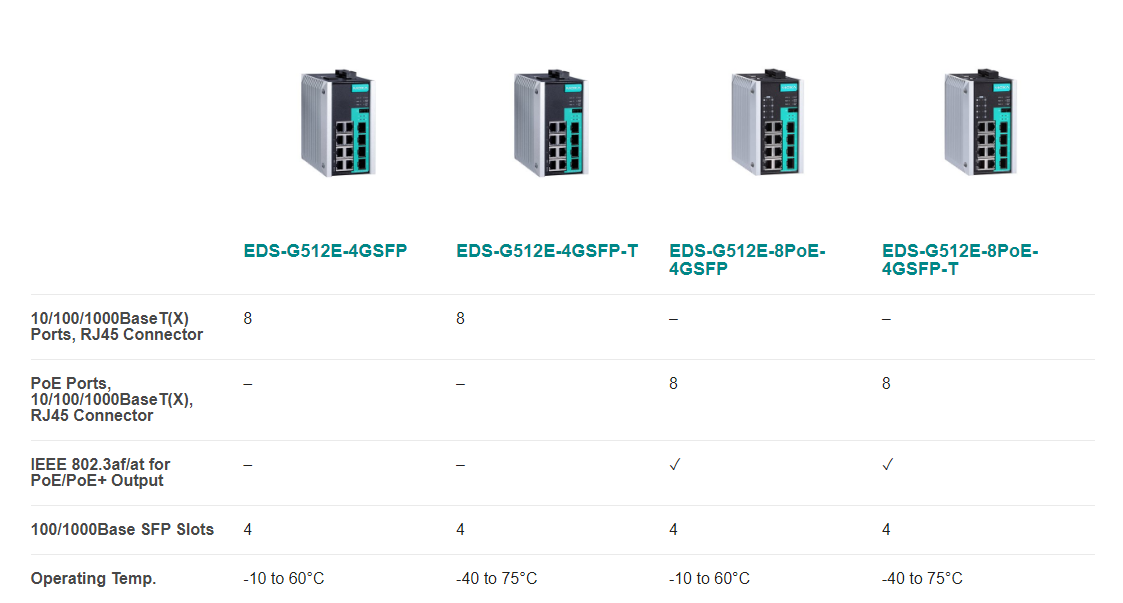

Models
