EDS-G205A Series

Features and Benefits  Full Gigabit Ethernet ports  IEEE 802.3af/at, PoE+ standards  Up to 36 W output per PoE port  12/24/48 VDC redundant power inputs  Supports 9.6 KB jumbo frames  Intelligent power consumption detection and classification  Smart PoE overcurrent and short-circuit protection  -40 to 75°C operating temperature range (-T models)

Introduction

The EDS-G205A-4PoE switches are smart, 5-port, unmanaged full Gigabit Ethernet switches supporting Power-over-Ethernet on ports 2 to 5. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-G205A-4PoE switches enable centralization of the power supply, providing up to 36 watts of power per port and reducing the effort needed for installing power.

The switches can be used to power IEEE 802.3af/at standard devices (power devices), eliminating the need for additional wiring, and they support IEEE 802.3/802.3u/802.3x with 10/100/1000M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical high-bandwidth solution for your industrial Ethernet network.

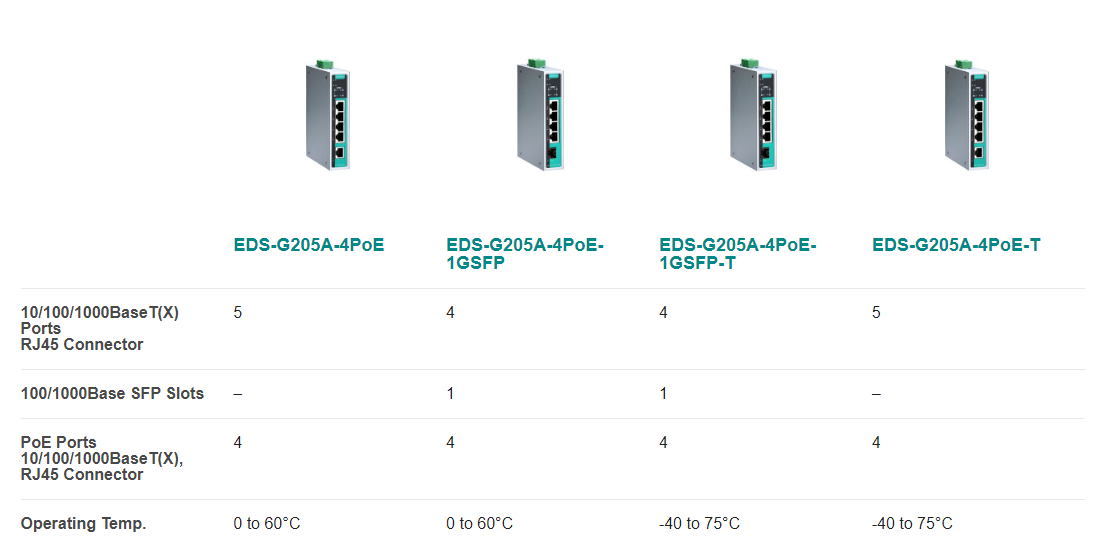

Models
