 | Features and Benefits
|

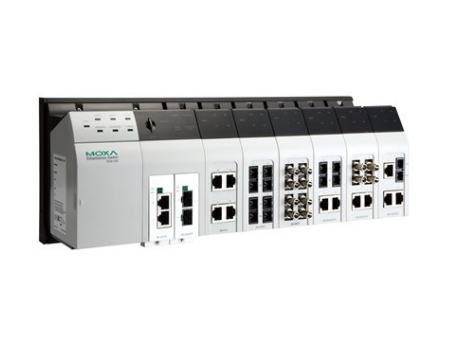

The EDS-728 Series features a versatile modular design that allows different combinations of fiber and copper modules, creating a wide array of connection options ideal for any automation network. The modular design lets you install up to 4 Gigabit ports and 24 Fast Ethernet ports. The EDS-728 Series is specially designed for redundant Gigabit network backbones and uses a modular configuration to provide a high degree of flexibility for network expansion.
Top network performance, security, and reliability are assured through the EDS-728 Series advanced management and security features. The EDS-728 Series also features industrial-grade construction, a console port for automatic configuration backup, and an angled LED troubleshooting panel that can be conveniently viewed from both horizontal and vertical orientations.
Command line interface (CLI) for quickly configuring major managed functions
Supports advanced VLAN capability with Q-in-Q tagging
Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
Compatible with PROFINET protocol for transparent data transmission
IGMP snooping and GMRP for filtering multicast traffic
IEEE 802.1Q VLAN and GVRP protocol to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
SNMPv1/v2c/v3 for different levels of network management
RMON for proactive and efficient network monitoring
Bandwidth management to prevent unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Port mirroring for online debugging
Automatic warning by exception through email and relay output
Digital inputs for integrating sensors and alarms with IP networks
Redundant, dual DC power inputs
Configurable by Web browser, Telnet/serial console, CLI, Windows utility, and ABC-01 automatic backup configurator
