EDS-505A Series

Features and Benefits

Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Supports MXstudio for easy, visualized industrial network management

Introduction

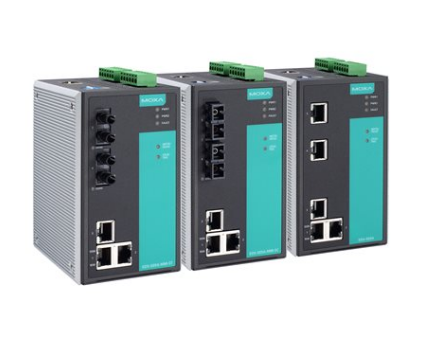

The EDS-505A standalone 5-port managed Ethernet switches, with their advanced Turbo Ring and Turbo Chain technologies (recovery time < 20 ms), RSTP/STP, and MSTP, increase the reliability and availability of your industrial Ethernet network. Models with a wide operating temperature range of -40 to 75°C are also available, and the switches support advanced management and security features, making the EDS-505A switches suitable for any harsh industrial environment.

Additional Features and Benefits

Command line interface (CLI) for quickly configuring major managed functions
DHCP Option 82 for IP address assignment with different policies
Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring
Compatible with PROFINET protocol for transparent data transmission
Lock port function for blocking unauthorized access based on MAC address
IGMP snooping and GMRP for filtering multicast traffic

Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism
Port Trunking for optimum bandwidth utilization
RMON for proactive and efficient network monitoring
SNMPv1/v2c/v3 for different levels of network management
Bandwidth management to prevent unpredictable network status
Automatic warning by exception through email and relay output

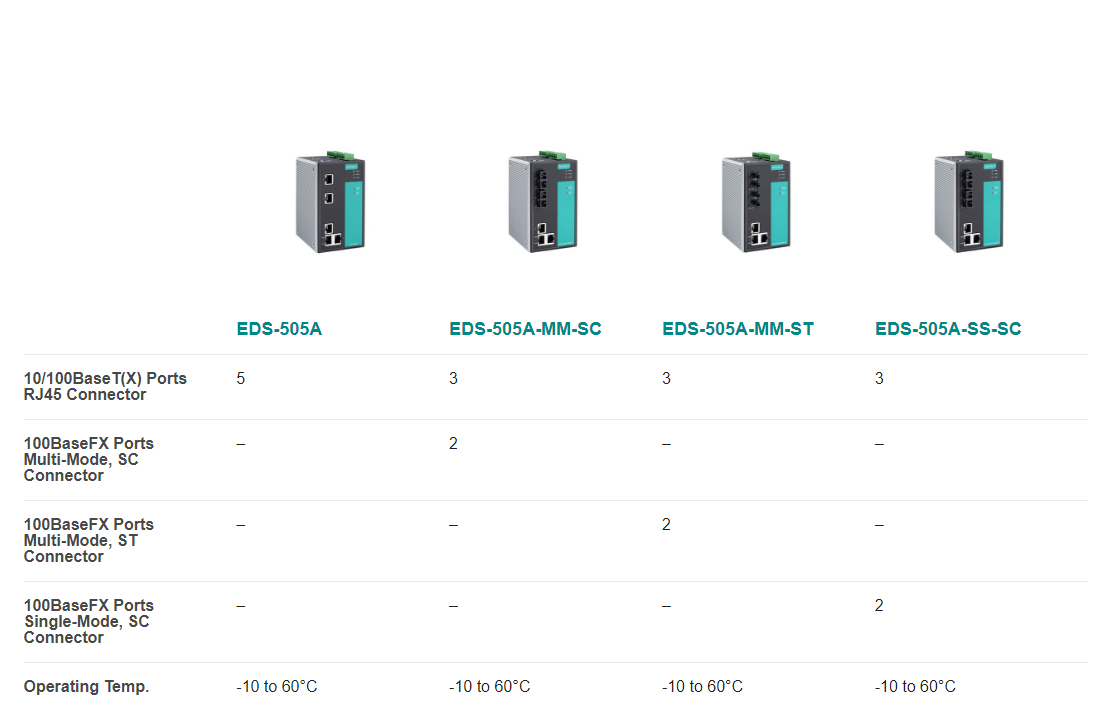

Models
