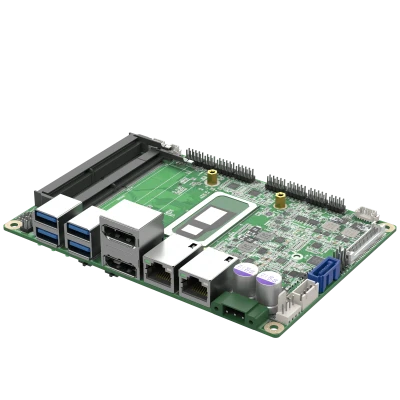

ECM-I913

Key Features

  • Intel® Tiger lake Soc CPU
  • Dual channel DDR4 SODIMM, support 3200MHz, up to 64GB
  • 1*HDMI, 1*DP, 1*48-bit LVDS, 3 independent displays
  • 2*LAN, 4*USB3.2, 2*USB2.0, 4*COM, 1*8-bit DIO
  • 1*M.2 2230 E-key supports WIFI/BT or 1*M.2 3052 B-key with SIM card slot, supports 4G LTE/5G NR
  • 1*full size Mini PCIe, supports PCIe modules
  • 1*SATA3.0 HDD/SSD?1*mSATA(Opt.) for storage
  • Active or passive, two different thickness radiator selection
  • DC IN12V?9-36V wide power input for optional ?OFX-075)

Datasheet

ECM-I913 | Single Board Computer

Intel® Tiger lake U Soc CPU, Dual Channel DDR4?1*HDMI?1*DP?2*LAN?4*USB3.2?4*COM?1*8bit DIO? 1*M.2 B-key/1*M.2 E-key?1*mSATA, 1*SATA3.0, DC 12V power

ECM-I913 is a 3.5-inch embedded mainboard equipped with Intel® Tiger Lake U Soc CPU. It has complete IO functions, flexible selection of power supply, active and passive radiators, and the compact size is suitable for installation in limited space scenarios.  It is very suitable for AGV and AMR, medical inspection, machine vision, industrial control, digital city and smart security and other industries and fields.


Specification

CPUIntel® Tiger lake U Soc CPU (core i3-1115G4/i5-1135G7/i7-1165G7, Celeron 6305)?TDP 12W/15W/28W
System Memory2*260-pin DDR4 SODIMM?supports 3200MHz?up to 64GB
Expansion1* M.2 2230 E-key (USB2.0 signal and PCIeX1 signal)?supports WiFi5/BT5.0
1*M.2 B-key 3052 (USB2.0 signal and PCIeX1 signal)?with SIM slot, supports 4G LTE/5G NR
1*Full size Mini PCIe(PCIeX1 signal) , supports PCIe modules, mSATA signal selection can be realized through BIOS

Graphics



Intel UHD Graphics or iRIS® X? Graphics , Supports Intel Deep Learning boost?DirectX12.1,
OpenGL 4.6 and OpenCL 3.0, HDMI: up to 4096*2304@60Hz, DP: up to 7680*4320@60Hz, LVDS: up to 1920*1200@60Hz, support 3 independent displays
Audio1*Line out & Mic in, Realtek ALC897 HD audio chip, support 5.1 channels
LAN1*Intel I226V PCIe Gig. Ethernet, 10/100/1000Mbps?1*Intel®I219LM , supports iAMT13.0
Storage1*SATA3.0 port, supports up to 6 Gbps transmission speed; 1*mSATA (Opt.)
Rear I/O2*LAN(RJ45); 1*HDMI+1*DP;
4*USB3.2 gen2.0(Type A)?support up to 10 Gbps transmission speed
Internal I/O2*USB2.0(2*4pin dupont pin)?2*RS232/422/485(two 2*5pin dupont pins)?2*RS232(two 2*5pin dupont pins), 1*8-bit DIO(2*5pin dupont pin)?1*F-audio(2*5pin dupont pin)?1*48-bit LVDS(2*20pin DF13 port)?1*SM BUS(1*4pin wafer?, 1*SATA 3.0, 1*FAN
Switch & LED1*HDD LED; 3*CPU Temp.LED (Red is warning, Yellow is high, Green is normal)
1*F_Panel(PowerSW, Reset?Power LED, HDD-LED), 2x5pin dupont pin?1*AT/ATX SW?1*Clear CMOS SW?1*USB 5V/SB SW
Power SupplyDC 12V (1*3pin phoenix socket, colay 2*10pin Dupont mother), it can be connected to OFX-075 75W power board and supports 9-36V wide voltage input
TDP: 45.36W (CPU: i7-1165 G7/4G DDR4/128 SSD)
Watchdog TimerProgrammable timeout interrupt or system reset, 1 to 255 seconds
OS SupportWindows 11*IoT enterprise? Windows 10*IoT enterprise?Android?SUSE?Ubuntu?Wind River?Red Hat*Enterprise?Wind River VxWorks*7?Yocto
Dimension(W*H) : 146*102mm
HeightSignal board: 36mm, the radiator with fan: 37mm, fanless radiator: 52mm, PCB: 1.6mm
Operating Temperature0?60?
Storage Temperature-40°C~85°C
Storage Humidity10~95%@40°C, Non-condensing
EMC/CertificationCE/FCC Class A
