ECM-I910

www.alvasta-tech.com / Enterprises / JHCTECH / Single Board Computer / ECM-I910 /

ECM-I910

Key Features

  • Intel 8th  Whiskey lake U Core ™ i3/i5/i7/Celeron
  • Dual channel DDR4 SODIMM, support 2400MHz, up to 32GB
  • 1*HDMI?1*eDP?1*DP?3 independent 4Kdisplay interfaces
  • 2*LAN?Gig. Ethernet, 10/100/1000Mbps self-adaptive
  • 4*USB3.0?2*USB2.0?4*COM?1*8-bit GPIO
  • 1*M.2 2230 E-key?1*full size Mini PCIe, mSATA
  • signal selection can be realized through BIOS, with SIM card slot, support 4G LTE/ WIFI /BT
  • 1*SATA3.0 HDD/SSD?1*mSATA(Opt.) for storage
  • Optional support for TPM2.0, DC IN 12V, 9-36V wide power input for optional(OFX-075?

Datasheet

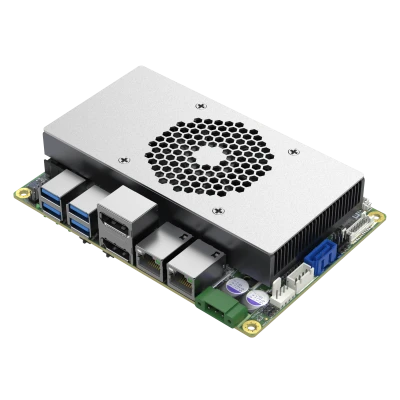

ECM-I910 | 3.5”Embedded Single Board Computer

Intel® Whiskey lake U CPU, dual-channel DDR4?1*HDMI?1*eDP?1*DP?2*LAN?4*USB3.0?4*COM?1*8-bit GPIO?1*M.2 E-key?1*Full size mini PCIe, DC 12V.

ECM-I910 is powered by the Intel® Whiskey lake U CPU 2.2-4.6GHz, 4 cores 8threads. ECM-I910 can support 9-36V wide power input through one 75W power board, OFX-075. This 3.5-inch Mainboard has a compact size, complete function, and is easy to customize for embedded system applications; it is very suitable for ITS, AI edge computing, intelligent manufacturing, intelligent security, and other fields.


Specification

CPUIntel® Whiskey lake U Celeron /Core I3/I5/I7 CPU
System Memory2*260-pin DDR4 SODIMM?support 2133/2400MHz?up to 32GB
Expansion1*Full size Mini PCIe(PCIe×1/mSATA+USB2.0 signal) with SIM slot
1* M.2 2230 E-key?support WiFi6/BT5.0
GraphicsIntel Gen. 9 UHD Graphics, support 3 independent 4K display, DirectX 12, HEVC/H265 HW HD
codec, the highest dynamic frequency up to 1.2GHz;
HDMI?up to 4096*2304@24Hz
DP?up to 4096*2304@60Hz
eDP?up to 1600*900 @60Hz
AudioRealtek ALC662VD controller, Line out & Mic in, Support 5.1 channel(Opt.)
LAN2*Intel® I210AT PCIe Gig. Ethernet?10/100/1000 Mbps self-adaptive
Storge1*SATA3.0 HDD/SSD?1*mSATA(Opt.)
Front I/O2*GbE LAN(RJ45)
4*USB3.0 gen1.0 TYPE A? support up to 10G bit/S transmission speed
1*HDMI 1.4?1*DP 1.2
Internal I/O2*USB2.0 header?2* RS232/422/485 header?2*RS232 header?1*8-bit GPIO header
1*eDP?1*FAN
1*front audio?wafer?
1*SATA3.0
LED1*Power LED; 1*HDD LED; 3*CPU Temp.LED(Red is warning, Yellow is high, Green is normal)
Switch1*Power SW?1*AT/ATX SW?1*Clear CMOS SW?1*RST SW
Power SupplyDC 12V?It can be connected to OFX-075 75W power board and supports 9-36V wide voltage input?
TDP?19.92W (CPU I5-8265U?8GB DDR?1*500G SSD)
Watchdog TimerWatchdog timeout programmable via software 1 to 255 second
OS SupportWindows 10*IoT enterprise?Android?SUSE?Ubuntu?Wind River?Red Hat*Enterprise?Wind River VxWorks*7?Yocto
Dimension(W*H)?146*102mm
Operating Temperature0?60?
Storage Temperature-40°C~85°C
Storage Humidity10~90%@40°C, Non-condensing
Certification/EMCCE/FCC Class B
