ECM-I718

www.alvasta-tech.com / Enterprises / JHCTECH / Single Board Computer / ECM-I718 /

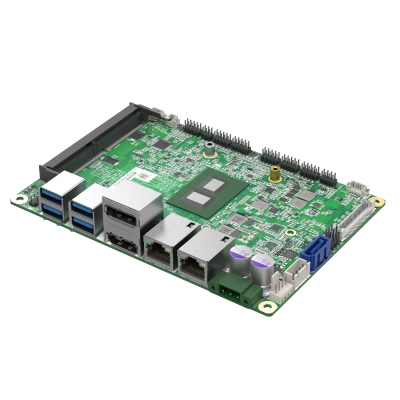

ECM-I718

Key Features

  • Intel® Elkhart lake Soc CPU
  • Single channel DDR4 SODIMM, support 3200MHz, up to 64GB
  • 1*HDMI, 1*DP, 1*48-bit LVDS, 3 independent displays
  • 2*LAN, 4*USB3.1, 2*USB2.0, 4*COM, 1*8-bit DIO
  • 1*M.2 2230 E-key supports WIFI/BT or 1*M.2 3052 B-key with SIM card slot, supports 4G LTE/5G NR
  • 1*SATA3.0 HDD/SSD?1*mSATA(with USB2.0 signal) for storage
  • Active or passive, two different thickness radiator selection
  • DC IN12V?9-36V wide power input for optional ?OFX-075?

Datasheet

ECM-I718 | Single Board Computer

Intel® Elkhart lake Soc CPU,single channel DDR4?1*HDMI?1*DP?2*LAN?4*USB3.1?4*COM?1*8bit DIO? 1*M.2 B-key/1*M.2 E-key?1*mSATA, 1*SATA3.0, DC 12V power

ECM-I718 is a 3.5-inch embedded mainboard equipped with Intel® Elkhart lake Soc CPU. It has complete IO functions, flexible selection of power supply, active and passive radiators, and the compact size is suitable for installation in limited space scenarios.  It is very suitable for AGV and AMR, medical inspection, machine vision, industrial control, digital city and smart security and other industries and fields.


Specification

CPUIntel® Elkhart lake SoC CPU: Celeron J6412 2.0-2.6GHz 4Cores and 4Threads or Celeron N6210 1.2-2.6GHz 2Cores and 2Threads
System Memory1*260-pin DDR4 SODIMM?supports 3200MHz?up to 32GB
Expansion1* M.2 2230 E-key (USB2.0 signal and PCIeX1 signal)?supports WiFi5/BT5.0
1*M.2 B-key 3052 (USB2.0 signal and PCIeX1 signal)?with SIM slot, supports 4G LTE/5G NR

Graphics



Intel Gen10 UHD Graphics, HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG ,VP8?HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8, VP9
HDMI up to 4096*2304@60Hz, DP up to 4096*2160@60Hz, LVDS up to 1920*1200@60Hz,
Audio1*Line out + Line in+ 1*Mic, Realtek ALC897 HD audio chip, support 5.1 channels
LAN2*Realtek 8111H, 10/100/1000Mbps, support WOL
Storage1*SATA3.0 port, supports up to 6 Gbps transmission speed; 1*mSATA (with USB2.0 signal)
Rear I/O2*LAN(RJ45); 1*HDMI+1*DP;
4*USB3.1 gen2.0(Type A), up to 10 Gbps
Internal I/O2*USB2.0(2*4pin dupont pin)?1*RS232/422/485(one 2*5pin dupont pins)?3*RS232(three 2*5pindupont pins), 1*8-bit DIO(2*5pin dupont pin)?1*F-audio(2*5pin dupont pin)?1*48-bit LVDS(2*20pinDF13 port)?1*SM BUS(1*4pin wafer?, 1*SATA 3.0, 1*FAN
Switch & LED1*HDD LED; 1*PWR LED; 3*CPU Temp.LED (Red is warning, Yellow is high, Green is normal)
1*F_Panel(PowerSW, Reset?Power LED, HDD-LED), 2x5pin dupont pin?1*AT/ATX jumper?1*Clear CMOS jumper?1*USB 5V/SB jumper
Power SupplyDC 12V (1*3pin phoenix socket, colay 2*10pin Dupont mother), it can be connected to OFX-075 75W power board and supports 9-36V wide voltage input
TDP: 15.6W (CPU: Celeron J6412/32G DDR4/128 SSD)
Watchdog TimerProgrammable timeout interrupt or system reset, 1 to 255 seconds
OS SupportWindows 10/Windows 11 64 bit, SUSE, Ubuntu, Wind River, Linux
Dimension(W*H) : 146*102mm
HeightSignal board: 36mm, the radiator with fan: 37mm, fanless radiator: 52mm, PCB: 1.6mm
Operating Temperature0?60?
Storage Temperature-40°C~85°C
Storage Humidity10~95%@40°C, Non-condensing
EMC/CertificationCE/FCC Class A
