OVERVIEW
The Winmate E Series HMI was created to address the increasing need for Industrial IoT applications. With its innovative design, the E Series provides fast and easy panel mounting through the use of mounting clips. This feature allows for more efficient installation and reduces the time and cost associated with mounting traditional HMI solutions.
In addition to its convenient mounting options, the E Series HMI boasts a range of features designed to enhance productivity and improve operational efficiency. Its high-performance processor, combined with up to 8GB of RAM, ensures smooth and responsive operation even when running multiple applications simultaneously. The HMI also features a brilliant, sunlight-readable display with up to 1000 nits of brightness, making it ideal for use in outdoor and industrial environments where visibility is crucial.
Moreover, the E Series HMI is designed to withstand harsh industrial environments. It has been rigorously tested to meet MIL-STD-810G standards for shock, vibration, and temperature resistance, ensuring reliable operation even in extreme conditions. The HMI is also rated IP65, which means it is protected from dust and water ingress, making it suitable for use in a wide range of applications and environments.
With its advanced features and rugged design, the Winmate E Series HMI is a reliable and versatile solution for a range of Industrial IoT applications. It is the ideal choice for those looking for a high-performance HMI that is easy to install, can withstand harsh environments, and can enhance productivity and efficiency in industrial settings.
 |  |  |

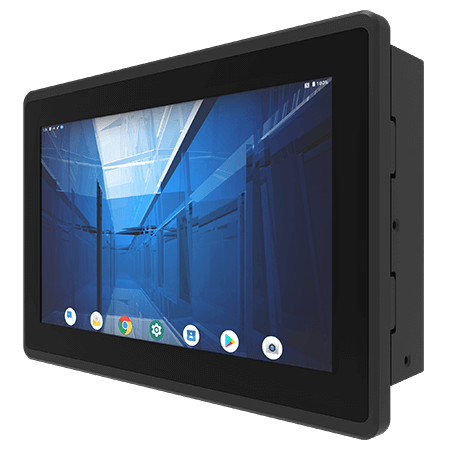

W07MG3S-EHT17" ARM A78+A55 E Series HMI Panel PC FEATURES- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 13

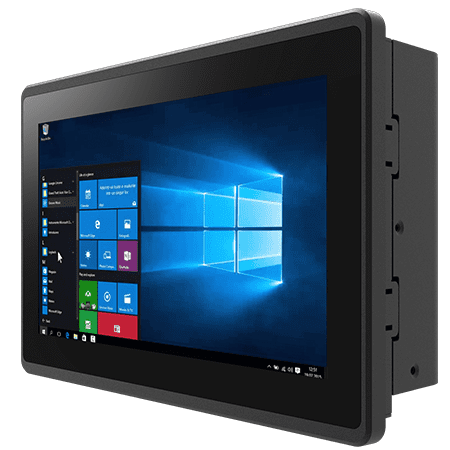

Learn more... | W07IE3S-EHO17" Intel® Celeron® N6211 E Series HMI Panel PC FEATURES- 7” 1024 x 600 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Learn more... | W07IE3S-EHT17" Intel® Celeron® N6211 E Series HMI Panel PC FEATURES- 7” 1024 x 600 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Learn more... |
 |  |  |
W07IB3S-EHO17" Intel® Celeron® N2930 E Series HMI Panel PC FEATURES- 7” 1024 x 600 PCAP touchscreen
- Intel® Celeron® N2930 Bay Trail
- Fanless cooling system
- Front IP65
- Dual Gigabit Ethernet
Learn more... | W07FA3S-EHO17" NXP i.MX6 E Series HMI Panel PC FEATURES- 7” 1024 x 600 PCAP touchscreen
- NXP i.MX6 Dual Core
- Fanless cooling system
- Front IP65
- 1 x USB ; 1 x RS232 /422/485; 1 x CAN BUS
Learn more... | W07IQ3S-EHT17" Qualcomm Snapdragon™ 660 E Series HMI Panel PC FEATURES- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
Learn more... |
 |  |  |
W07IM3S-EHT17" ARM A53 E Series HMI Panel PC FEATURES- 7” 1024 x 600 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM A53 Quad Core 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 11
- Support Android or Linux operating system
Learn more... | W07IB3S-EHT17" Intel® Celeron® N2930 E Series HMI Panel PC FEATURES- 7” 1024 x 600 PCAP touchscreen
- Intel® Celeron® N2930 Bay Trail
- Fanless cooling system
- Front IP65
- Dual Gigabit Ethernet
Learn more... | W07FA3S-EHT17" NXP i.MX6 E Series HMI Panel PC FEATURES- 7” 1024 x 600 PCAP touchscreen
- NXP i.MX6 Dual Core
- Fanless cooling system
- Front IP65
- 1 x USB ; 1 x RS232 /422/485; 1 x CAN BUS
Learn more... |
 |  |  |

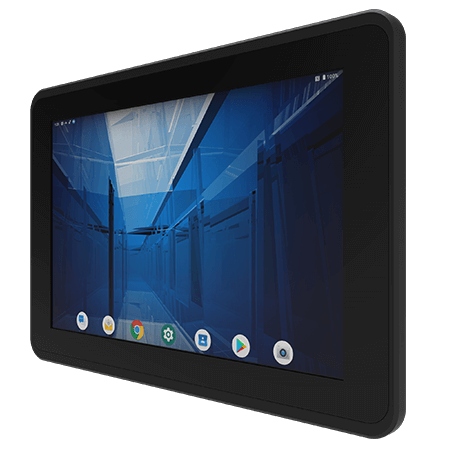

W10MG3S-EHH210.1" ARM A78+A55 E Series HMI Panel PC FEATURES- 10.1” 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 13
Learn more... | W10IE3S-EHH210.1" Intel® Celeron® N6211 E Series HMI Panel PC FEATURES- 10.1” 1280 x 800 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
Learn more... | W10IM3S-EHH210.1" ARM A53 E Series HMI Panel PC FEATURES- 10.1” 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM A53 Quad Core 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 11
- Support Android or Linux operating system
Learn more... |
 |  |  |
W10IQ3S-EHH210.1" Qualcomm Snapdragon™ 660 E Series HMI Panel PC FEATURES- 10.1” 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof

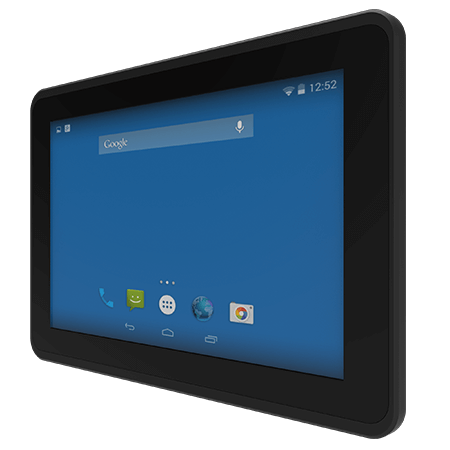

| W10FA3S-EHH210.1" NXP i.MX6 E Series HMI Panel PC FEATURES- 10.1” 1280 x 800 PCAP touchscreen
- NXP i.MX6 Dual Core
- Fanless cooling system
- Front IP65
- 1 x USB ; 1 x RS232 /422/485; 1 x CAN BUS; 1 x Micro SD Slot ; 1 x Micro HDMI
| W10IB3S-EHH210.1" Intel® Celeron® N2930 E Series HMI Panel PC FEATURES- 10.1” 1280 x 800 PCAP touchscreen
- Intel® Celeron® N2930 Bay Trail
- Fanless cooling system
- Front IP65
- Dual Gigabit Ethernet
|
 |  |  |

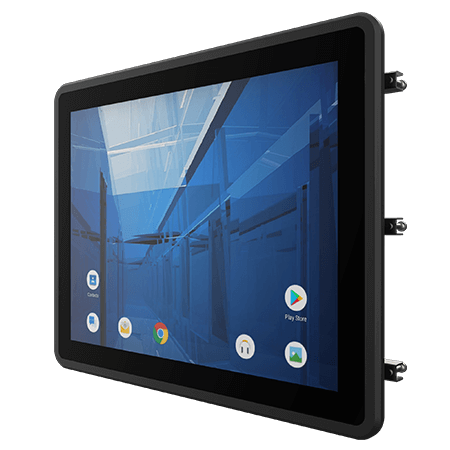

R15MG3S-EHC315" ARM A78+A55 E Series HMI Panel PC FEATURES- 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 13
| R15IE3S-EHC315" Intel® Celeron® N6211 E Series HMI Panel PC FEATURES- 15” 1024 x 768 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
| R15IB3S-EHC315" Intel® Celeron® N2930 E Series HMI Panel PC FEATURES- 15” 1024 x 768 Resolution
- PCAP Multi-touch screen
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
|
 |  |  |
R15IM3S-EHC315" ARM A53 E Series HMI Panel PC FEATURES- 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- ARM A53 Quad Core 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 11
- Support Android or Linux operating system
| R15IQ3S-EHC315" Qualcomm Snapdragon™ 660 E Series HMI Panel PC - 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof

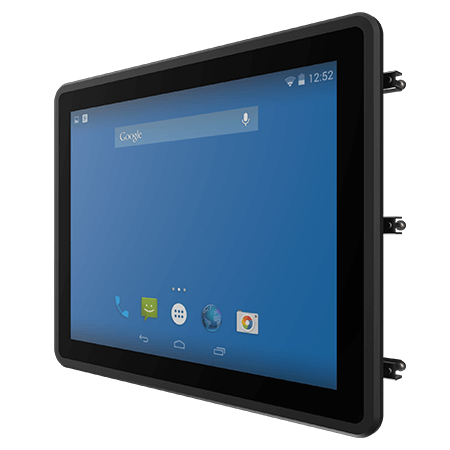

| R15FA3S-EHC315" NXP i.MX6 E Series HMI Panel PC FEATURES- 15” 1024 x 768 Resolution with Projected Capacitive Multi-Touch (PCAP)
- NXP i.MX6 Dual Core 1 GHz
- Fanless cooling system and Ultra-low power consumption
- Support PoE function
- Front IP65 Water and Dust Proof
- 1 x USB ; 1 x RS232 / 422 / 485 ; 1 x Micro SD Slot
|
 |  |  |

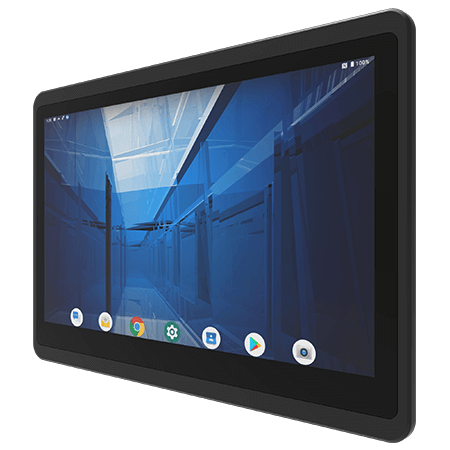

W15MG3S-EHA415.6" ARM A78+A55 E Series HMI Panel PC FEATURES- 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (PCAP)
- ARM 2 x A78 2.0GHz + 4 x A55 2.0GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 13
| W15IE3S-EHA415.6" Intel® Celeron® N6211 E Series HMI Panel PC FEATURES- 15.6” 1920 x 1080 Resolution with PCAP touchscreen
- Intel® Celeron® N6211 Processor 1.5M Cache, up to 3.0 GHz
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumptioN
| W15IM3S-EHA415.6" ARM A53 HMI Panel PC FEATURES- 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- ARM A53 Quad Core 2.0GHz CPU, HMI Panel PC
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- Android 11
- Support Android or Linux operating system
|
 |  |  |
W15IQ3S-EHA415.6" Qualcomm Snapdragon™ 660
Projected Capacitive Multi-Touch FEATURES- 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (P-CAP)
- ARM Dual-core A72 up to 2.0GHz
- + Quad-core A53 up to 1.5GHz
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- 1 x USB 3.0 OTG, 2 x USB 2.0; 1 x RS232/422/485; 1 x RJ45;
1 x Micro SD Slot; 1 x Micro HDMI (Optional)
| W15IB3S-EHA415.6" Intel® Celeron® N2930 E Series HMI Panel PC FEATURES- 15.6” 1920 x 1080 Resolution
- PCAP Multi-touch screen
- Front IP65 Water and Dust Proof
- Dual Gigabit Ethernet
- Fanless cooling system and ultra-low power consumption
| W15FA3S-EHA415.6" NXP i.MX6 E Series HMI Panel PC FEATURES- 15.6” 1920 x 1080 Resolution with Projected Capacitive Multi-Touch (PCAP)
- NXP i.MX6 Dual Core 1 GHz
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
- 1 x USB ; 1 x RS232 / 422 / 485 ; 1 x CAN BUS ; 1 x Micro SD Slot ; 1 x Micro HDMI
|
