DSG-KEX-70SK

Product Features HDMI 2.0b and HDCP 2.2 compliant Supports 18Gbps video bandwidth Supports video resolutions up to 4K@60Hz RGB/YCBCR 4:4:4 Transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable Supports HDR, HDR10, HDR10+, Dolby Vision, HLG Audio formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus Supports 3.5mm analog audio de-embedding; audio is output through the L/R OUT port of the Receiver EDID copy pass-through function between the source device and display device Supports bi-directional PoC (Power over Cable) function Includes USB KVM pass-through function; USB1.1 compliant supporting remote HID keyboard and mouse Compact design for easy and flexible installation Download Datasheet

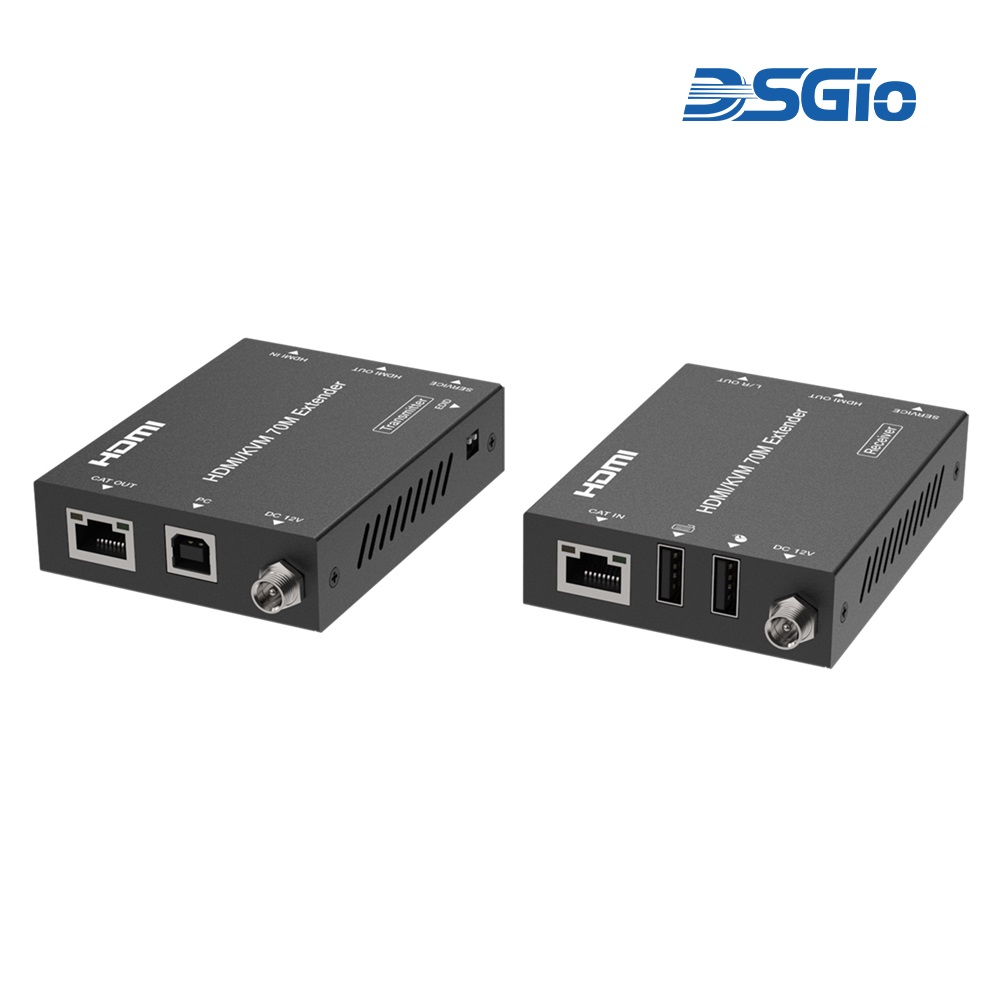

DSG-KEX-70SK

HDMI 2.0b, 4K60, Local Out, USB 1.1, PoC, 70m

This 18Gbps HDMI KVM Extender extends HDMI 4K signals up to 70m (230 feet) using a single CAT6/6a cable, enabling zero-delay, uncompressed long-distance transmission between the Transmitter and Receiver. It supports video resolutions up to 4K@60Hz and features KVM signal pass-through for remote control of the source device at the display.

This 18Gbps HDMI KVM Extender extends HDMI 4K signals up to 70m (230 feet) using a single CAT6/6a cable, enabling zero-delay, uncompressed long-distance transmission between the Transmitter and Receiver. It supports video resolutions up to 4K@60Hz and features KVM signal pass-through for remote control of the source device at the display. Additionally, it offers EDID copy pass-through functionality between the source and display devices, along with support for Power Over Cable (POC). This versatile Extender is ideal for use in multimedia conference halls, TV teaching, and large-screen displays.

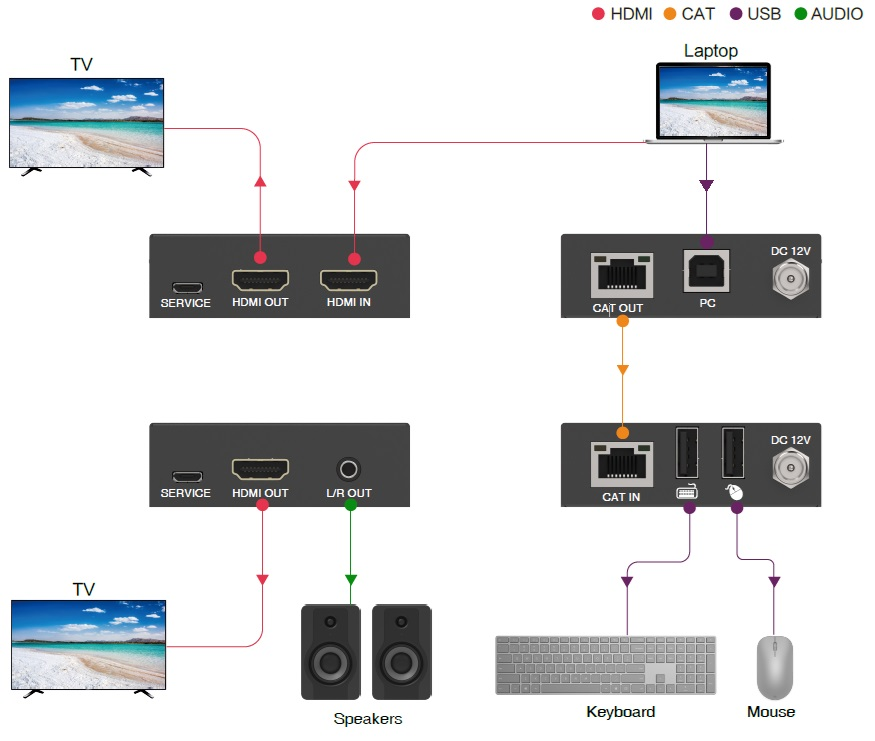

Application Example

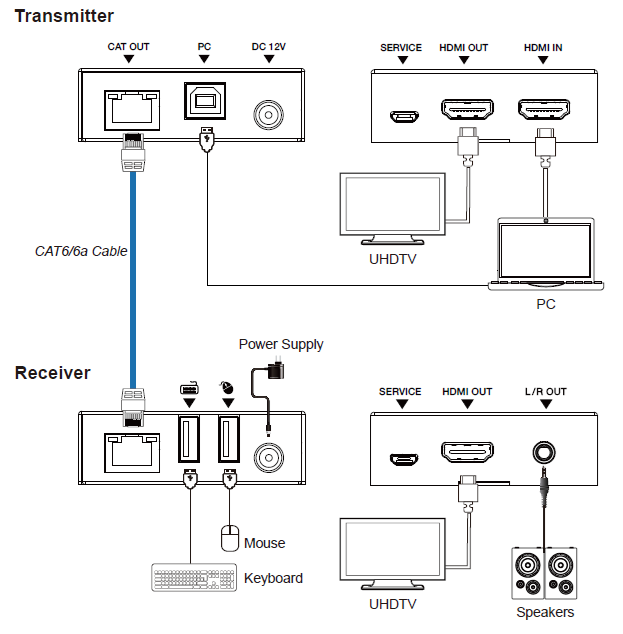

Connection Diagram
