 | 8-Port USB HDMI/Audio KVM Switch Features And Benefits
Download Datasheet |

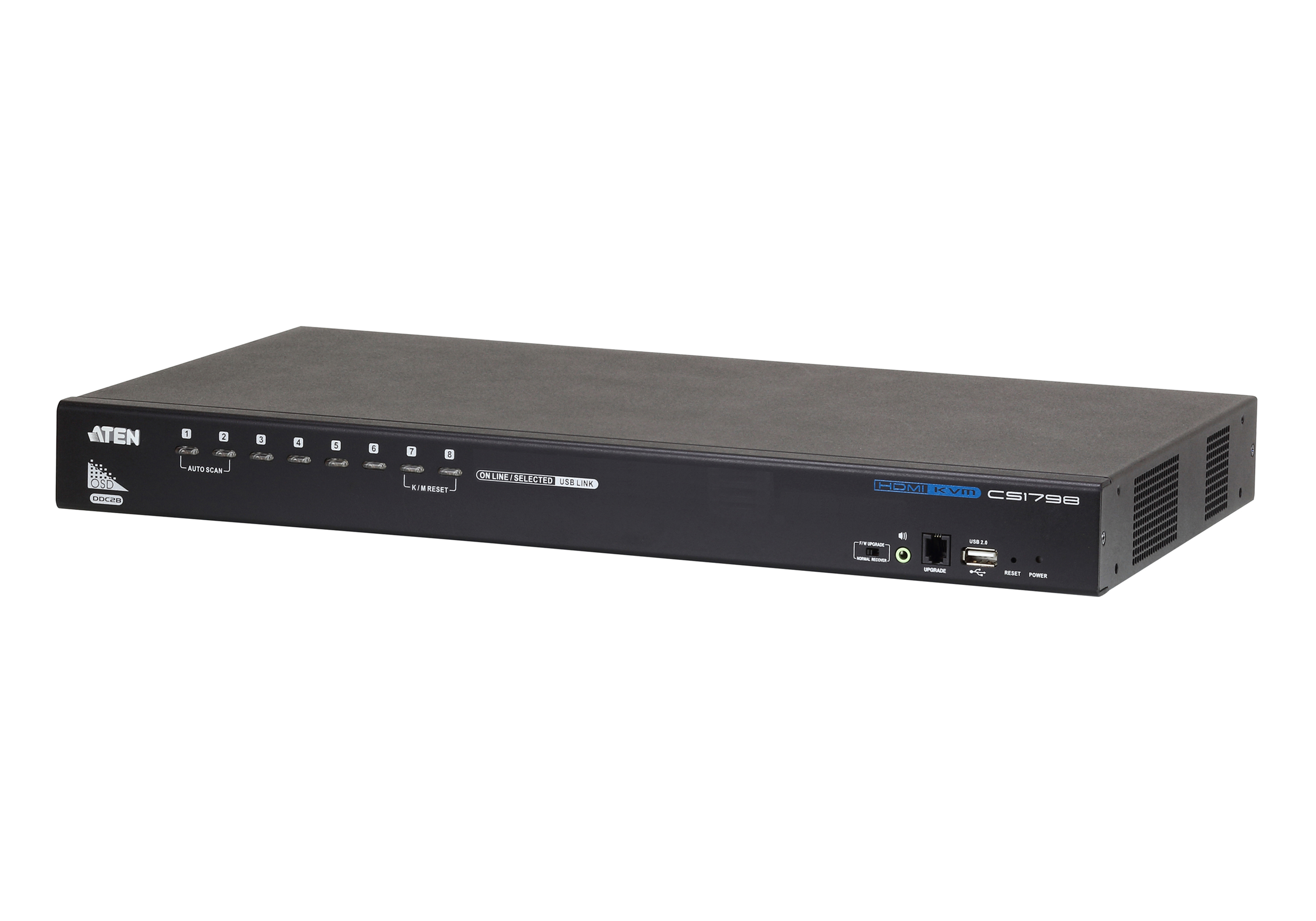

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS1798 can be cascaded up to three levels – to control up to 512 computers – all from a single console.
In addition, the CS1798 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.
The CS1798 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Specifications
| Computer Connections | |
| Direct | 8 |
| Maximum | 512 (via Cascade) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors | |
| Console Ports | 1 x HDMI Female 2 x USB Type A Female 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel) |
| KVM Ports | 8 x HDMI Female 8 x USB Type B Female 8 x 3.5mm Audio Jack Female (Green) |
| Firmware Upgrade | 1 x RJ11 Female (Black) |
| Power | 1 x DC Jack |
| USB Hub | 2 x USB Type A Female (1 x front panel, 1 x rear panel) |
| Switches | |
| Port Selection | 8 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch |
| LEDs | |
| USB Link | 8 (Green) |
| Power | 1 (Dark Green) |
| On Line /Selected | 8 (Orange) |
| Emulation | |
| Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz |
| Scan Interval | 1 – 255 seconds (default: 5 secs.) |
| Power Consumption | DC5V:5.8W:53BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |
| Operating Temperature | 0 – 50°C |
| Storage Temperature | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 3.49 kg ( 7.69 lb ) |
| Dimensions (L x W x H) | 43.24 x 25.72 x 4.40 cm (17.02 x 10.13 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
