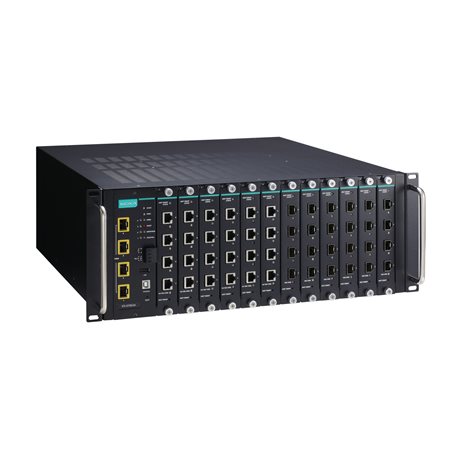

Core Ethernet Switch ICS-G7852A Series

48G+4 10GbE-port Layer 3 full Gigabit modular managed Ethernet switches

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7852A Series full Gigabit backbone switches’ modular design makes network planning easy, and allows greater flexibility by letting you install up to 48 Gigabit Ethernet ports plus 4 10 Gigabit Ethernet ports.

The ICS-G7852A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Features and Benefits

Up to 48 Gigabit Ethernet ports plus 4 10G Ethernet ports
Up to 52 optical fiber connections (SFP slots)
Up to 48 PoE+ ports with external power supply (with IM-G7000A-4PoE module)
Fanless, -10 to 60°C operating temperature range
Modular design for maximum flexibility and hassle-free future expansion
Hot-swappable interface and power modules for continuous operation
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
Isolated redundant power inputs with universal 110/220 VAC power supply range
Supports MXstudio for easy, visualized industrial network management
V-ON™ ensures millisecond-level multicast data and video network recovery

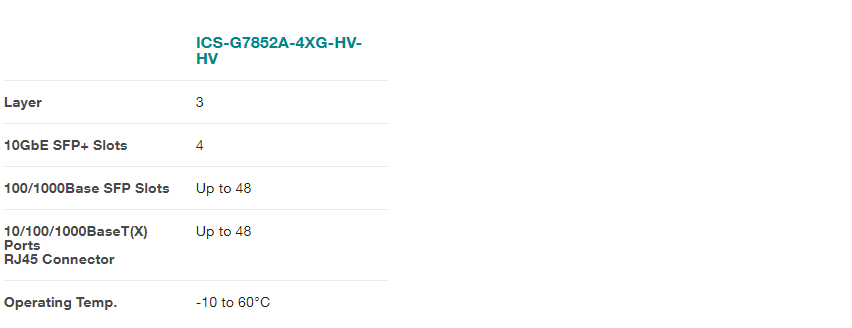

Models
