 | 8-Port PS/2-USB VGA Single Rail LCD KVM Switch Features And Benefits
Download Datasheet |
The CL5708 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5708, so that up to 256 computers can all be controlled from a single KVM console.

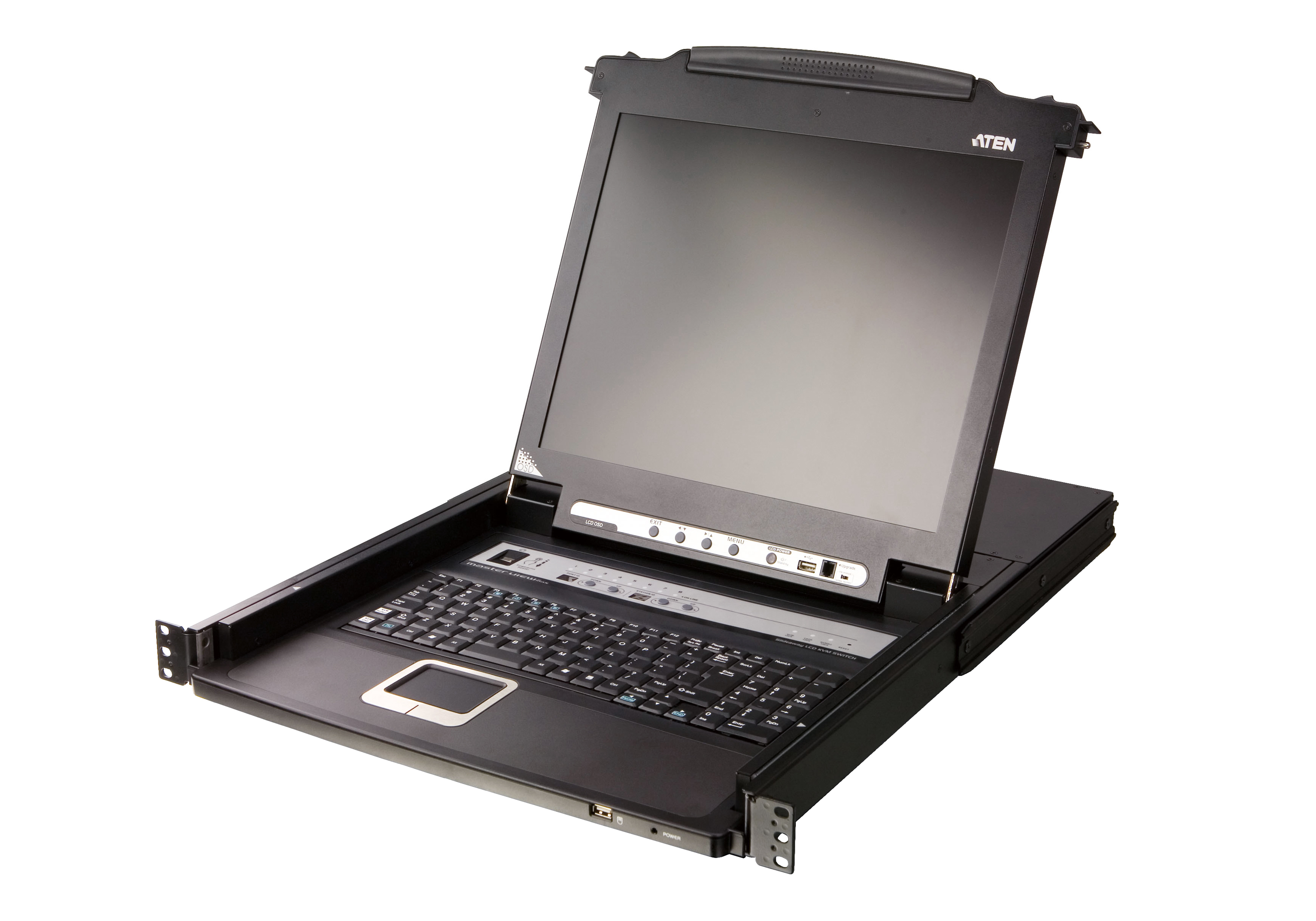

The CL5708 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. The 17.3" LCD monitor offers Full HD superior video quality for enhanced visibility and clarity. To enhance security, the CL5708 offers the option to use a fingerprint identification system for controlling access to both the CL5708 itself and the servers it commands.
The CL5708 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.
Specifications
| Computer Connections | |||
| Direct | 8 | 8 | 8 |
| Maximum | 256 (via Daisy-chain) | 256 (via Daisy-chain) | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton | OSD, Hotkey, Pushbutton | OSD, Hotkey, Pushbutton |
| Connectors | |||
| KVM Ports | 8 x SPHD Female (Yellow) | 8 x SPHD Female (Yellow) | 8 x SPHD Female (Yellow) |
| Daisy Chain Ports | 1 x DB-25 Male | 1 x DB-25 Male | 1 x DB-25 Male |
| Firmware Upgrade | 1 x RJ-11 Female | 1 x RJ-11 Female | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 | 1 x IEC 60320/C14 |
| External Console Ports | 1 x SPHD Male (Yellow) | 1 x SPHD Male (Yellow) | 1 x SPHD Male (Yellow) |
| External Mouse Port | 1 x USB Type A Female (Front) | 1 x USB Type A Female (Front) | 1 x USB Type A Female (Front) |
| USB Port | 1 x USB Type A Female | N/A | 1 x USB Type A Female |
| Switches | |||
| Port Selection | 2 x Pushbutton | 2 x Pushbutton | 2 x Pushbutton |
| Station Selection | 2 x Pushbutton | 2 x Pushbutton | 2 x Pushbutton |
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch | 1 x Slide Switch |
| Power | 1 x Rocker Switch | 1 x Rocker Switch | 1 x Rocker Switch |
| LCD Control | 4 x Pushbutton | 4 x Pushbutton | 4 x Pushbutton |
| LCD Power | 1 x LED Pushbutton | 1 x LED Pushbutton | 1 x LED Pushbutton |
| LEDs | |||
| Online | 8 (Orange) | 8 (Orange) | 8 (Orange) |
| Port ID | 2 x 7-segment LED Display (Orange) | 2 x 7-segment LED Display (Orange) | 2 x 7-segment LED Display (Orange) |
| Station ID | 2 x 7-segment LED Display (Orange) | 2 x 7-segment LED Display (Orange) | 2 x 7-segment LED Display (Orange) |
| Power | 1 (Dark Green) | 1 (Dark Green) | 1 (Dark Green) |
| Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
| LED Illumination Light | 1 x LED Illumination Light | 1 x LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec | |||
| LCD Module | 17" TFT-LCD | 17.3" TFT-LCD | 19" TFT-LCD |
| Resolution | 1280 x 1024 @ 75 Hz | 1920 x 1080 @ 60 Hz | 1280 x 1024 @ 75 Hz |
| Response time | 5 ms | 16 ms | 5 ms |
| Viewing Angle | 170° (H), 160° (V) | 170° (H), 170° (V) | 170° (H), 160° (V) |
| Pixel Pitch | 0.264 mm x 0.264 mm | 0.1989 mm x 0.1989 mm | 0.294 mm x 0.294 mm |
| Support Color | 16.77M colors | 16.77M colors | 16.77M colors |
| Contrast Ratio | 1000 : 1 | 800 : 1 | 1000 : 1 |
| Luminance | 250 cd/m² | 250 cd/m² | 250 cd/m² |
| Video | |||
| Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B | up to 1920 × 1200 @ 60 Hz (all resolution @ 60Hz only); 1920 × 1080 @ 60 Hz, DDC2B | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| Scan Interval | 1-255 seconds | 1-255 seconds | 1-255 seconds |
| Emulation | |||
| Keyboard / Mouse | PS/2, USB | PS/2, USB | PS/2, USB |
| Maximum Input Power Rating | 100-240V AC, 50/60Hz, 1A | 100-240V AC, 50/60Hz, 1A | 100-240V AC, 50/60Hz, 1A |
| Power Consumption | AC110V:23.9W:125BTU/h AC220V:25.1W:130BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | AC110V:14.5W:79BTU/h AC220V:15.4W:83BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | AC110V:26.1W:135BTU/h AC220V:27.2W:140BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | |||
| Operating Temperature | 0-40°C | 0-40°C | 0-50°C |
| Storage Temperature | -20-60°C | -20-60°C | -20-60°C |
| Humidity | 0-85% RH, Noncondensing | 0-85% RH, Noncondensing | 0-85% RH, Noncondensing |
| Physical Properties | |||
| Housing | Metal + Plastic | Metal + Plastic | Metal + Plastic |
| Rail Type | Single Rail | Single Rail | Single Rail |
| Weight | 13.47 kg ( 29.67 lb ) | 13.39 kg ( 29.49 lb ) | 13.39 kg ( 29.49 lb ) |
| Dimensions (L x W x H) | 48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.) | 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) | 48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | ||
