 | USB True 4K DisplayPort/HDMI Optical KVM Extender (True 4K @ 300 m) Features and Benefits
Download Datasheet |

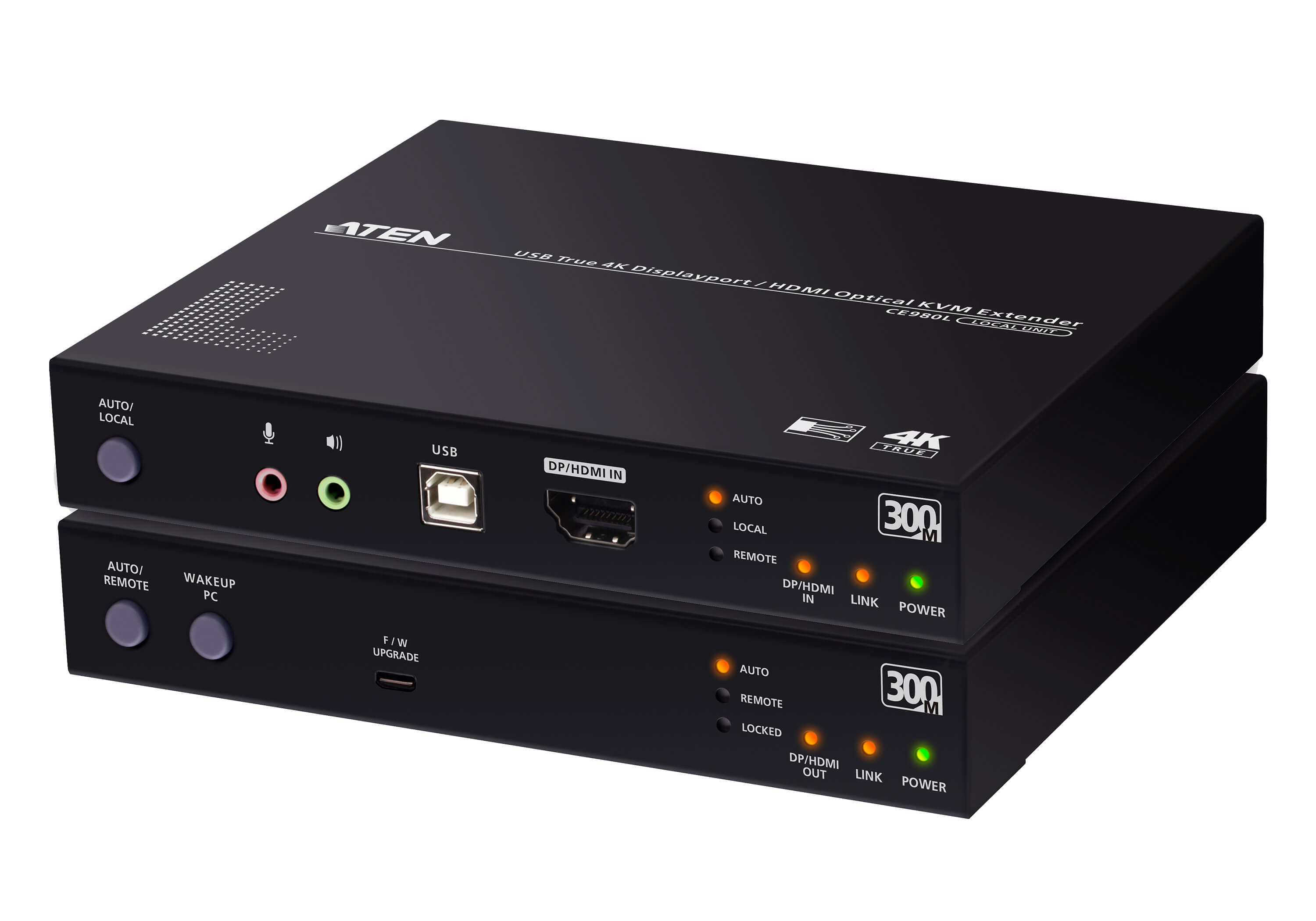

The ATEN CE980 USB True 4K DisplayPort/HDMI Optical KVM Extenders ensure transmission of True 4K video, KVM and control signals over a single fiber optic cable, extending up to 300 m. The CE980 supports HDR10 to deliver unparalleled True 4K video quality (3840 x 2160 @ 60 Hz, 4:4:4 / 4096 x 2160 @ 60 Hz, 4:4:4) with full color accuracy.
Thanks to a built-in DisplayPort / HDMI combo connector, the CE980 allows for either HDMI or DisplayPort connection on both local and remote consoles, with video input and output selectable for flexible installation and mixed / matched display configurations between both ends. The CE980 also extends keyboard / mouse control, RS-232, USB 2.0 data, and both stereo and embedded audio, including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, over fiber optic cabling. The privilege control function enables easy access management between local and remote consoles through an Auto/Local or Auto/Remote pushbutton, allowing flexible control switching based on operational requirements.
The CE980 is a USB DisplayPort/HDMI Optical KVM Extender that extends KVM signals over fiber-optic transmission up to 300 meters, delivering True 4K, HDCP 2.3-compliant video quality. It features DisplayPort and HDMI connectivity via a combo connector, simplifying installation with selectable video output at both local and remote consoles. In addition to exceptional video clarity, it supports RS-232, USB 2.0 peripherals, and embedded DisplayPort/HDMI digital audio, including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio, enabling versatile signal extension over a single fiber optic connection. The CE980 is ideal for critical control environments such as healthcare, post production, manufacturing, and more.

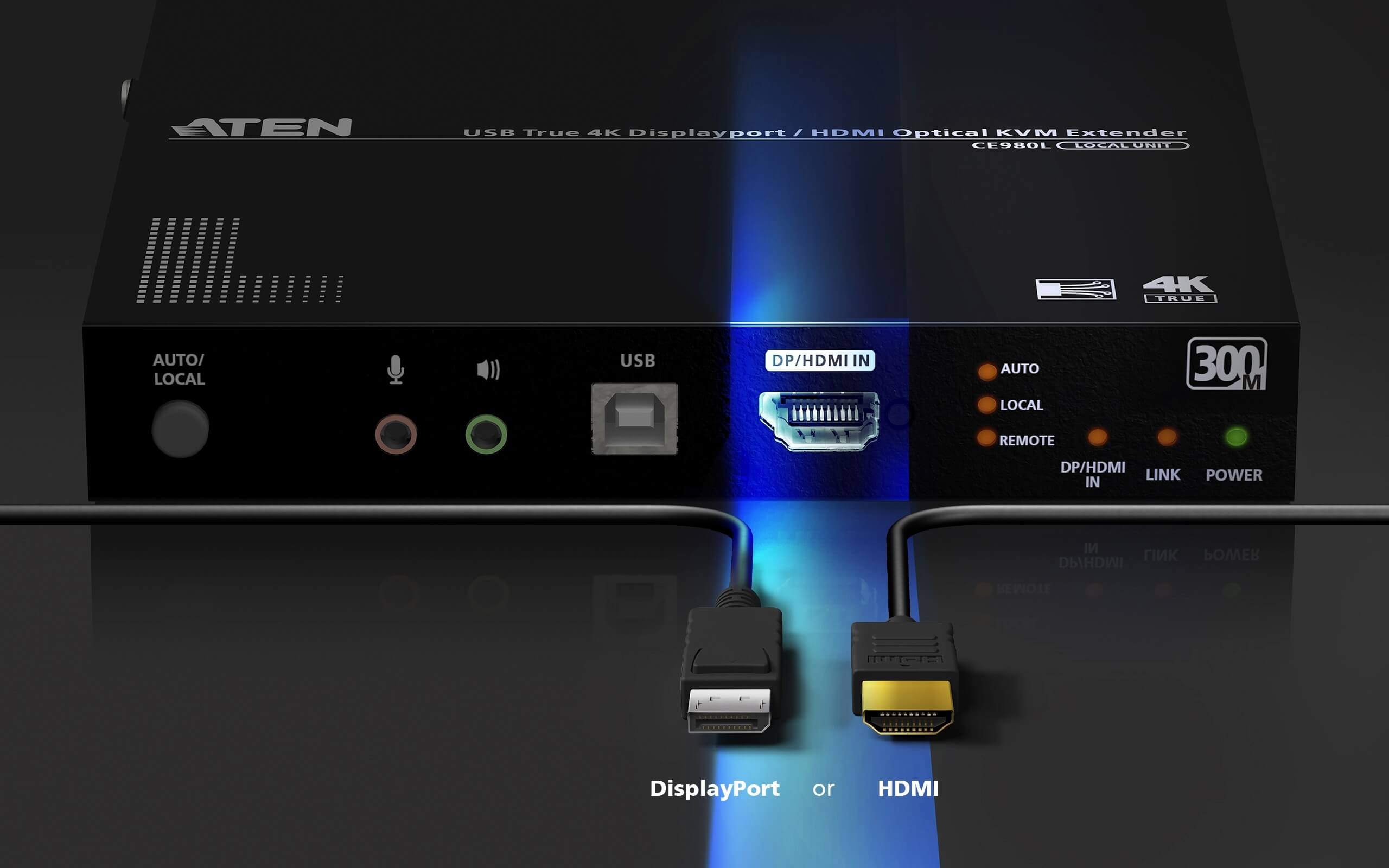

2-in-1 DisplayPort/HDMI Combo ConnectorFeaturing a combo connector, the CE980 supports connection to either a DisplayPort or HDMI display for both local and remote KVM installations. This versatile design supports flexible display configurations at each end, allowing mixed or matched output types between the local and remote consoles. |  |
 | Pristine True 4K Clarity with HDR10Experience unparalleled True 4K clarity (3840 x 2160 and 4096 x 2160 @60 Hz, 4:4:4) and HDR10 support, delivering optimal image accuracy, enhanced contrast, and rich colors for razor-sharp video content. |

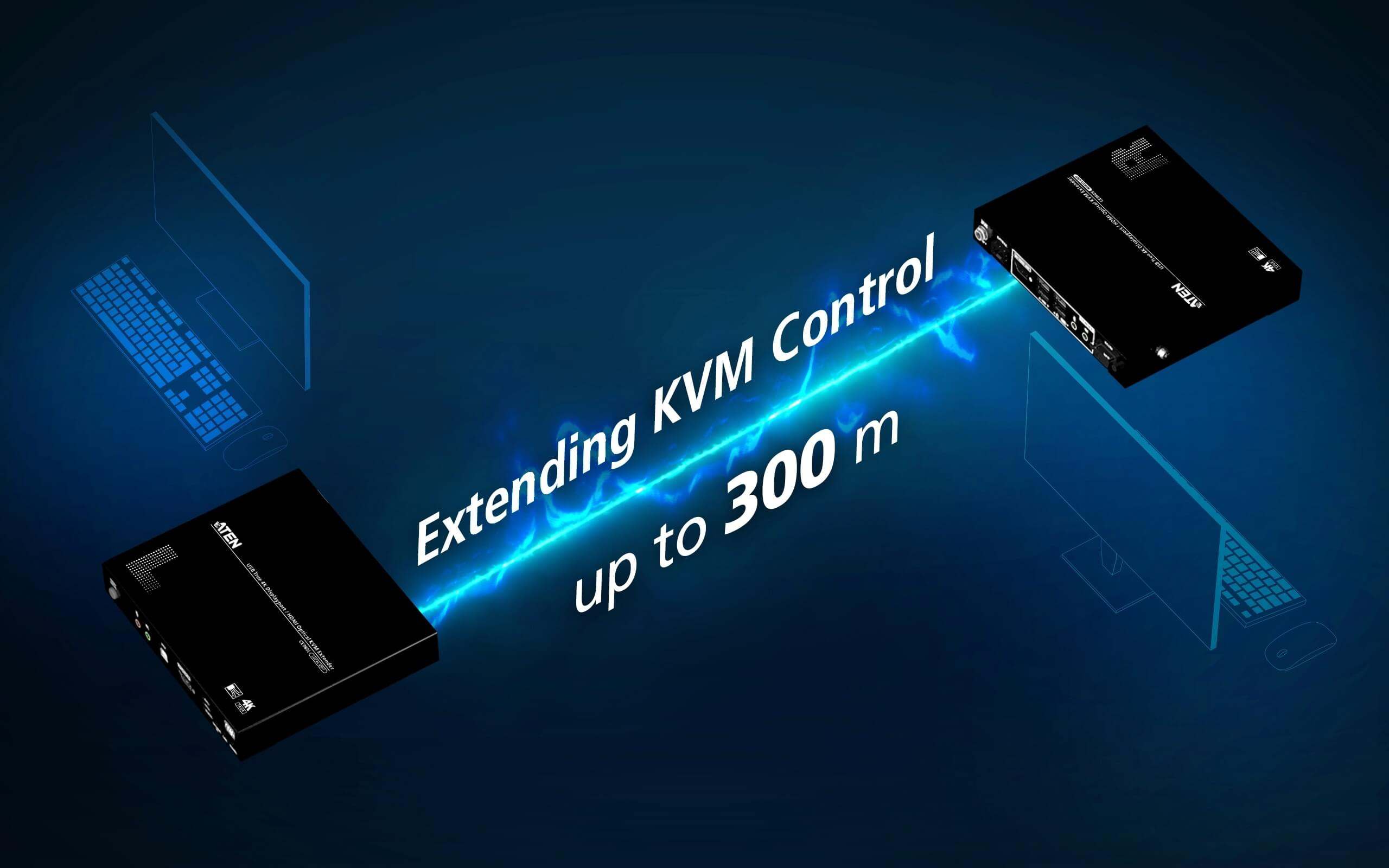

Reliable Fiber Optic KVM Extension over Long DistancesDeploying the CE980 enables long-distance KVM extension of up to 300 meters via a fiber optic connection, ensuring stable, interference-free transmission with inherent EMI resistance for reliable performance. |  |

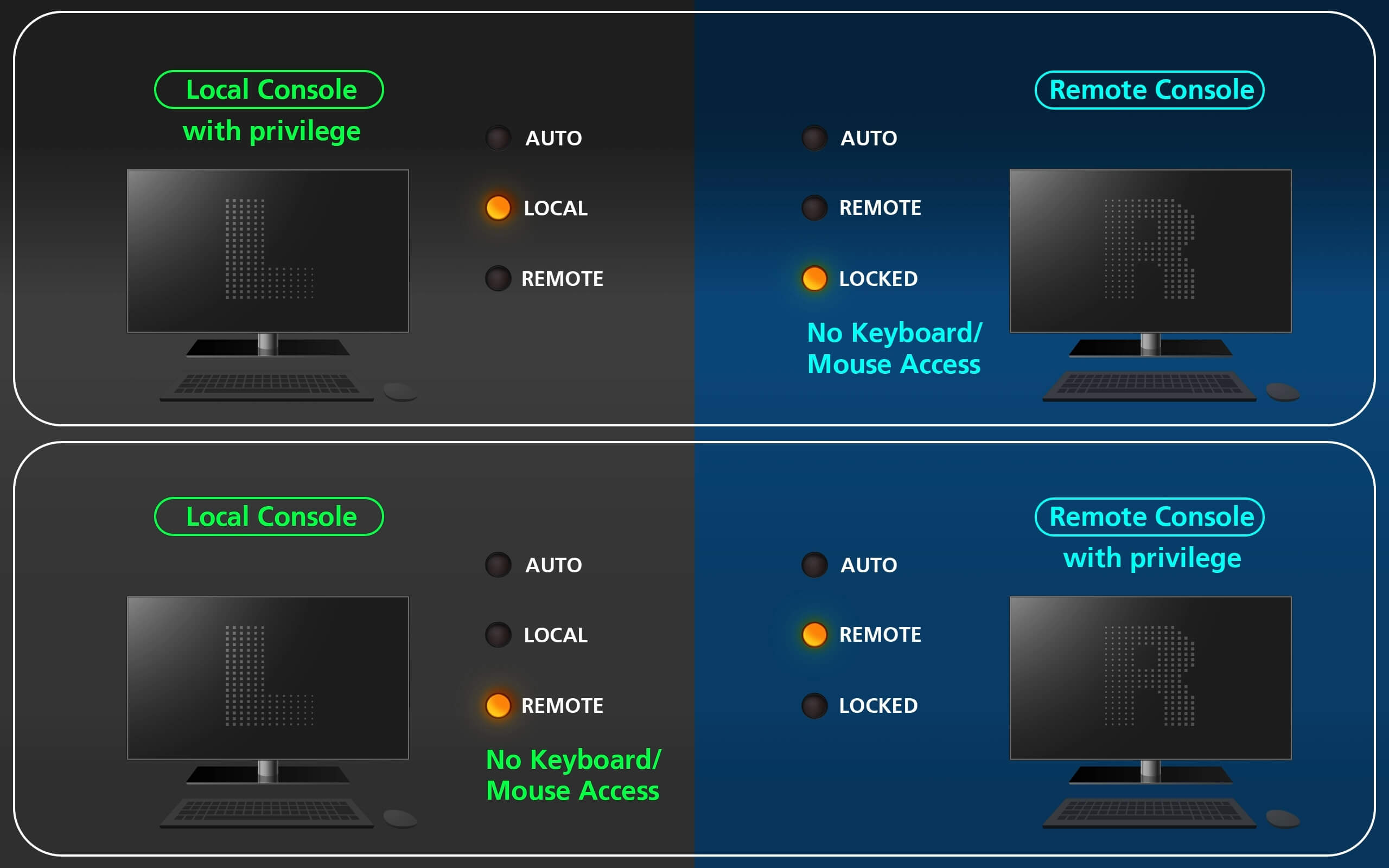

The CE980 enables KVM access to a computer from both local and remote consoles, facilitating efficient operational collaboration. Using the Auto/Local or Auto/Remote pushbutton, you can toggle between Auto mode (access from both consoles) and Local/Remote mode (exclusive access from either local or remote console), determining which console has privileged control over the computer.
Designed for critical control environments such as healthcare, post production, and manufacturing, the CE980 delivers stable long-distance KVM signal transmission and pristine video quality.
Spesifications
| Connectors | ||
| Console Ports | 4 x USB Type A Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | 4 x USB Type A Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x USB Type B Female (White) 1 x DisplayPort/HDMI Female (Black) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Unit To Unit | 1 x bi-directional SFP+ (LC) | 1 x bi-directional SFP+ (LC) |
| Video | ||
| Max. Resolution | Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4) | Up to 4096 x 2160 @ 60Hz (4:4:4) / 3840 x 2160 @ 60Hz (4:4:4) |
| LEDs | ||
| Video Input | 1 (Orange) | N/A |
| Console Status | 3 (Orange) | 3 (Orange) |
| Video Output | N/A | 1 (Orange) |
| Link | 1 (Orange) | 1 (Orange) |
| Power | 1 (Green) | 1 (Green) |
| Switches | ||
| Operation Mode Selection | 1 x Pushbutton | 1 x Pushbutton |
| Wakeup PC | N/A | 1 x Pushbutton |
| Fiber Optics | ||
| Operating Distance | 300 m with Multi Mode (MM) fiber (*Note) | 300 m with Multi Mode (MM) fiber (*Note) |
| Data Rate | Single fiber: 10 Gbps | Single fiber: 10 Gbps |
| Power Consumption | DC12V:11.89W:86BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | DC12V:9.49W:81BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.85 kg ( 1.87 lb ) | 0.84 kg ( 1.85 lb ) |
| Dimensions (L x W x H) | 17.82 x 15.62 x 2.88 cm (7.02 x 6.15 x 1.13 in.) | 17.82 x 15.62 x 2.88 cm (7.02 x 6.15 x 1.13 in.) |
| Note | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. | 1. Operating distance is approximate. A typical maximum distance may vary depending on factors such as fiber type, bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks. 2. It is recommended that you use Multi Mode fibers that conform to IEC 11801 (OM3) specifications. 3. The Device is class 1 laser product. It meet the safety regulations of IEC-60825, FDA 21 CFR 1040.10, and FDA 21 CFR 1040.11. |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| True 4K HDMI | Local | Remote |
| 640 x 480 @ 60/67/72/75 Hz | 640 x 480 @ 60/67/72/75 Hz | |
| 640 x 480 60 Hz (4:3) | 720 x 400 @ 70 Hz | |
| 720 x 400 @ 70 Hz | 800 x 600 @ 56/60/72/75 Hz | |
| 800 x 600 @ 56/60/72/75 Hz | 1024 x 768 @ 60/70/75 Hz | |
| 1024 x 768 @ 60/70/75 Hz | 1280 x 800 @ 60 Hz | |
| 1280 x 800 @ 60 Hz | 1280 x 1024 @ 60/75 Hz | |
| 1280 x 1024 @ 60/75 Hz | 1400 x 1050 @ 60 Hz | |
| 1400 x 1050 @ 60 Hz | 1440 x 900 @ 60 Hz | |
| 1440 x 900 @ 60 Hz | 1600 x 1200 @ 60 Hz | |
| 1600 x 1200 @ 60 Hz | 1680 x 1050 @ 60 Hz | |
| 1680 x 1050 @ 60 Hz | 1920 x 1080 @ 60/120/144/240 Hz | |
| 1920 x 1080 @ 60/120/144/240 Hz | 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | |
| 1920 x 1200 @ 60 Hz | 1080p @ 24/25/30/50/60 Hz | |
| 1920 x 1200 @ 60 Hz (Reduced Blanking) | 1080i @ 50/60 Hz | |
| 1080p @ 24/25/30/50/60 Hz | 720p @ 50/60 Hz | |
| 1080i @ 50/60 Hz | 576p @ 50 Hz (4:3/16:9) | |
| 720p @ 50/60 Hz | 480p @ 60 Hz (4:3/16:9) | |
| 576p @ 50 Hz (4:3, 16:9) | 640 x 480 @ 60 Hz (4:3) | |
| 480p @ 60 Hz (4:3, 16:9) | 3840 x 2160p @ 24/25/30/50/60 Hz | |
| 3840 x 2160p @ 24/25/30/50/60 Hz | 3840 x 2160p @ 50/60 Hz (4:2:0) | |
| 3840 x 2160p @ 50/60 Hz (4:2:0) | 4096 x 2160p @ 24/25/30/50/60 Hz | |
| 4096 x 2160p @ 24/25/30/50/60 Hz | 4096 x 2160p @ 50/60 Hz (4:2:0) | |
| 4096 x 2160p @ 50/60 Hz (4:2:0) | ||
| True 4K DP | 640 x 480 @ 60/75 Hz | 640 x 480 @ 60/75 Hz |
| 800 x 600 @ 60/75 Hz | 800 x 600 @ 60/75 Hz | |
| 1024 x 768 @ 60/75 Hz | 1024 x 768 @ 60/75 Hz | |
| 1280 x 800 @ 60 Hz | 1280 x 800 @ 60 Hz | |
| 1280 x 1024 @ 60/75 Hz | 1280 x 1024 @ 60/75 Hz | |
| 1400 x 1050 @ 60 Hz | 1400 x 1050 @ 60 Hz | |
| 1440 x 900 @ 60 Hz | 1440 x 900 @ 60 Hz | |
| 1600 x 1200 @ 60 Hz | 1600 x 1200 @ 60 Hz | |
| 1680 x 1050 @ 60 Hz | 1680 x 1050 @ 60 Hz | |
| 1920 x 1080 @ 60 Hz | 1920 x 1080 @ 60 Hz | |
| 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | 1920 x 1200 @ 60 Hz / 60 Hz (Reduced Blanking) | |
| 1080p @ 50/60/120/144 Hz | 1080p @ 50/60/120/144 Hz | |
| 480p @ 60 Hz | 480p @ 60 Hz | |
| 720p @ 50/60 Hz | 720p @ 50/60 Hz | |
| 3840 x 2160p @ 24/25/30/50/60 Hz | 3840 x 2160p @ 24/25/30/50/60 Hz | |
| 4096 x 2160p @ 24/25/30/50/60 Hz | 4096 x 2160p @ 24/25/30/50/60 Hz |
