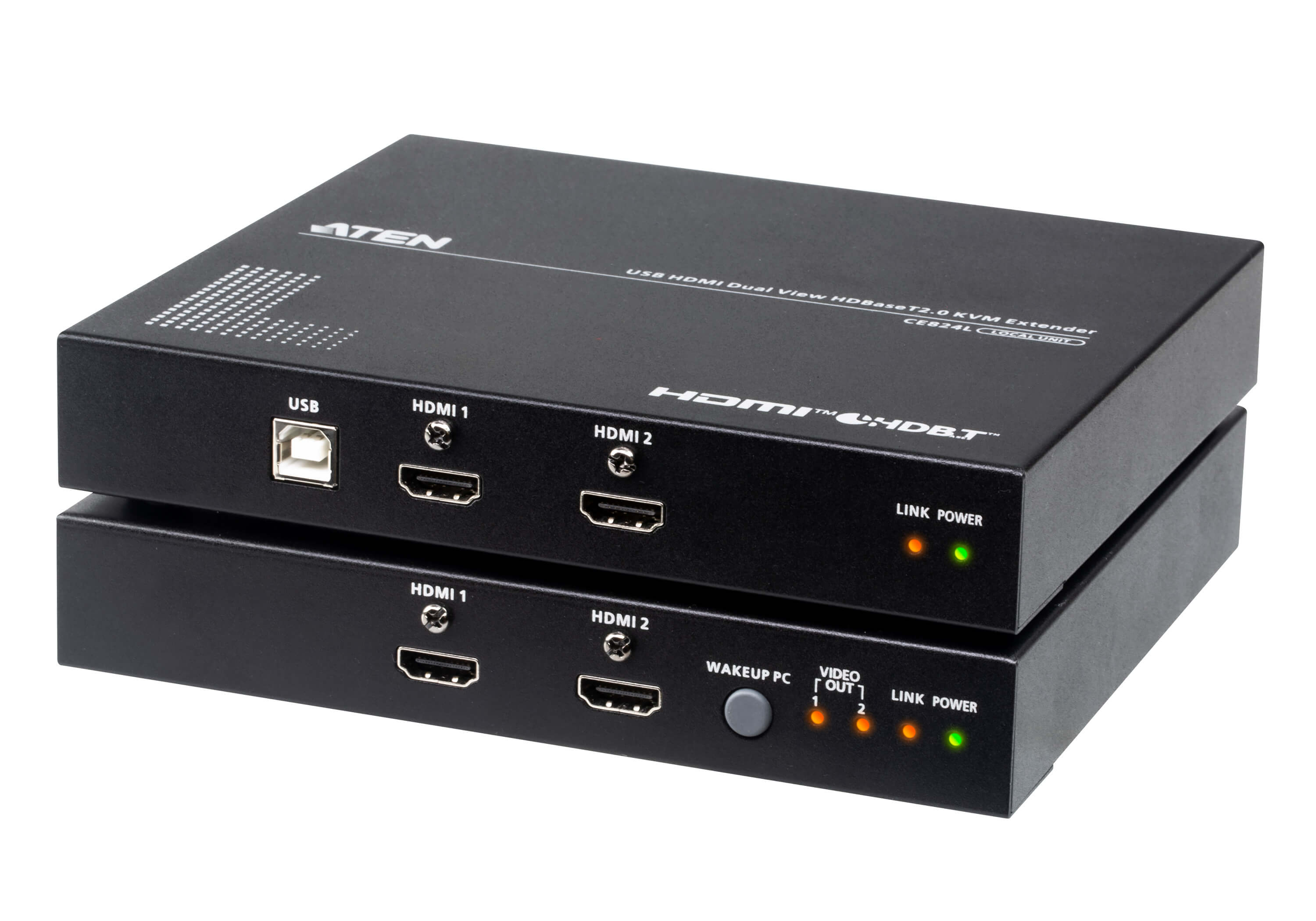

CE824

USB HDMI Dual View HDBaseT™ 2.0 KVM Extender (4K@100m for Single View) Features and Benefits Allows HDMI dual view access to a distant computer for KVM control from remote console Transmits uncompressed HDMI video / stereo audio / USB / RS-232 signals via one single Cat 6 / 6A / ATEN 2L-29330 cable over long distances: – Standard mode supports single view at up to 4K or dual-view up to 1080p over 100 m – Long Reach mode supports single view at up to 1080p or dual-view up to 720p over 150 m* 4 x USB 2.0 Type-A ports on the remote unit for connection to multiple USB peripherals Supports 2-channel stereo audio EDID buffer for smooth power-up and the highest quality display PC wakeup function enabled via a pushbutton through RS-232 HDCP compatible Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) DC Jack with screw-lock ensures stable and secure connection Rack mountable Download Datasheet

ATEN CE824 adopts HDBaseT 2.0 technology to transmit uncompressed HDMI video, stereo audio, USB, and RS-232 signals while supporting up to 4096 x 2160 @ 30Hz (4:4:4) on a single display / 1080p on dual displays across 100 m over a single Cat 6 / 6A cable (ATEN 2L-29330 recommended), allowing access to a distant computer for KVM control from the remote console. With Long Reach Mode enabled, the CE824 can extend 1080p HDMI source along with other signals up to 150 m.* The ease of cabling installation plus the rack mount compatibility assure a more efficient system setup. The CE824 serves as an ideal solution forapplications that require high-quality multi-signal extension and KVM control across long distances – such as control centers, banking and finance sectors, industrial warehouses, and extended workstations.

Note: 1080p @ 150 m can only be achieved via single display installation.
