 | DVI HDBaseT KVM Extender with ExtremeUSB® (1920 x 1200 @ 100m) Features and Benefits
Download Datasheet |

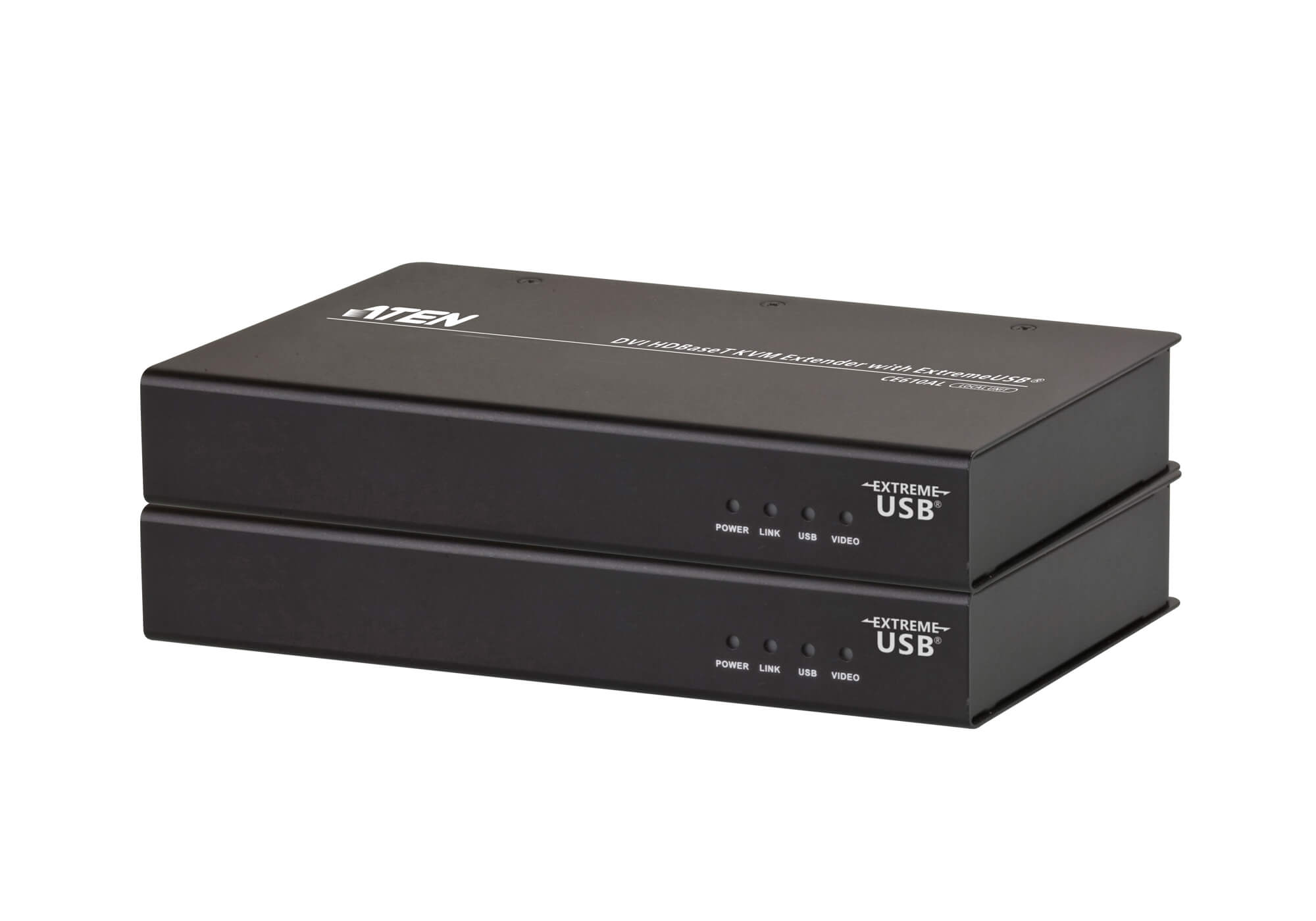

The CE610A USB DVI KVM Extender is a DVI and USB Extender that supports ExtremeUSB ® and HDBaseT technology. The CE610A can extend DVI and USB 2.0 signals up to 300 ft (100 m) from the source using a single Cat 5e/6 cable.
The CE610A is equipped with USB connectors which allow you to extend any USB device between the units. The USB functionality provides not only peripheral sharing but also the support for touch panel control and fi le transfer. The CE610A is ideal for situations where touch panel is required, such as transportation centers, medical facilities, shopping malls, industrial kiosks, and when synchronizing for files / folders between portable and desktop computers are required.
Spesifications
| Connectors | ||
| Video In | 1 x DVI-D Female (White) | N/A |
| Video Output | N/A | 1 x DVI-D Female (White) |
| Power | 1 x DC Jack | 1 x DC Jack |
| Firmware Upgrade | 1 x mini-USB | 1 x mini-USB |
| USB Port | 1 x USB Type B Female (White) | 3 x USB Type A Female (White) |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Green) | 1 (Green) |
| USB | 1 (Green) | 1 (Green) |
| Video | 1 (Green) | 1 (Green) |
| USB | USB 2.0 (Transfer Rate: Up to 40Mbps) | USB 2.0 (Transfer Rate: Up to 40Mbps) |
| Video | 1920 x 1200 @ 60Hz (100 m) | 1920 x 1200 @ 60Hz (100 m) |
| Power Consumption | DC5V:1.99W:41BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. | DC5V:3.95W:50BTU/h Note: ? The measurement in Watts indicates the typical power consumption of the device with no external loading. ? The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | ||
| Operating Temperature | 0–40°C | 0–40°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–80% RH, Non-condensing | 0–80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.62 kg ( 1.37 lb ) | 0.62 kg ( 1.37 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.79 x 2.87 cm (7.17 x 4.64 x 1.13 in.) | 18.20 x 11.79 x 2.87 cm (7.17 x 4.64 x 1.13 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
