| Key Features
|
Intel® Alder Lake-S LGA1700 CPU, 3*LAN, 6*USB3.2, 8K DP+4K HDMI , PCIe5.0 X16+PCIe4.0 X4?2*2.5”SATA bay, 600W DC IN 9-55V.

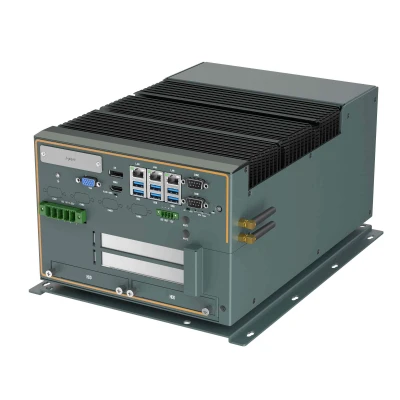

BRAV-7720-WP is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and dual PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply, high efficiency cooling solution and industrial grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicle and high-precision machine vision and other fields and applications.
Product Description:
BRAV-7720-WP is a workstation-grade Edge computing system, powered by Intel® Alder Lake-S series CPU, Q670 chipset, dual-channel DDR5 memory, and dual PCIe expansions. Flexible optional computing power, multi IO interfaces, high PFC power supply, high-efficiency cooling solution and industrial-grade reliability design, very suitable for V2X MEC, highway event detection, unmanned experiment vehicles and high-precision machine vision and other fields and applications.
Specification
| CPU+PCH | Intel® Alder lake-S 12th-Gen Core™ i9/i7/i5/i3/Pentium/Celeron LGA1700 CPU?Intel® Q670 PCH |
| Memory | 2*262-Pin SODIMM, dual channel DDR5 4800MHz, up to 64GB |
| Expansion | 1*Full size Mini PCIe (PCIeX1 + USB signal) with SIM slot, for 4G LTE modem or PCIe signal I/O module 1*Full size Mini PCIe (PCIeX1 or SATA signal), automatic detection of SATA signal and PCIe signal 1*M.2 B-Key 3052 (PCIeX1+USB signal) with a SIM slot, support 5G NR modem 1*M.2 2280 M-Key (Gen4, X4 signal, from PCH), support NVME high-speed SSD or PCIe signal module 1*PCIe X16 (Gen5, X16 signal, from CPU), support highest power consumption 450W GPU card or AI acceleration card (the length of the card must be less than 300mm) 1*PCIe X16 (Gen4 X4 signal, from PCH), support 75W consumption AI acceleration card (the length of the card must be less than 300mm) |
| Graphics | Intel® UHD Graphics, Supports DirectX 12, OpenGL 4.5?OpenCL 3.0, DP max res. 7680*4320@60Hz,HDMI max res. 4096*2160@60Hz, VGA max res. 1920*1200@60Hz, support three independent displays |
| Audio | Realtek ALC897 controller, Line out and MIC high fidelity audio, support 5.1 channel |
| LAN | 2*Intel I226V 2.5G Gig. Ethernet, PCIeX1 full bandwidth, 10M/100M/1000M/2.5Gbps; 1*Intel I219LM Gig. Ethernet, 10/100/1000Mbps, support iAMT12.0 and vPro (only Core I5/I7/I9 CPU) |
| Storge | 2*2.5 "SATA3 easy-plug SATA bays, larger capacity thickness15mm HDD, support Raid0/1; 1*M.2 2280 M-key(Gen4, PCIeX4 signal), support NVMe ultra-high speed storage; 1*Full size Mini PCIe (PCIeX1 or SATA signal) automatically detects mSATA |
| DIO | Optional 16bit DIO, TTL signal, programmable input/output |
| I/O Interface | 3*RJ45 Gig-LAN; 4*USB3.2(gen2.0 10Gbps, Type A,); 2*USB3.2(gen1.0 5Gbps, Type A); 2*RS232/422/485(via BIOS, DB9 male); 1*VGA+1*DP+1*HDMI; 1*Line out+1*Mic (3.5mm phone jack)? 2*USB2.0(pin header inside); 16bit DIO (2*10pin header inside); 1*F_Audio (pin header inside) |
| I-port | Support 16bit DIO pin header lead wire , USB2.0 or Mini PCIe and other expansion interfaces lead wire |
| LED | 1*Power LED(on power button), 1*HDD LED, 3*CPU temp LED?Red is warning , Yellow is high, Green is normal? |
| Control SW | 1*Power button w/LED, AT/ATX dip, Clear Cmos dip |
| Power Supply | DC IN 9-55V, 5-pin 7.62mm Term., with short circuit(SCP), over voltage(OVP) and over current(OCP) protection, maximum output power 600W TDP: TBD |
| Watchdog Timer | Watchdog timeout programmable via software 1 to 255 second |
| OS Support | Windows 11, Windows 10 IoT Enterprise 2021 LTSC, Ubuntu, SuSe, Red Hat Enterprise, Wind River Linux, Wind River VxWorks 7 |
| Structure | SGCC frame, Aluminum-magnesium alloy chassis, temperature control by PWM fan |
| Color | Granite gray + Black |
| Mounting | Desktop Mounting, with anti-vibration rubber pads |
| Dimension | (W*H*D)?262*374.7*178 mm |
| Net weight | TBD |
| Operating temperature | -20??60?, airflow |
| Storage Temperature | -40°C~85°C |
| Storage Humidity | 10~95%@40°C, Non-condensing |
| Vibration | 5grms/5~500Hz/random/in working (SSD); 1grms/5~500Hz/random/in working (HDD) |
| Shock | 50g peak acceleration(11ms duration)(SSD); 20g peak acceleration(11ms duration)(HDD? |
| Certification/EMC | CE/FCC Class A |
